Three Way Divertor valve - PE88M+SM90
Verified by manufacturer 22 days ago
PE88MEC1+SM90.230 - 1” Female / 230 V ON/OFF
PE88MEC1+SM90.230 - 1” Female / 230 V ON/OFF

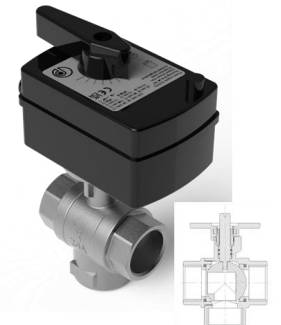

Three way, divertor motorized valve.
Application
Developed to divert the heating systems and domestic hot water production systems.
Description
The PE88M+SM90 diverter motorized valve (three-way ball valve "L" PORT) has been developed to divert the heating systems and domestic hot water production systems.
Features and benefits:
- Actuators available in 230 V or 24 V.a.c.
- Operating time 30 seconds.
- Control ON/OFF.
- Complies with the essential requirements of the following directives: CEE 89/336 - 73/23 - 93/68; EU 2002/95 / EC; EU 2002/96 / EC (ROHS and WEEE).
- The structure is made of self-extinguishing plastic (UL 94 VO) to high mechanical strength (30% FV polycarbonate cover and base, 60% FV polyamide transmission plates).
General information
Color | Silver Black |
Finish | Plated |
Material | Brass Rubber Polymer EPDM |
Shape | Other |
Length | 134.5 mm |
Width | 73 mm |
Height | 169 mm 179 mm 192 mm |
Warranty description | Five year |
Uniclass | |
CAWS | S90/620 Valves generally T90/425 Valves generally T90/435 Motorized valves |
Specification data - Motor-driven valve actuators
Actuator type | Electric. |
Torque | 10 Nm. |
Stroke | 90°. |
Running time | 30 s. |
Operation | On/ off. |
Electrical supply | 230 V.Manufacturer guidance±10% (50–60 Hz). |
Ancillaries | Auxiliary switches.Guidance for specification option: Auxiliary micro switch: 10 (2) A 250 VAC EN 61058-1. |
Connection sizes | 1” female. |
Valve | PE88M+SM90 diverter motorized valve (three-way ball valve "L" PORT). |
Ingress protection | IP65. |
Weight | 0.45 kg. |
Operating temperature range | 5°C to 100°C. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Italy |
Material | Brass Rubber Polymer EPDM |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
