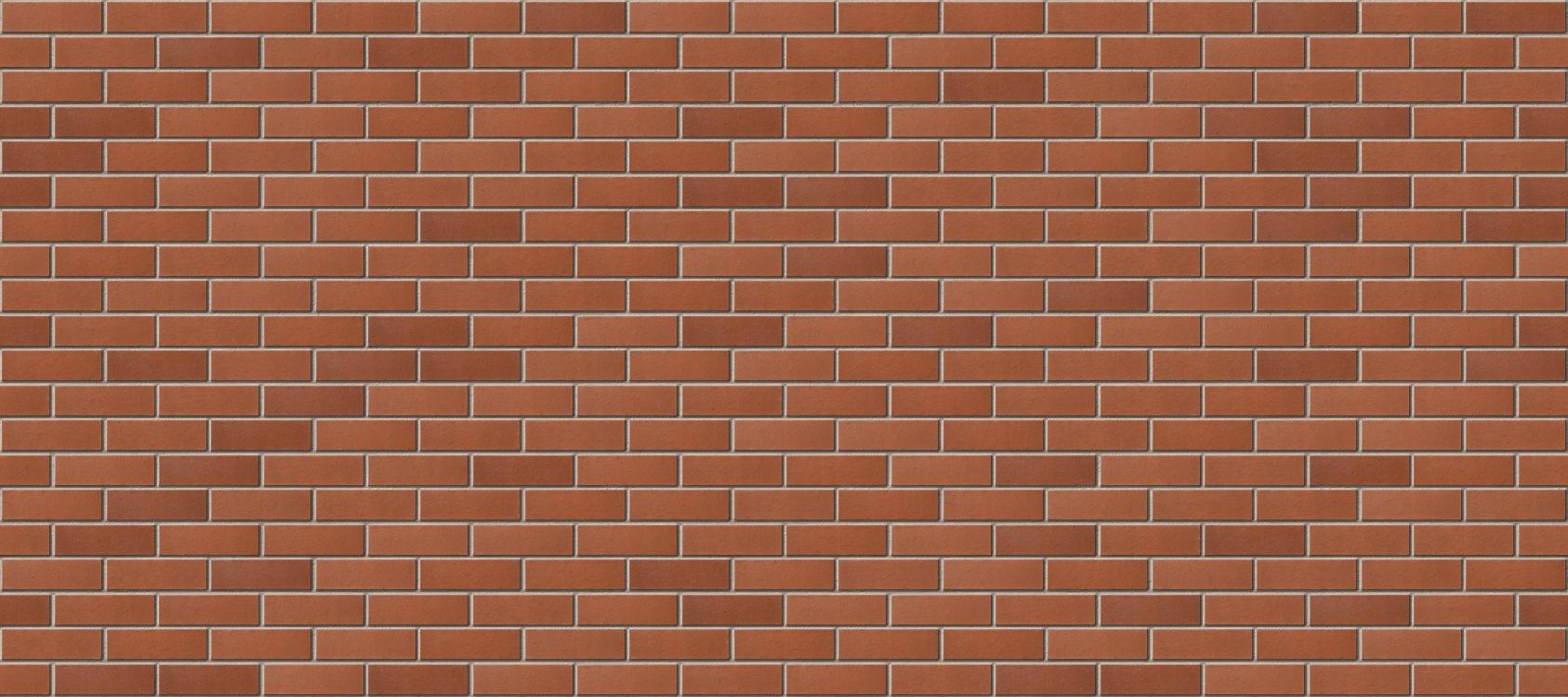

Throckley Smooth Red - Clay brick

Verified by manufacturer 3 months ago

Ibstock Brick Ltd

Smooth facing brick. Manufactured to BS EN 771-1.

Jump to:
BOS
+44 (0)1530 261999 Website

Application

Brickwork applications.

Description

Smooth facing brick. Manufactured to BS EN 771-1.


Features and benefits:

  • Produced in Throckley factory.
  • Brick voids: 25–30%.
  • Wirecut extruded.

General information

Color

Red

Finish

Smooth

Material

Clay

Shape

Rectangle

Length

215 mm

Width

102 mm

Height

65 mm

Warranty description

60 year

Guidance for specification option:

60 years in buildings or 20 years in boundary walls. Excludes paving, steps and ramps.

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

Q10/130 Clay brick

Q10/20 Clay brick

F10/5 Facing brickwork

F10/110 Clay facing brickwork

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Work size (length x width x height)

215 x 102 x 65 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

60 N/mm².

Category

I.

Durability designation

F2.

Density

-

Gross dry

1560 kg/m³.

Net dry

2200 kg/m³.

Tolerance

D1.

Water absorption

10%.

Configuration

Vertically perforated.

Thermal conductivity

1.13 W/m·K.

Thermal resistance

0.092 m²·K/W.

Water vapour permeability

5/10 µ.

Bond strength

0.15 N/mm².

Reaction to fire

Class A1.

Active soluble salts

S2.

CompressiveStrength

60 N/mm².

Weight

2.2 kg.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
