Timber French Doors

Verified by manufacturer 2 days ago

DS2 Inward Opening French Door (Traditional)

George Barnsdale Variant:
Product certifications:
  • Secured By Design

    Secured By Design

    Certificate type

  • PAS 24

    Certificate type

  • PAS 24

    Certificate type

Timber French doors.

Jump to:
+44 (0)1775 823000 Website

Application

Suited to traditional and contemporary properties.

Description

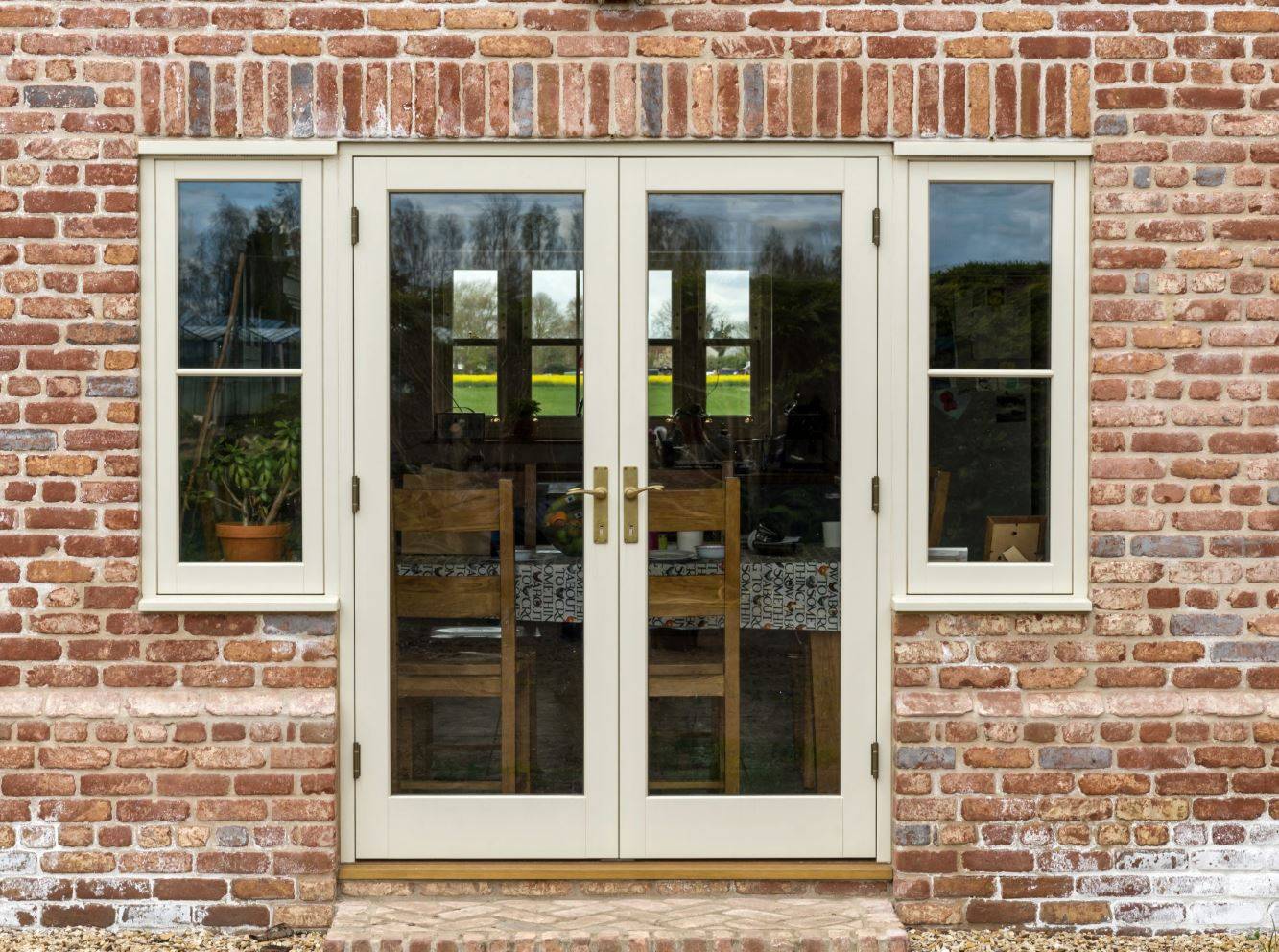

Timber French doors, available opening inwards or outwards, designed to provide an effortless link between the home and garden with more natural light.

Features and benefits:

  • Available in a wide range of glazing types and finishes.
  • Weather rating: Tested to exposure category 2000.
  • Thermal performance: A rated as standard. Triple glazed options available.
  • Adjustable hinges to ensure optimal fitting.
  • Outward-opening French doorsets are fitted with a restrictor to limit opening to 90 degrees, to prevent damage from the door being blown in the wind.
  • Environmentally friendly designs, materials and processes.
  • Available as a one or two-handle option.
  • Secured By Design and PAS 24 compliant.
  • Security laminated glazing is available for improved acoustic performance and safety.
  • Dual seal design provides excellent draught proofing.

General information

Color

Other

Guidance for specification option:

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Finish

Painted

Stained

Material

Timber

Glass

Wood

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Ten year: Glazing unit, weather seals, hardware, and paint finish.

Please note: Ten year warranty is only available on painted finish in the traditional range.

Other

Guidance for specification option:

The historic range only has a very limited warranty. Consult manufacturer for details.

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/480 Doorsets

L20/420 Wood doorsets

L20/410 Wood doorsets

L20/55 Doorsets

SKU Code

DS2

Specification data - Wood doorsets

Classification data

Standard

To BS 644.

Wood in joinery standard

To BS EN 942.

Configuration

Entrance door - traditional.

Guidance for specification option:

59 mm sash.

Entrance door - traditional slim.

Guidance for specification option:

44 mm sash.

Entrance door - traditional plus.

Guidance for specification option:

68 mm sash.

Doorset size

-

Manufacturer guidance

Insert size requirement.

Performance

-

Acoustic performance

Manufacturer's standard.

Manufacturer guidance

Certain options may affect the availability of other options and the performance levels. Consult manufacturer for details.

Strength and durability

To BS 6375-2.

Thermal

1–1.4 W/m2K.

Manufacturer guidance

Certain options may affect the availability of other options and the performance levels. Consult manufacturer for details.

Intruder resistance

-

Minimum requirement

Not required.
To Secured by Design standard/ PAS 24.

Guidance for specification option:

When required by Building Regulations Document Q.

Frame

-

Material

Manufacturer's standard (as specified below).

Species

Engineered redwood.
Engineered grandis.
European oak.
Accoya.

Appearance class

J40.

Guidance for specification option:

J10 for glazing beads, drips and similar. J40 or better for all other members.

Threshold

Not required.
Standard.
Standard - low threshold.
High performance.
High performance - low threshold.
With waterbar.
With drop down seal.
Extended - low threshold.
High performance - extended.

Perimeter seals or inserts

Not required.
Weatherseal.

Finish

George Barnsdale paint system.

Guidance for specification option:

Four coats on opaque/ three coats on translucent.

Colour

Specify colour below.

External

-

Manufacturer guidance

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Internal

As external.
Other.

Guidance for specification option:

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Frame accessories

Not required.
Trickle ventilator.

Guidance for specification option:

Consult manufacturer for position and colour details.

Head drip.
Transom drip.
DS2 hinge restrictor - closer.

Door leaf

-

Thickness

Manufacturer's standard.

Appearance class

J40.

Guidance for specification option:

J10 for glazing beads, drips and similar. J40 or better for all other members.

Species

Engineered redwood.
Engineered grandis.
European oak.
Accoya.

Finish

George Barnsdale paint system.

Guidance for specification option:

Four coats on opaque/ three coats on translucent.

Colour

-

External

-

Manufacturer guidance

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Internal

As external.
Other.

Guidance for specification option:

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Glazing

-

Type

Factory glazed, traditional drained and ventilated.

Guidance for specification option:

Glazing unit: To meet performance specification. Double glazed as standard. Triple and single glazed options available.

Glazing styles: Security laminated glass, stained and leaded glass are available. See glazing style options guide for further details.

Beading

-

Type

As frame profile.
Standard.
Pencil round.
Ovolo.

Manufacturer guidance

Appearance class: J10.

Door accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Planted stops

-

Appearance class

J40.

Guidance for specification option:

J10 for glazing beads, drips and similar. J40 or better for all other members.

Hardware

Butt hinge.
Concealed hinge.

Architraves

-

Wood appearance class

To BS EN 942, Class J40.

Guidance for specification option:

J10 for glazing beads, drips and similar. J40 or better for all other members.

Accessories

Not required.
Smart systems.

Guidance for specification option:

Multiple options available, consult manufacturer for details.

FSC timber

FSC Chain of Custody.

Door frame profile

Standard in.
Square.
Ovolo.
Barnsdale.

Manufacturer guidance

Available with standard or flush connections.

Frames are available in thicknesses of 94 or 81 mm.

Opening

Open in (single door) - French.
Open in (double door) - French.

Sash

As frame profile.
Standard.
Flush.

Handles

Original.
Classic.
Cottage.
Mitre.
Regent.
Foundry.
Modern.
Period.
Custom.

Manufacturer guidance

A range of handle heights and furniture colours are available. Consult manufacturer for details and insert requirements.

Locking

Standard.

Guidance for specification option:

Security espagnolette lock and 3* security cylinder lock.

Autolock.
Heritage.
Electronic lock.

Guidance for specification option:

For access control system.

Escape hardware.

Manufacturer guidance

Cylinder keying, master keying and slave locking are available. Consult manufacturer for details.

Air permeability

To BS 6375, Class C.

Watertightness

To BS 6375, 100 Pa.

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Timber
Glass
Wood

Product certifications

Secured By Design

Secured By Design

Secured by Design

PAS 24

PAS 24

Enhanced Security Doors

PAS 24

PAS 24

Enhanced Security Windows
