Timber Sliding Sash Windows

Verified by manufacturer 4 days ago

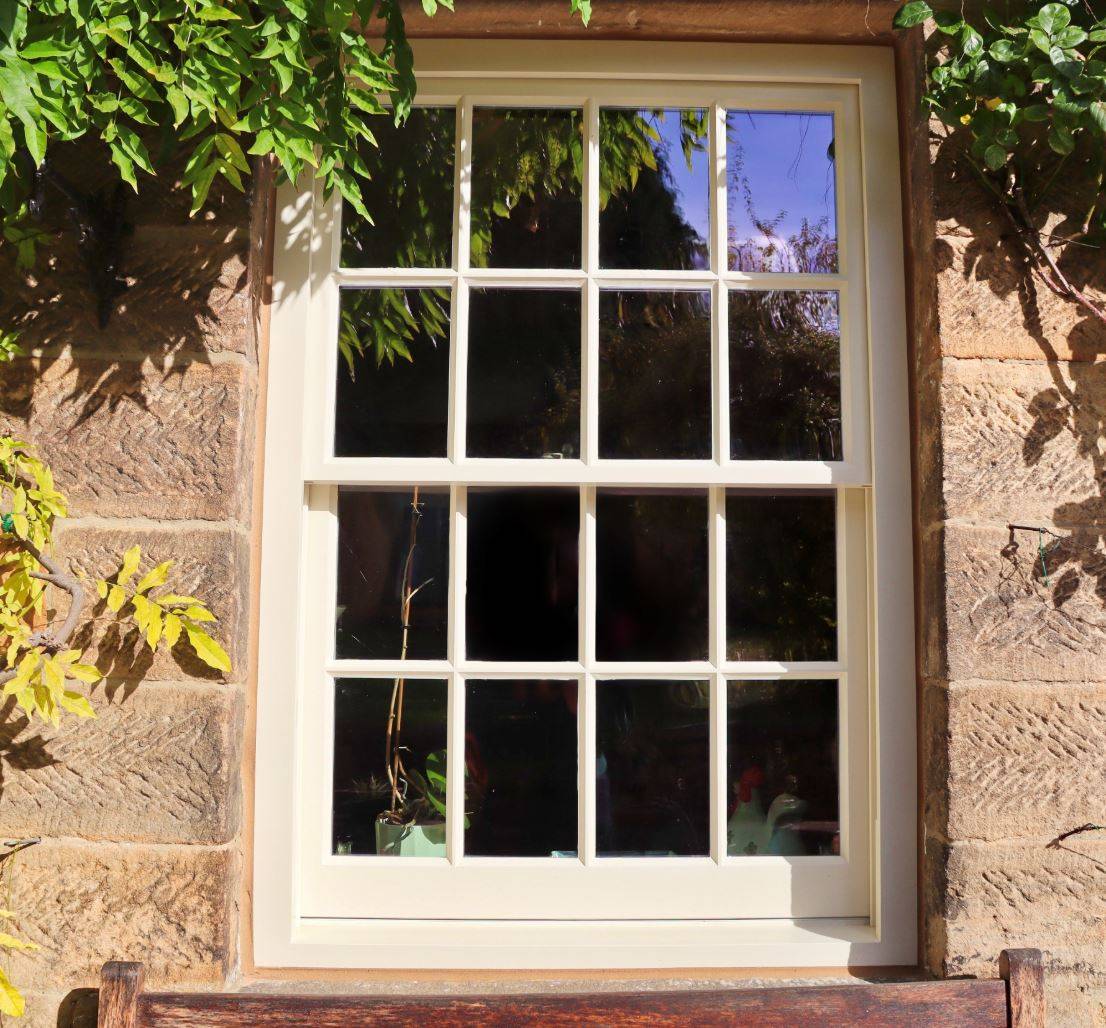

S1 Box Sliding Sash Timber Window (Traditional)

George Barnsdale Variant:
Product certifications:

  • PAS 24

    Certificate type

  • Secured By Design

    Secured By Design

    Certificate type

  • UKAS

    UKAS

    Certificate type

Timber sliding sash windows.

Jump to:
+44 (0)1775 823000 Website

Application

  • Box sash: Suitable for listed buildings and period properties. Suitable for Georgian, Victorian and Edwardian homes and commercial properties throughout the UK.
  • Spiral balanced sash: Suitable for more modern, contemporary homes or space-saving projects.

Description

Timber sliding sash windows available in two versions:

  • Box sash, which utilizes a traditional cord, weight and pulley system, providing a completely authentic sash window.
  • Spiral balanced sash, which uses a concealed spring-loaded mechanism rather than the traditional cord weight and pulley system. Since they do not require a box, the frame of a spiral balance sash is slimmer.

Features and benefits:

  • Available in a choice of window layouts, with a choice of sash horns, window bars and elegant hardware, and in a wide range of colours.
  • Weather rating: Tested to exposure category 2000.
  • Thermal performance: A rated as standard. Triple glazed options and vacuum glass available.
  • Accoya-lined for high durability where required.
  • Environmentally friendly designs, materials and processes.
  • Good acoustic performance.
  • Secured By Design and PAS 24 compliant.
  • Astragal bars available in a range of widths and styles.
  • Dual seal design (patented sash seal) provides excellent draught proofing.

General information

Color

Other

Guidance for specification option:

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Finish

Painted

Stained

Material

Timber

Glass

Wood

Shape

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Ten year: Glazing unit, weather seals, hardware, and paint finish.

Please note: Ten year warranty is only available on painted finish in the traditional range.

Other

Guidance for specification option:

The historic range only has a very limited warranty. Consult manufacturer for details.

Uniclass

Pr_30_59_98_96 Wood window unitsPrimary

CAWS

L10/10 Wood windows

L10/210 Wood windows

SKU Code

S1

Specification data - Wood window units

Classification data

Standard

To BS 644.

Dimensions and configurations

Box sash - traditional.

Manufacturer guidance

Insert size requirement.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1, 2000 Pa.

Air permeability

To BS EN 12207, Class 4.

Watertightness

To BS EN 12210, Class C5.

Resistance to wind load

To BS EN 12208, Class 7A.

Durability

-

Operation and strength characteristics

To BS 6375-2.

Safety

-

Security level

Not required.
To Secured by Design standard/ PAS 24.

Guidance for specification option:

When required by Building Regulations Document Q.

Environmental

-

Acoustic performance rating

30–42 dB.

Manufacturer guidance

Certain options may affect the availability of other options and the performance levels. Consult manufacturer for details.

Thermal

-

Whole window U-value

0.9–1.4 W/m2K.

Manufacturer guidance

Certain options may affect the availability of other options and the performance levels. Consult manufacturer for details.

British Fenestration Rating Council Window Energy Rating

B/ A+.

Guidance for specification option:

Triple glazed options will improve rating.

Manufacturer guidance

Certain options may affect the availability of other options and the performance levels. Consult manufacturer for details.

Frame

-

Standard

To BS EN 942.

Profile

Type A.
Type B.
Type C.
Type D.
Type E.
Type F.
Type G.
Other.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

Available with standard or flush connections.

Wood species

Engineered redwood.
Engineered grandis.
European oak.
Accoya.

Chain of custody

FSC.

Appearance class

J40.

Guidance for specification option:

J10 for glazing beads, drips and similar. J40 or better for all other members.

Finish as delivered

George Barnsdale paint system.

Guidance for specification option:

Four coats on opaque/ three coats on translucent.

Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges.

Dual colour options also available.

Consult manufacturer and insert requirements.

Ventilator

Not required.
Trickle ventilator.

Guidance for specification option:

Consult manufacturer for position and colour details.

Frame horns

Not required.
Top.
Top and bottom.

Glazing or infill

-

Requirements

Factory glazed, traditional drained and ventilated.

Guidance for specification option:

Glazing unit: To meet performance specification. Triple and vacuum glazed options available, consult manufacturer for details.

See glazing style options guide for further details.

Hardware

Cord, weight and pulley system.

Manufacturer guidance

A range of furniture colours are available. Consult manufacturer for details and insert requirements.

Operation

-

Type

Manual.

Fixing features

Manufacturer's standard.

Manufacturer guidance

In accordance with George Barnsdale installation manual.

Design

Square bay.
Angled bay.
Bow.
Bay - arched top.
Bay - internal arch.
Bay - arch fillet.

Opening

Sliding.
Fixed.

Handles

Not required.
Sash eye.
D-handle.

Manufacturer guidance

A range of furniture colours are available. Consult manufacturer for details and insert requirements.

Locking

Locking fasteners.

Glazing bead

Manufacturer's standard.

Light transmission

81% (as standard).

Accessories

Not required.
Draught strip.
Sash stops.
Cill extension.
Window board groove.
Glazing bars.

Manufacturer guidance

Consult manufacturer for further details and insert requirements.

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Timber
Glass
Wood

Product certifications

PAS 24

PAS 24

Enhanced Security Windows

Secured By Design

Secured By Design

Secured by Design

UKAS

UKAS

General Performance Windows: BS 644: 2012
