Application

Suitable to redirect vehicles on to their intended path and prevent overrun of vulnerable areas adjacent to the carriageway.

Description

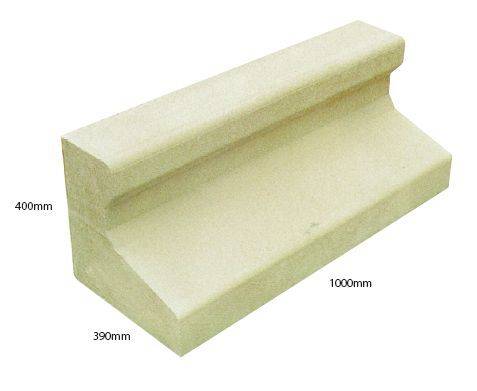

A precast concrete high containment kerb.


Features and benefits:

  • High containment kerb system designed to redirect vehicles on to their intended path and prevent overrun of vulnerable areas adjacent to the carriageway.
  • This simple, cost-effective system offers significant benefits to engineers involved in highway design and road safety.

General information

Color

Black

White

Yellow

Other

Manufacturer guidance

As per manufacturer and includes:

  • Natural concrete.
  • Black.
  • White.
  • Yellow.

Finish

-

Manufacturer guidance

As per manufacturer and includes polyurethane paint.

Material

Concrete

Shape

Rectangle

Length

1000 mm

Width

400 mm

Height

390 mm

Uniclass

Pr_25_93_45_21 Concrete safety kerbsPrimary

CAWS

Q10/10 Precast concrete

Q10/115 Precast concrete safety kerbs

Specification data - Concrete safety kerbs

Physical properties

-

Colour

Natural concrete.

Black.

White.

Yellow.

Finish

Polyurethane paint.

Guidance for specification option:

Can be supplied with two-pack polyurethane paint applied surface coatings.

Profile

-

Designation

Drop kerb left hand.

Drop kerb LH.

Drop kerb RH.

Internal Angle LH 90 Degree.

Internal Angle RH 90 Degree.

Quadrant 90 degree.

Dimensions

400 mm x 390 mm.

Weathering resistance

≤1.0 kg/m² as a mean with no individual value >1.5 kg/m² (freeze thaw durability).

Guidance for specification option:

It should be appreciated that with all products weathering and site conditions can cause shade variation to appear across the surface of individual units. This does not in any way affect the performance of the units and any such variation will diminish over a period of time as the product matures.

Abrasion resistance

≤23 mm (Wide Wheel Abrasion Test).
