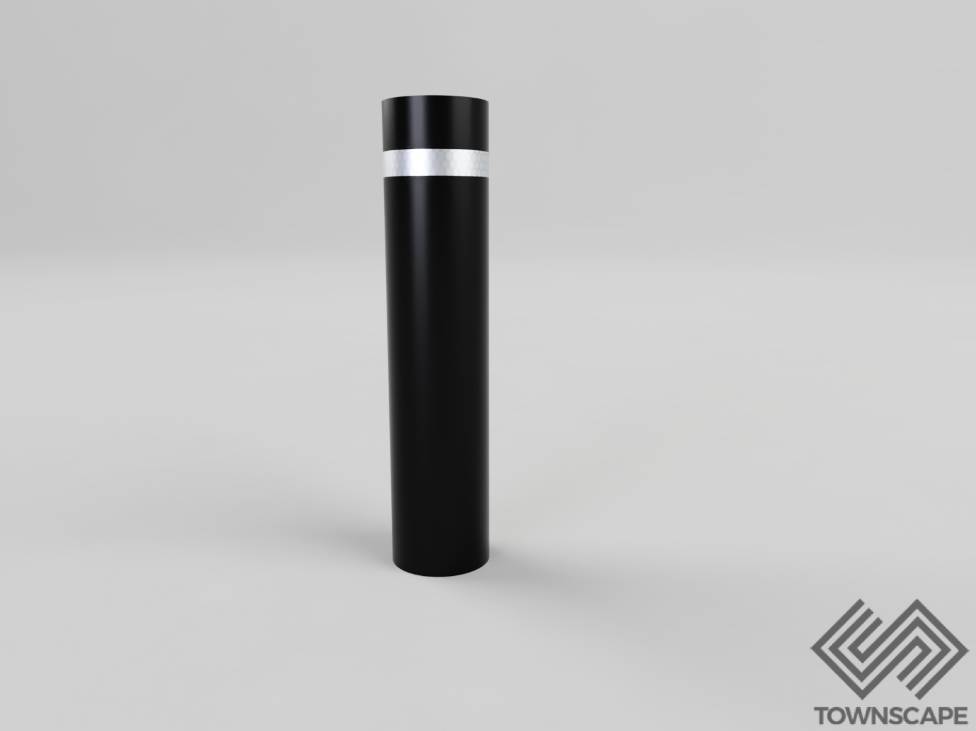

Townscape PAS 68 Bollard CT30SH Shallow Mount N2 - Hostile Vehicle Mitigation Bollard
Verified by manufacturer 3 days ago
High security bollard designed to mitigate vehicle attacks.
Application
Counter terror bollard suitable for use as a hostile vehicle mitigation measure designed to protect public spaces from vehicle attacks.
Description
CT30SH N2 mild steel PAS 68 counter terror bollard - 219 mm with integral re-bar cage.
The CT30SH N2 is a shallow foundation, high security bollard designed to mitigate a vehicle attack at 48 kmph. The normal spacing for bollards will be 1200 mm. A reinforced foundation design will be required for this product.
Features and benefits:
- PAS 68:2010 tested.
- Bellow ground fix.
- Counter terror bollard.
- Additional cost sleeve options are available if required.
Speed rating:
- 30 mph test - fixed bollard V/7500(N2)/48/90.1.1/0.0.
General information
Color | Beige Black Blue Brown Cream |
Finish | Galvanized Powder-coated |
Material | Steel Stainless steel Polymer |
Shape | Circle |
Length | 219 mm |
Width | 219 mm |
Height | 1400 mm |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Specification data - Carbon steel bollards
Standard | In accordance with PAS 68. |
Duty | Heavy. |
Dimensions | |
Size and profile | ⌀219 mm. |
Height | 1000 mm.Manufacturer guidanceAbove ground. |
Length below ground | 400 mm. |
Post top | Flat. |
Post base | Flat. |
Finishes | |
Applied finish | Galvanized.Powder-coated. |
Colour | Manufacturer guidanceDependent on finish. Consult manufacturer and insert requirements. |
Accessories | Not required.Band on sleeve.Removeable bollard.Wessex cycle rack single.Wessex cycle rack double.Guidance for specification option: Available with stainless steel sleeve only. Sheffield cycle rack single.Guidance for specification option: Available with stainless steel sleeve only. Sheffield cycle rack double.Guidance for specification option: Available with stainless steel sleeve only. |
Bollard Sleeve Topping | Not required. Stainless steel premium diamond sleeve. Stainless steel premium diamond sleeve mitred. Polymer senator sleeve. Polymer statesman sleeve. |
Speed rating | 30 mph test - fixed bollard V/7500(N2)/48/90.1.1/0.0. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Stainless steel Polymer |
Expected Life | 25 year |
Literature
PAS 68 Bollard Specification Sheet CT30SH N2 VED0054
