Townscape PAS 68 Counter Terror Concrete Block Planter Ultra Shallow Mount - Hostile Vehicle Mitigation Planter
Verified by manufacturer 20 days ago
Artisan Precast Concrete Exposed Cleehill Dark Grey
Artisan Precast Concrete Exposed Cleehill Dark Grey
Precast concrete planter with 15 mm chamfers to all edges.
Application
Hostile vehicle mitigation measures designed to protect public spaces from vehicle attacks.
Description
Counter terror block vehicle defence barrier planter with 15 mm chamfer edges as standard.
Features and benefits:
- PAS 68:2010 tested.
- Block vehicle defence barrier.
- 15 mm chamfers to all edges.
- A range of artisan concrete finishes.
- Optional timber deck cladding and integrated LED lighting.
Speed rating options:
- 30 mph test – single block: V/7500/N2/48/90/6.6/0.0.
- 40 mph test – single block: V/7500/N2/64/90/12.3/2.2.
Tested block size 1490 x 990 x 600 mm.
General information
Color | White Grey Beige Brown Cream |
Finish | Smooth Textured Guidance for specification option: Exposed aggregate. |
Material | Precast concrete Timber |
Shape | Rectangle |
Length | 1490 mm 2000 mm 2500 mm 3000 mm 1790 mm |
Width | 990 mm 1525 mm |
Height | 1000 mm |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards Q31/292 Prefabricated plant containers Q10/25 Concrete block Q10/150 Concrete block |
Specification data - Concrete and reconstituted aggregate plant containers
Material | Concrete. |
Colour | Cleehill dark grey. |
Shape | Rectangle. |
Dimensions | 1490 x 990 x 1000 mm.2000 x 990 x 1000 mm.2500 x 990 x 1000 mm.3000 x 990 x 1000 mm.1790 x 1525 x 1000 mm. |
Drainage holes | Manufacturer's standard.Manufacturer guidanceConsult manufacturer for further information. |
Finish | Exposed aggregate. |
Standard | In accordance with PAS 68. |
Speed rating | 30 mph test – single block: V/7500/N2/48/90/6.6/0.0. 40 mph test – single block: V/7500/N2/64/90/12.3/2.2. |
Edge | 15 mm chamfered edge. |
Timber | Not required. Hardwood deck cladding to all sides. |
Accessories | Not required. Integrated LED lighting. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Precast concrete Timber |
Manufacturing plant location | |
Recyclability | 100% |
Expected Life | 25 year |
Literature

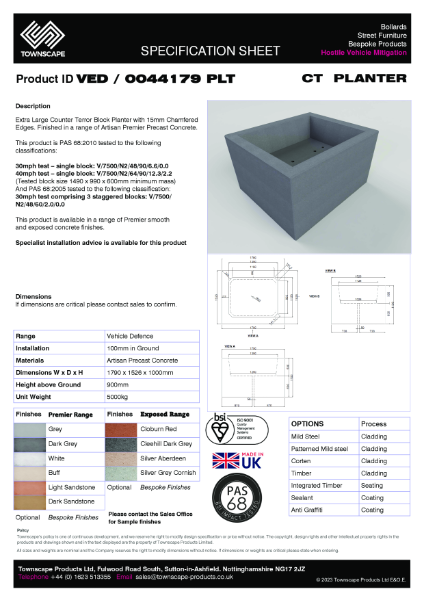

Townscape 1490x990x1000 HVM Concrete Planter Specification Sheet VED0044PLT
Townscape 3000x990x1000 HVM Concrete Planter Specification Sheet VED0044PLT300
Townscape 1800x1525x1000 HVM Concrete Planter VED0044179PLT
