Traditional Tilt & Turn Timber Windows – Tilt & Turn

Name: Traditional Tilt & Turn Timber Windows – Tilt & Turn
Brand: TRC Windows
SKU: 7XsbCXfF1BjcT2iTVnyJzp

Verified by manufacturer 2 months ago

TRC Windows

Third party certifications:

CHAS
Certificate type
Constructionline
Certificate type
Certificate of Compliance
Certificate type
Health & Safety Accreditation
Certificate type
UL Certified
Certificate type

Traditional tilt and turn timber windows.

Jump to:

BOS

+44 (0) 1858 469225 Website

Application

Suitable for high-rise developments.

Description

Traditional tilt and turn timber windows.

Features and benefits:

These windows provide a lavish operable sash size of up to 3 m in height, conveying grandeur and natural light in abundance.
Discreet internal beading aids both aesthetics and security, and they hold Secured by Design (SBD) approval.
They are inward opening and side hinged, with the option of tilt-only hinging.
Double and triple glazed options are available as standard, with a choice of glass types, frame timbers and colours.
They are thoroughly tested for thermal, acoustic and weather containment plus wind resistance.
FSC certified.

Guarantees:

TRC Contracts Ltd offers robust guarantees on all TRC window ranges we supply and install. The following general terms apply on all new windows:

Expected Lifespan: All our windows are designed with a 60-year service life guarantee.
Manufacturing and Material Defects: 10-year guarantee.
Finishes: The standard three-coat opaque finished joinery is guaranteed for 10 years, and the stain finishes are guaranteed against blistering or flaking for six years.
Seals: The seals on double-glazed units are guaranteed for ten years (from the date of delivery).
Ironmongery: Functional failure is guaranteed on ironmongery for two years.

General information

Color	Black Brown Cream White Clear Manufacturer guidance Multiple options available. RAL classic range.
Finish	Painted Guidance for specification option: Applied factory finish using water based micro-porous satin paint.
Material	Timber
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_98_96 Wood window unitsPrimary
CAWS	L10/10 Wood windows L10/210 Wood windows

Specification data - Wood window units

Standard	To BS EN 6375-1, EN ISO 10077 and ISO 9001.
Third-party certification	FSC Certified and Secured By Design (SBD) Certified.

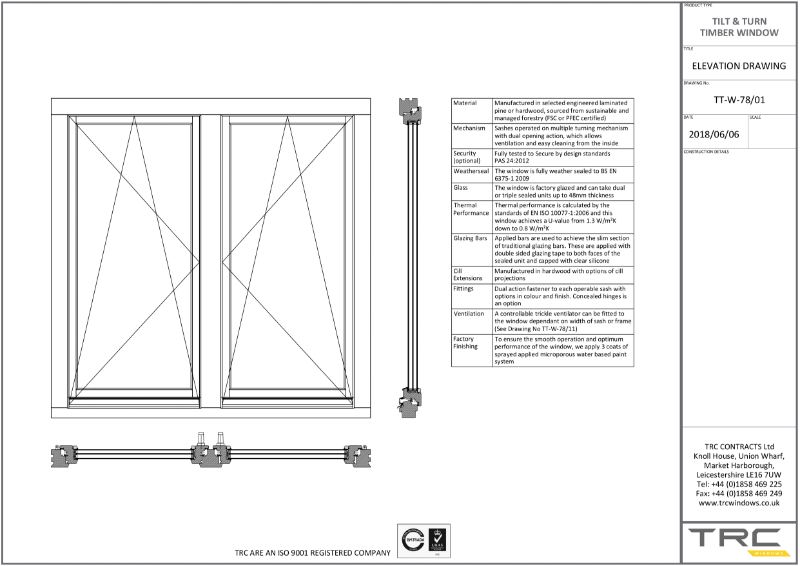

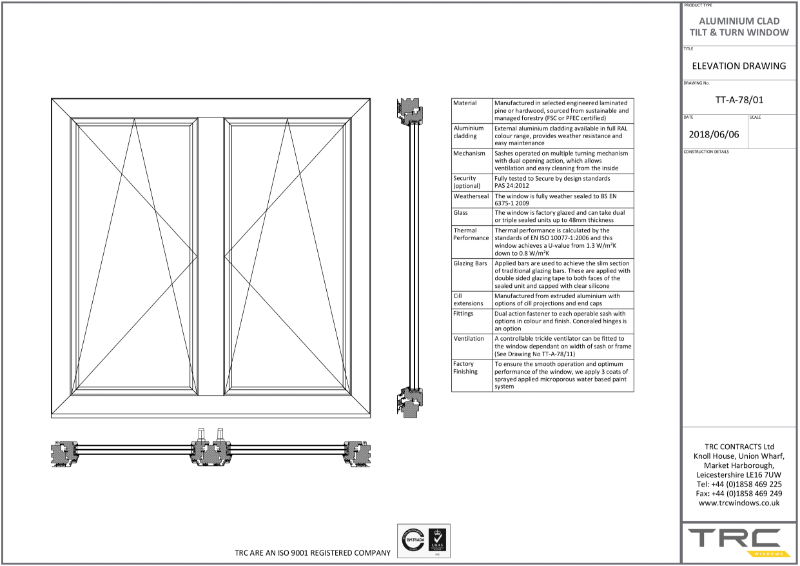

Dimensions and configurations	As drawing. Guidance for specification option: Insert reference. As schedule. Guidance for specification option: Insert reference.
Product performance	-
Weather performance	-
UK exposure category	To BS 6375-1, 2000 Pa.
Air permeability	To BS 6375-1, Class 4.
Watertightness	To BS 6375-1, Class 9A.
Resistance to wind load	To BS 6375-1, Class A5.
Durability	-

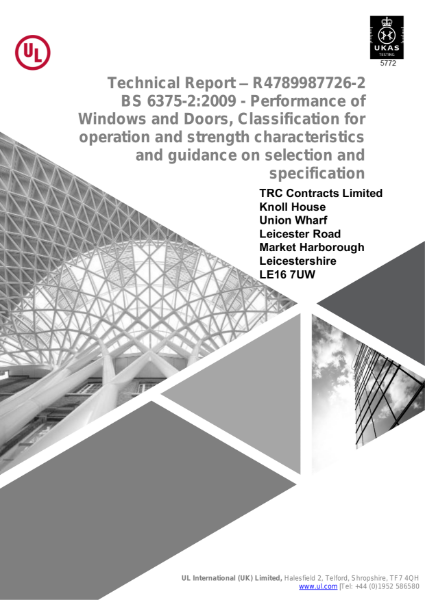

Operation and strength characteristics	To BS 6375-2.
Safety	-

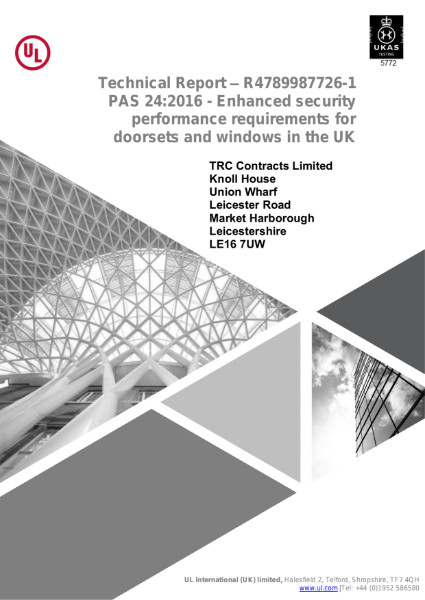

Security level	To PAS 24.
Environmental	-
Background ventilation	Available.
Acoustic performance rating	To BS EN ISO 717-1, 51 dB.
Thermal	-
Whole window U-value	0.8 W/m2K. Guidance for specification option: Triple glazed. 1.2 W/m2K. Guidance for specification option: Double glazed.
British Fenestration Rating Council Window Energy Rating	A.
Frame	-
Profile	78 x 78 mm. Guidance for specification option: As standard. 92 x 78 mm. Guidance for specification option: Enhanced thermal performance.
Wood species	Engineered Accoya. Engineered European oak. Engineered hardwood. Engineered redwood. Guidance for specification option: As standard.
Appearance class	For opaque finishing: to BS EN 942, J10 for glazing beads, drip mouldings and the like. J40 or better for all other members.
Finish as delivered	Factory finished.
Preservative treatment to wood components	Preservative Treated.
Ventilator	Trickle ventilator, EA 1700, 4400, 5000 mm² .
Frame horns	Not required.
Glazing or infill	-
Requirements	Double glazed, 4/16/4 low-E. Guidance for specification option: As standard. Triple glazed 4 low-E /18/4/18/4 low-E.
Hardware	SIEGENIA TITAN AF.
Operation	-
Electrical supply	Electric actuators.

Configurations	Direct glazed. Direct glazed over direct glazed. Direct glazed over tilt and turn. Double direct glazed. Double tilt and turn. Side tilt and turn next to direct glazed. Tilt and turn. Tilt and turn floating mullion. Tilt and turn over direct glazed. Tilt and turn over tilt and turn. Show more
Frame profile moulding	25 mm.
Sash	78 x 78 m.
Sill projection	50 mm. 60 mm. 70 mm. 80 mm. 90 mm. 100 mm. 110 mm. Show more
MoistureContent	12–19%.
Perimeter spacer bars	White. Guidance for specification option: As standard. Silver. Black.
Glazing beads	Internally beaded.

Sustainability data

Contains Red List materials	No
Country of material origin	Latvia
Country of product manufacture	Lithuania
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.5 kg CO₂ eq/kg Self declared
Recyclability	Yes. Manufacturer guidance Recyclable parts of product timber, aluminium, glass, gaskets.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
