Treesafe - CFA Piling & Concrete Raft Foundations

Verified by manufacturer 11 months ago

Non-Voided

Abbey Pynford Limited Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • Certificate of Approval

    Certificate of Approval

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

A patented foundation system that allows construction close to or within a tree Root Protection Area (RPA).

Jump to:
01442 212 112 Website

Application

Suitable for use in residential and commercial applications.

Description

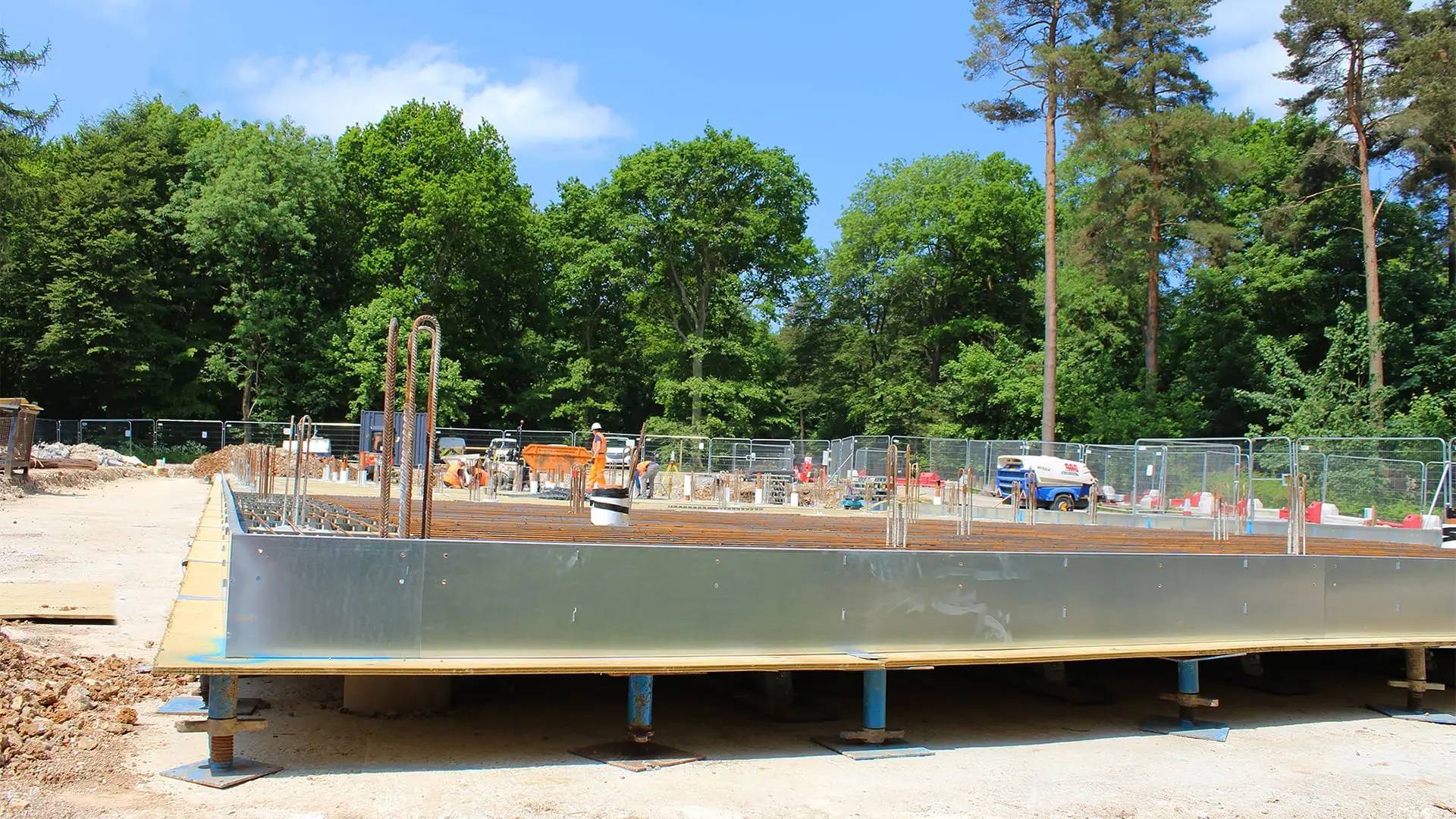

Treesafe is a patented foundation system that allows

construction close to or within a tree Root Protection Area (RPA). It provides the opportunity to increase the yield of a site by allowing an increase in the footprint of the structure and/ or adding additional plots to a development.


Features and benefits:

  • Approved by Arboriculturists.
  • Prevents damage to tree roots in a number of ways.
  • Can support a range of piling techniques, depending on ground conditions.
  • Hand augering techniques are used to identify any roots that may conflict with the proposed pile locations.
  • Pile design & location can be adjusted in-house to accommodate roots.
  • Potential damage to tree roots is minimised with lightweight piling rigs.
  • Treesafe is a version of our Housedeck and Comdeck systems, both are BBA certified and all major warranty provider approved: NHBC, Premier Guarantee and LABC.

General information

Color

Other

Finish

Galvanized

Other

Material

Steel

Stainless steel

Concrete

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_20_05_15_72 Reinforced concrete raft foundation systemsPrimary

CAWS

D30/130 Piles

D20/166 Tree root barriers

Specification data - Reinforced concrete raft foundation systems

Substructure formwork

Engineered working surface.

Guidance for specification option:

Formwork accessories: Consult manufacturer and insert requirements or omit.

Blinding

Guidance for specification option:

Blinding will be designed depending on the ground conditions around the trees. Consult manufacturer and insert requirements or omit.

Underlay

-

Underlay accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Reinforcement

-

Type of reinforcement

Steel reinforcement.

Reinforcement accessories

Prefabricated continuity reinforcement strips.

Concrete

Reinforced concrete slab.

Cast-in accessories

Not required.

Steel brick support unit (BSU).

Guidance for specification option:

  • Acts as edge formwork system for the raft slab, and as a permanent support system for the outer skin of cavity brickwork.
  • Consists of two components:
  1. Preformed, pre-galvanized mild steel sheet.
  2. Stainless steel tangs (anchors).

Piling

CFA piling.

Guidance for specification option:

  • Piles installed once the working surface is cured.
  • Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Alcumus ISO 14001: 2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

Alcumus ISO 45001: 2018

ISO 9001 Quality Management

ISO 9001 Quality Management

Alcumus ISO 9001: 2015

BBA Agrément Certificate

BBA Agrément Certificate

BBA Technical Approval

QA Certificate

QA Certificate

Builders Profile - Abbey Pynford

CHAS

CHAS

CHAS

CHAS

CHAS

CHAS Elite

Constructionline Gold

Constructionline Gold

Constructionline Gold

CQMS

CQMS

CQMS

QA Certificate

QA Certificate

Federation of Piling Specialists Membership

Certificate of Approval

Certificate of Approval

LABC Housedeck Foundation System

Rospa Safety Charity

Rospa Safety Charity

RoSPA Gold

smas WORKSAFE

smas WORKSAFE

Smas Worksafe

Literature

Treesafe - Product Brochure

Treesafe - Product Brochure

Typical section - HD-Treesafe - Straight edge - Non Voided

Typical section - HD-Treesafe - Straight edge - Non Voided

Typical section - HD-Treesafe - Straight edge - Voided

Typical section - HD-Treesafe - Straight edge - Voided

Typical Section - HD-Treesafe - BSU - Non-Voided

Typical Section - HD-Treesafe - BSU - Non-Voided

Typical Section - HD-Treesafe - BSU - Voided

Typical Section - HD-Treesafe - BSU - Voided
