Trief® Cadet GST1A Chevron Containment Kerbs

Name: Trief® Cadet GST1A Chevron Containment Kerbs
Brand: Brett Landscaping
SKU: dqdc8i7eSfJgficqDGAgwq

Verified by manufacturer 3 months ago

Clockwise kerb

Brett Landscaping

Third party certifications:

EPD
Certificate type

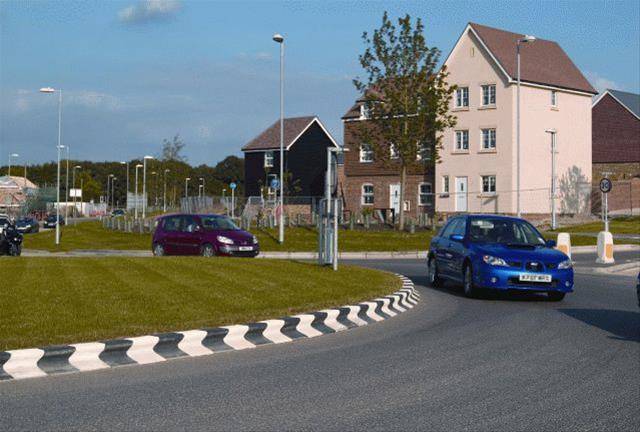

Trief Chevrons are interlocking kerbs that have the same design specification and qualities as the standard units and are very effective for directional indication at road bends and roundabouts.

Jump to:

+44 (0)345 60 80 570 Website

Application

Urban, industrial and commercial use: safety containment kerb to contain and re-direct stray vehicles safely e.g. car parks, highways, bridge approach, traffic islands, industrial projects.

Description

The exclusive Trief Cadet GST1A Chevron units feature the same design, specification and production qualities as the Trief Cadet GST1A Containment Kerb units (specified separately).

Trief Cadet GST1A Chevron units are available in a choice of surface finishes: marker for a non-reflective finish or Ballotini finish, which contains Ballotini glass beads for a reflective surface finish. Both are available in black and white. Other colours are available on request.

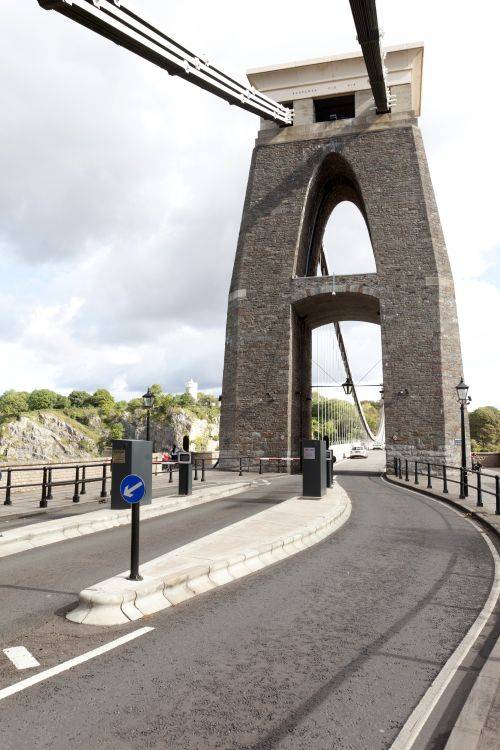

The Trief Containment Kerb system has been widely used to form traffic calming features, pedestrian refuges and to protect bridges and can also be used to enhance security features by reducing traffic speeds and as a visual and physical deterrent to deliberate incursion.

Standards:

Brett Landscaping operate a number of independently audited management systems:

BS EN ISO 9001: 2008 Quality Management System.
BS EN ISO 14001: 2004 Environmental Management System.
OHSAS 18001: 2007 Health and Safety Management System.
BES 6001 Responsible Sourcing of Construction Products.

General information

Color	Grey Black White
Finish	Coarse Etched Smooth
Material	Concrete Guidance for specification option: Precast (Wet cast, vibrated).
Shape	Rectangle
Length	130 mm 200 mm 300 mm
Width	270 mm
Height	325 mm

Uniclass	Pr_25_93_45_21 Concrete safety kerbsPrimary
CAWS	Q10/10 Precast concrete Q10/110 Proprietary precast concrete Q10/115 Precast concrete safety kerbs

Product range	Trief

Specification data - Concrete safety kerbs

Standard	To BS EN 1340: 2003. Guidance for specification option: Design standard: Consult manufacturer for details. Installation standard: BS 7533-6:1999.
Physical properties	-
Colour	Natural concrete. Granite. White, coated, reflective (Ballotini). Guidance for specification option: Containing Ballotini glass beads for a reflective surface finish. Black, coated, reflective (Ballotini). Guidance for specification option: Containing Ballotini glass beads for a reflective surface finish. White, coated, non-reflective. Black, coated, non-reflective.
Finish	As colour.
Profile	-
Designation	High profile containment kerb.
Dimensions	270 x 325 x 300 mm. Manufacturer guidance Tolerance on working dimensions: Moulded faces: ±5 mm; non-moulded faces: ±8 mm. Chamfer: As cast.
Weathering resistance	Class 2.
Abrasion resistance	Class 4.
Bending strength	Manufacturer's standard. Guidance for specification option: Annex F Compliant - Second moment of inertia satisfactory.

Type	Mechanical lift required for installation.
Third-party certification	CE marked.
Thermal Conductivity:	1.2 W/m·K.
Unit weight	49 kg.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Concrete Guidance for specification option: Precast (Wet cast, vibrated).
Manufacturing plant location	Barrow upon Soar, Loughborough LE12 8LX, UK
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.21 kg CO₂ eq/kg
Recyclability	100%
Expected Life	40 year
