Trief® GST2 Containment Kerbs

Name: Trief® GST2 Containment Kerbs
Brand: Brett Landscaping
SKU: ucSZqwgsosSzf3Nw6tVV9i

Verified by manufacturer 5 months ago

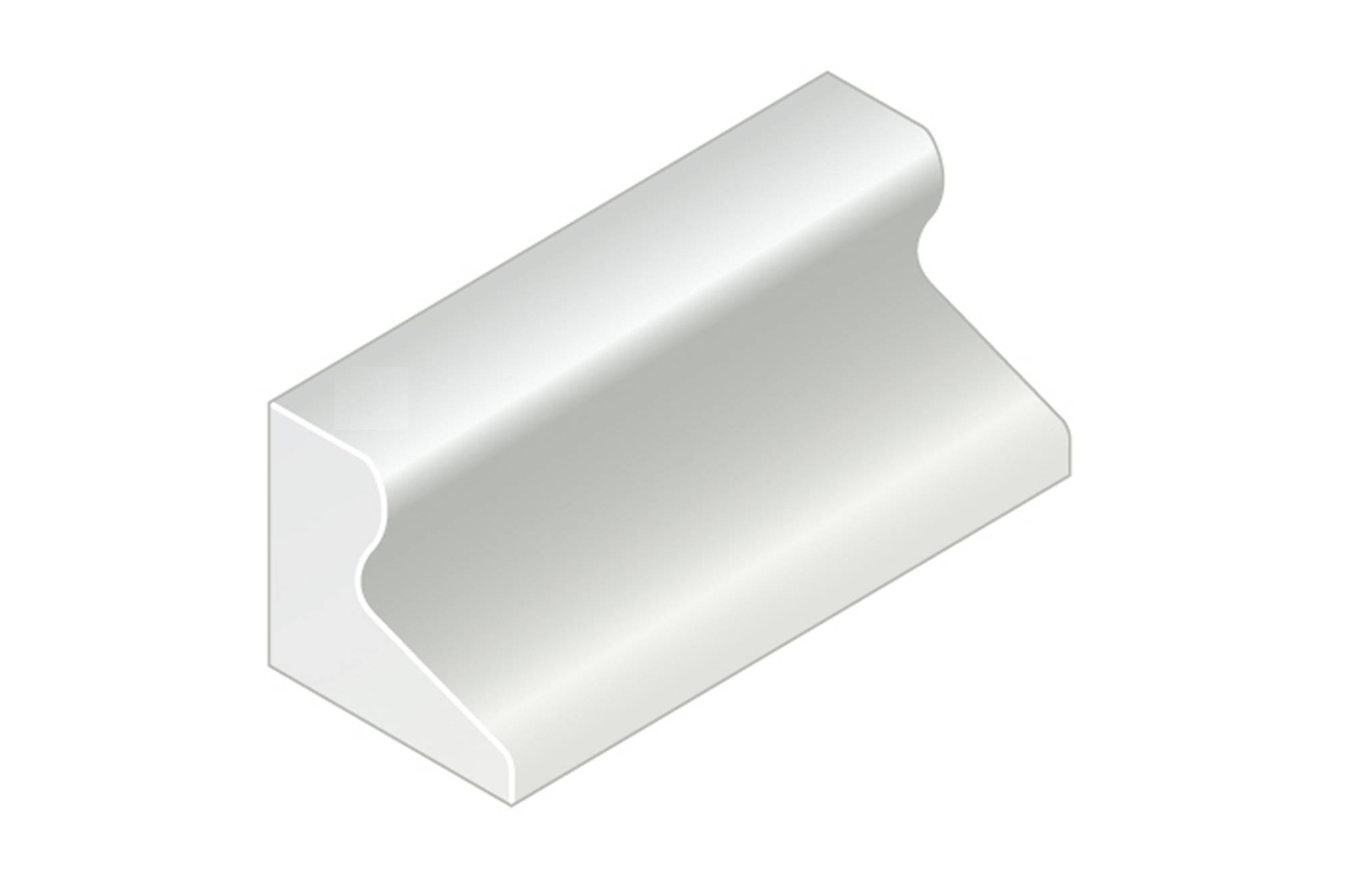

Standard kerb, 914 mm

Brett Landscaping

Third party certifications:

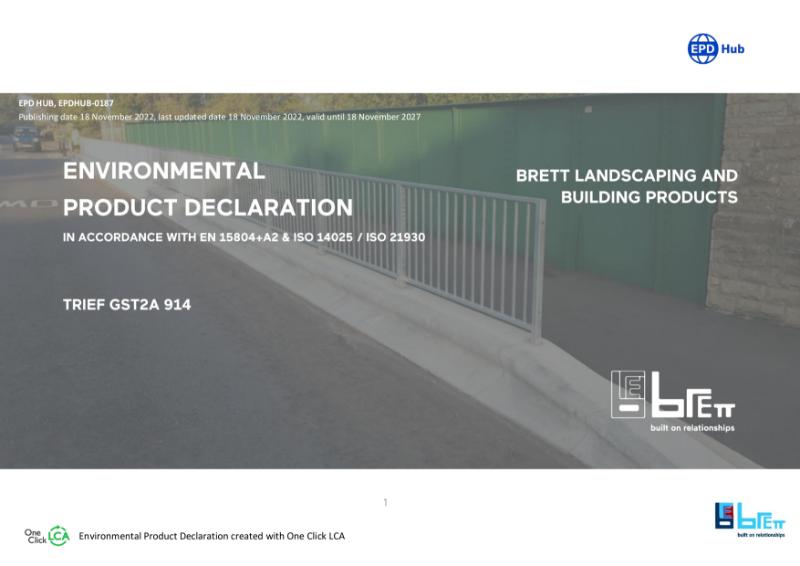

EPD
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

Trief is the original containment kerb system providing enhanced vehicle and pedestrian safety through physical and visual deterrence. The GST2 units allow installation on limited depth applications.

Jump to:

+44 (0)345 60 80 570 Website

Application

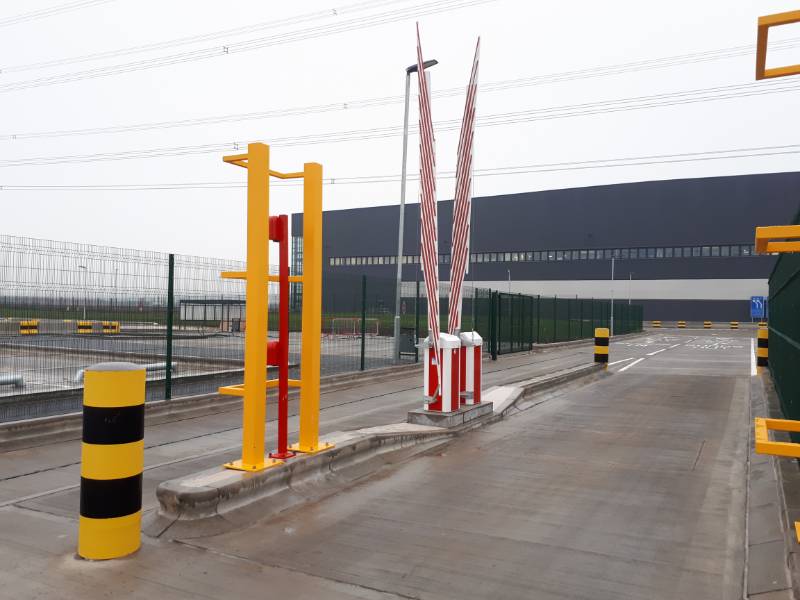

Urban, industrial and commercial use: safety containment kerb to contain and re-direct stray vehicles safely e.g. bridge approach, bridge decks, car parks, highways, traffic islands, industrial projects etc.

Description

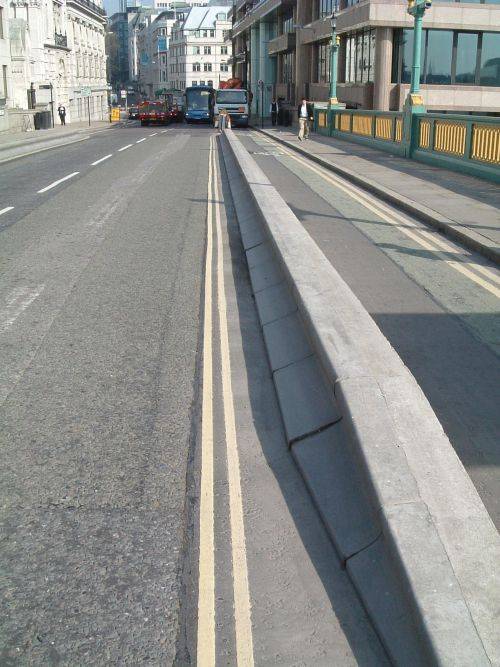

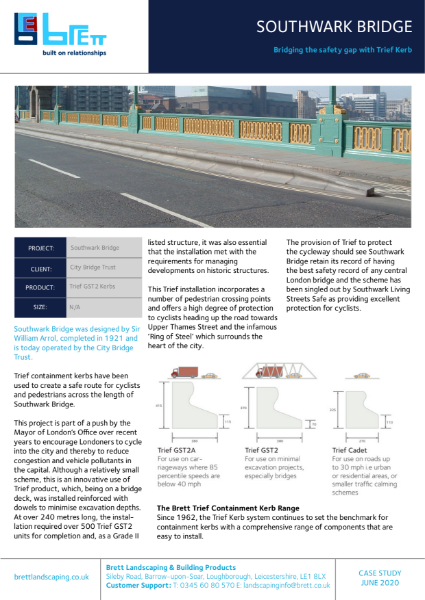

The Trief GST2 Containment Kerb has the same profile as the Trief GST2A but comes with a reduced toe depth to allow for sites where it is necessary to minimize excavation requirements and allow installation within limited depth applications, for example, around the vulnerable structural parapets and edge beams of bridges. The Trief GST2 kerbs can be supplied with pre-drilled dowel holes for added security.

The system has been independently tested by the Transport Research Laboratory (TRL) and is BS EN 1317–2 compliant providing a containment level of N1 and an impact severity level of ‘A’ rating (Report Number TRL068).

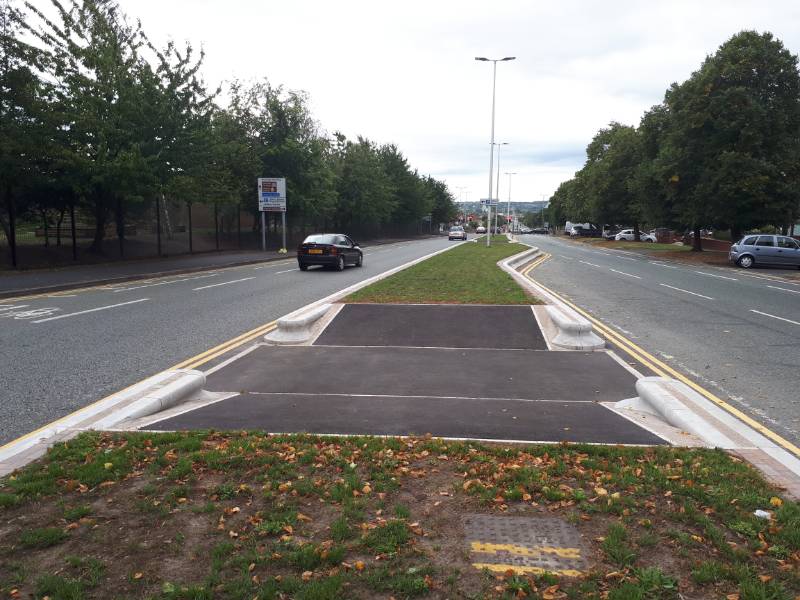

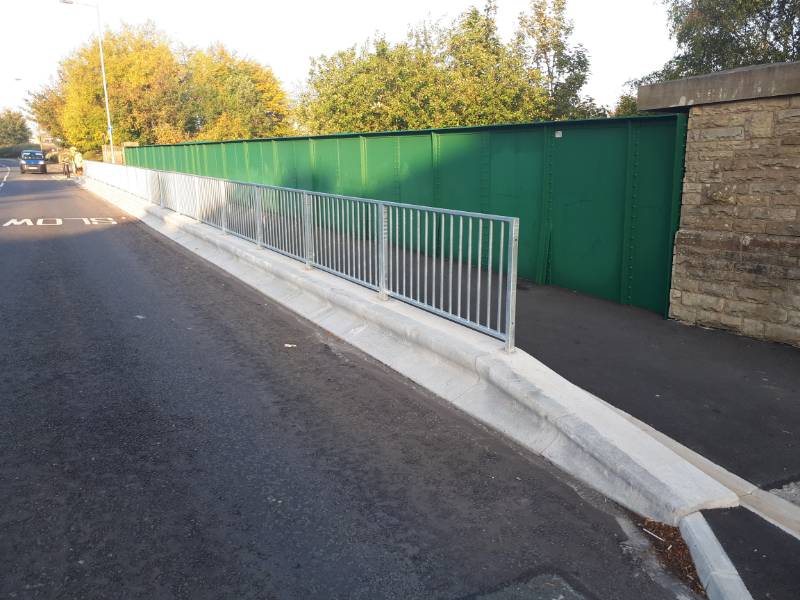

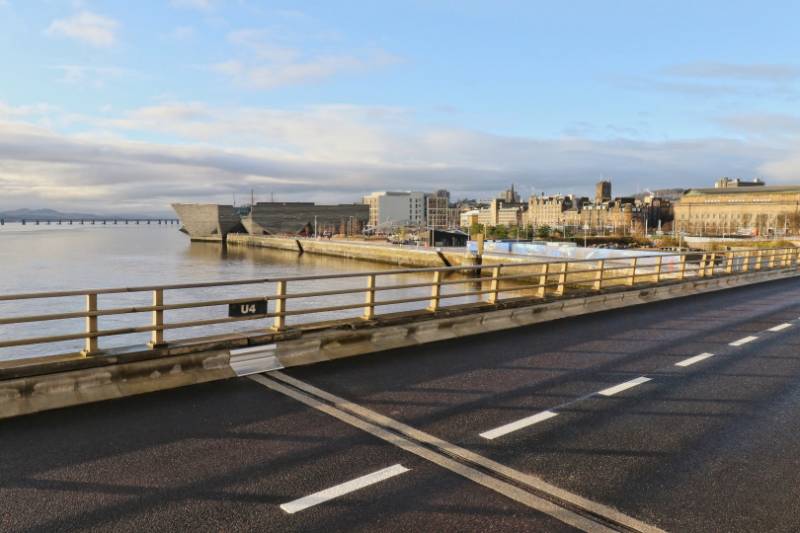

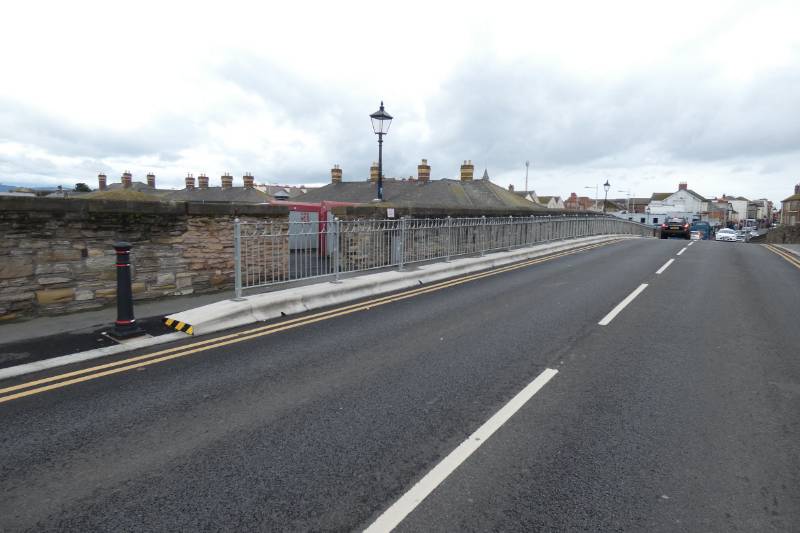

The Trief Containment Kerb system has been widely used to form traffic calming features, pedestrian refuges and to protect bridges and can also be used to enhance security features by reducing traffic speeds and as a visual and physical deterrent to deliberate incursion.

Standards:

Brett Landscaping operate a number of independently audited management systems:

BS EN ISO 9001: 2008 Quality Management System.
BS EN ISO 14001: 2004 Environmental Management System.
OHSAS 18001: 2007 Health and Safety Management System.
BES 6001 Responsible Sourcing of Construction Products.

General information

Color	Grey Black White
Finish	Etched Smooth
Material	Concrete Guidance for specification option: Precast (wet cast, vibrated).
Shape	Rectangle
Length	455 mm 914 mm
Width	270 mm 380 mm
Height	280 mm 370 mm

Uniclass	Pr_25_93_45_21 Concrete safety kerbsPrimary
CAWS	Q10/10 Precast concrete Q10/110 Proprietary precast concrete Q10/115 Precast concrete safety kerbs

Product range	Trief

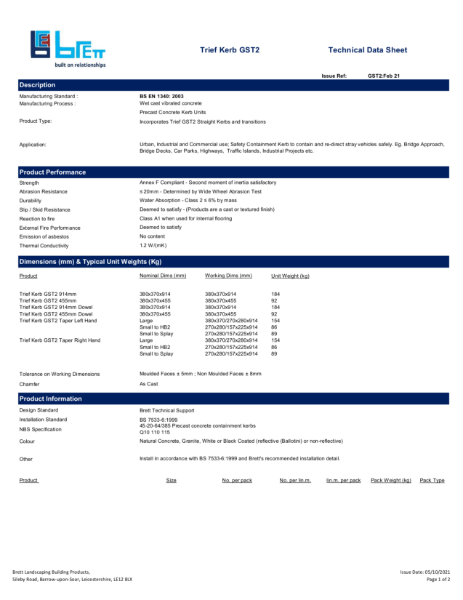

Specification data - Concrete safety kerbs

Standard	To BS EN 1340: 2003.
Physical properties	-
Colour	Granite. Natural concrete. White, coated, reflective (Ballotini). Black, coated, reflective (Ballotini). White, coated, non-reflective. Black, coated, non-reflective.
Finish	As Colour.
Profile	-
Designation	High profile containment kerb.
Dimensions	380 x 370 x 914 mm. Manufacturer guidance Tolerance on working dimensions: Moulded faces: ±5 mm; non-moulded faces: ±8 mm. Chamfer: As cast.
Weathering resistance	Class 2.
Abrasion resistance	Class 4.
Bending strength	Manufacturer's standard. Guidance for specification option: Annex F Compliant - Second moment of inertia satisfactory.

Slip resistance	Deemed to satisfy (products are a cast or textured finish).
Skid resistance	Deemed to satisfy (products are a cast or textured finish).
Type	Mechanical lift required for installation.
Third-party certification	CE marked.
Thermal Conductivity:	1.2 W/m·K.
Unit weight	190 kg.
