Triton 5900 Cylinders
Verified by manufacturer 11 months ago

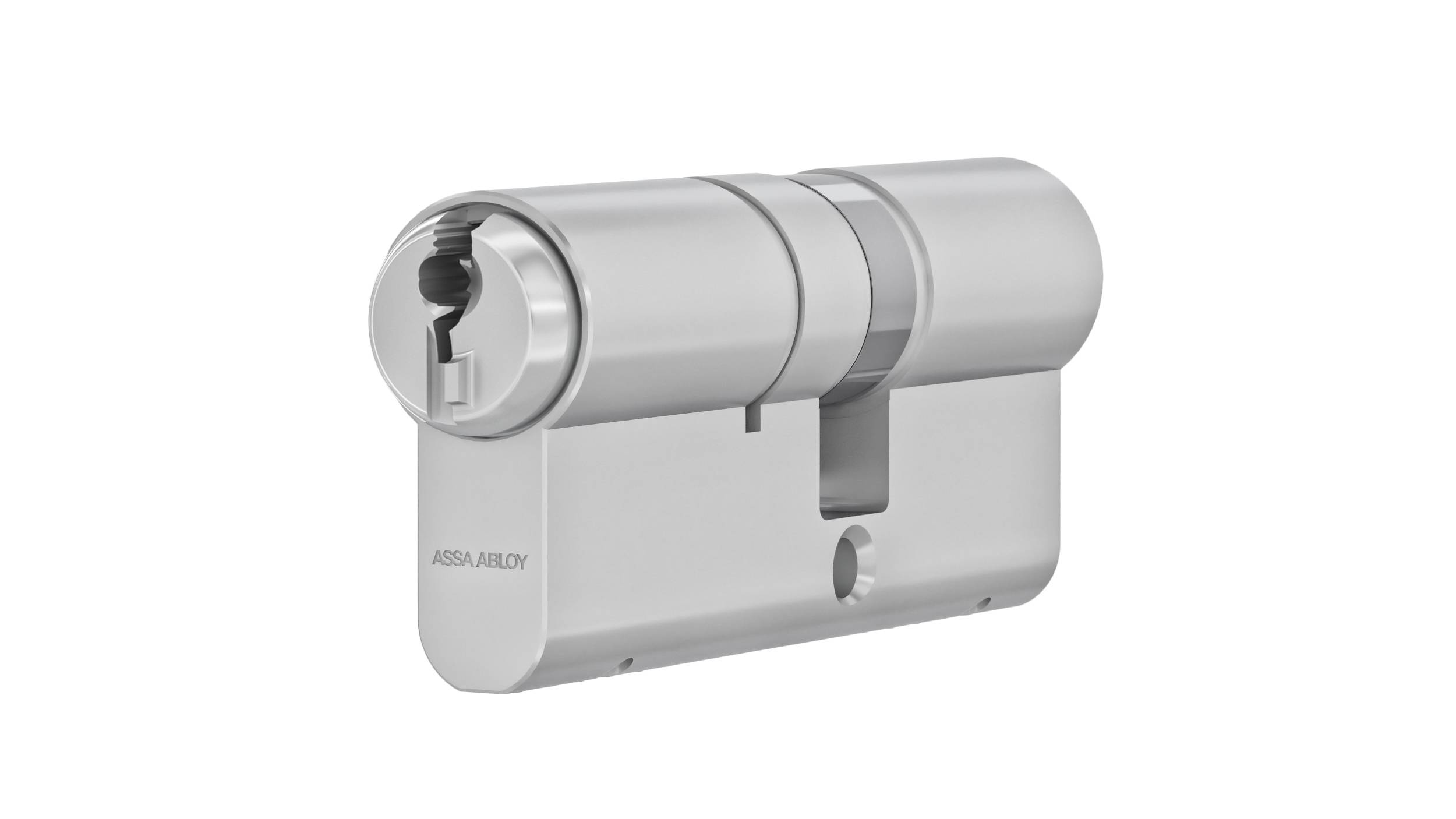

Euro Double Cylinder - 105553090
Euro Double Cylinder - 105553090
Euro profile cylinders.
Application
Door locks.
Description
For use with lock cases accepting Euro profile cylinders.
Features and benefits:
- Cylinders provided with DIN 18252 cam.
- Drill protection in cylinder plug and body.
- Lengths starting at +0+0 (61 mm) available in 5 mm increments up to +40+40 (140 mm).
- Offset lengths also available (any size up to +40 / 70 mm per side).
- Extended length cylinders above +40 in size are also available utilizing the M20 modular platform.
- Cylinders are supplied with a fixing screw as standard.
- Master keyed.
General information
Color | Silver |
Finish | Satin |
Length | Bespoke |
Width | 15.5 mm 17 mm |
Height | 32.7 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/24 Door locks P21/515 Door locks |
SKU Code | 105553090, 105554090, 105555090, 105562090, 105563090, 105564090, 105559090, 105560090, 105561090, 105556090, 105557090, 105558090, 105535090, 105536090, 105536090 (5933 +10) |
Specification data - Door latches
Classification data | |
Standard | To BS EN 1303. |
Latch or lock type | Cylinder ref: 5922 +0+0 Double Euro (61 mm). |
Material and finish | SC. Guidance for specification option: Satin Chrome Brushed B. |
Keying | In master keyed suite. |
Dimensions | 61 x 17 x 32.7 mm. |
