TRL90 Rooflight
Verified by manufacturer 5 days ago
Flat aluminium rooflight.
Application
For residential and commercial buildings. The TRL90 rooflight is particularly suitable for retrofitting old skylights or introducing natural light to a wide range of spaces, including:
- Housing.
- Retail.
- Sports and leisure facilities.
- Medical facilities.
- Educational buildings.
Description

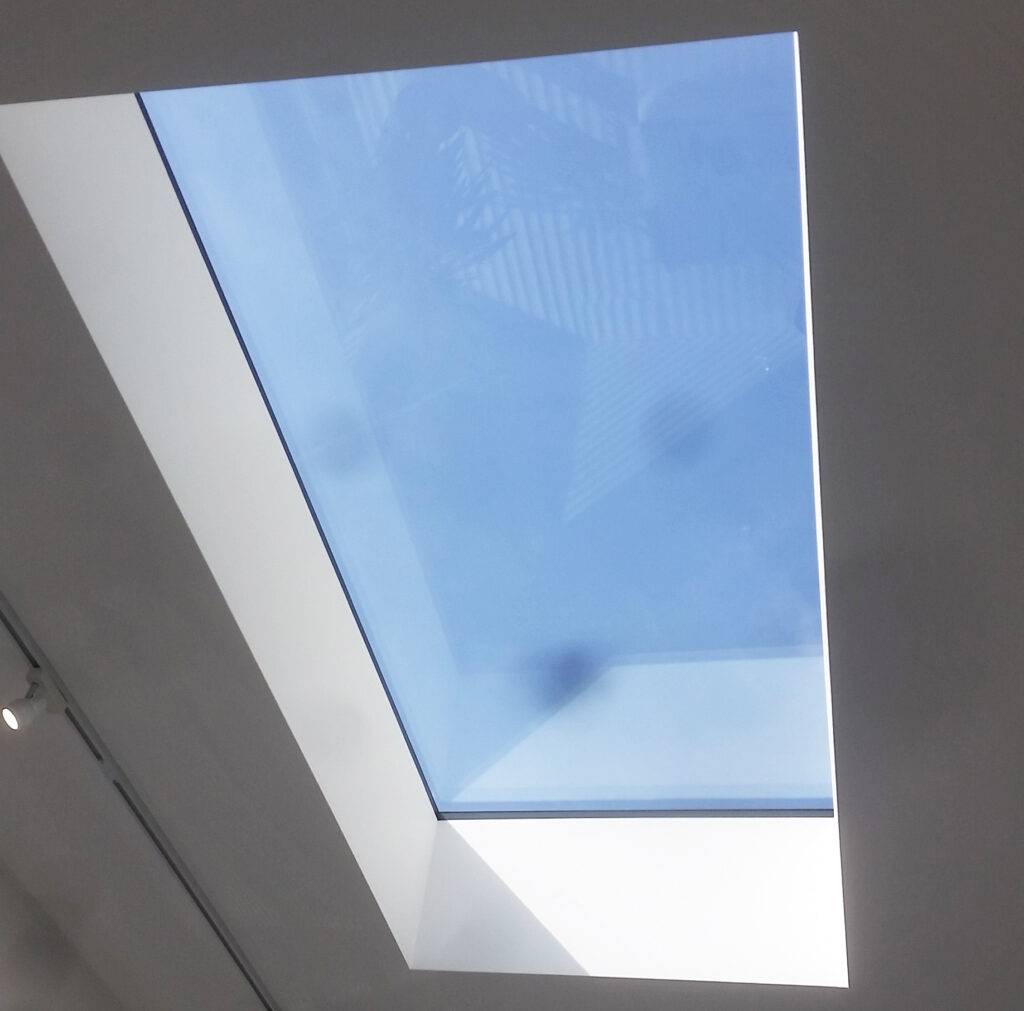

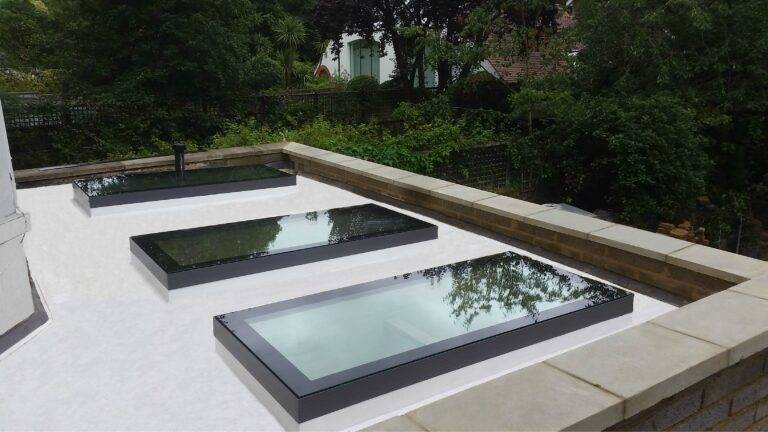

The TRL90 flat rooflight brings in light as well as style to residential and commercial properties. The clean lines offer a modern architectural, flush finish that is suitable for both new-build and retrofit projects. It has been designed to be a product that is simple and straightforward to manufacture.
Features and benefits:
- Frame value of just 1.0 W/m²K.
- Additional transom profile available to create larger rooflight spans.
- Compatible with both double and triple glazed units.
- A fully bonded glazing process offers impressive strength and high levels of thermal efficiency.
- Modern architectural looks.
- Flush finish.
- For commercial or residential applications.
- For retrofit or new-build.
- Easy to fabricate.
- Easy to fit.
- Available in any standard RAL colour.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Powder-coated Glazed |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
SKU Code | TRL90 |
Specification data - Framed rooflights
Classification data | |
Form | Flat. |
Size | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Product performance | |
Whole window U-value | 1.0 W/m2K. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Powder-coated. Guidance for specification option: All powder coating undertaken by Qualicoat approved supplier. |
Colour | Manufacturer guidanceInsert requirements.
|
Film thickness (minimum) | Coating applicator to determine. |
Glazing or infill | |
Type | Insulating glass units. |
Construction | Double glazed, 32 mm. Triple glazed, 44 mm. |
Colour | Clear. |
Coating | Manufacturer guidanceConsult with glass supplier for required specification to suit and insert requirements. |
Integral kerb | Aluminium. |
Accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Sustainability data
Material | Glass Aluminium |
