TS 72 V BC Door Closer
Verified by manufacturer 2 months ago
Softline cover profile
Softline cover profile

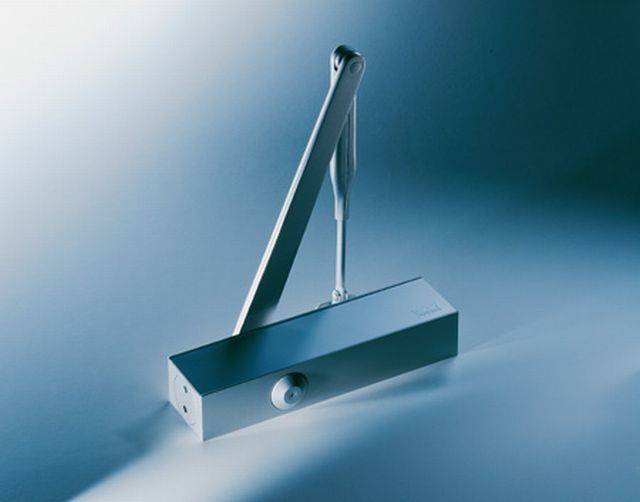

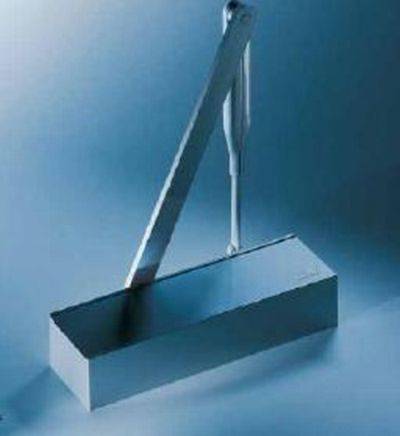

Surface-mounted, rack-and-pinion door closer with adjustable closing speed and latching action.
Application
Suitable for standard, internal doors up to 1100 mm wide, including fire doors.
Description
Surface-mounted, rack-and-pinion door closer from ClassicLine series, with adjustable closing speed and latching action.
Features and benefits:
- Easy and quick to fix and adjust.
- Non-handed design.
- Optimum wall and door protection due to self-adjusting backcheck.
- Closing force variable: EN 2 for doors up to 850 mm wide; EN 3 for doors up to 950 mm wide; EN 4 for doors up to 1100 mm wide.
- Reliable closing with adjustable latching action (by arm). Closing speed adjustable in the ranges 180°–15° and 15°–0°
General information
Color | Black Blue Brown Gold Green |
Finish | Polished brass Polished chrome Satin stainless steel |
Size | 232 x 45 x 68 mm |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Materials and finishes | |
Colour | Anthracite.Burgundy.ButtercupCoffee Brown.Forest Green.Grey.Jet Black.Light Grey.Meadow Green.Polished brass.Polished chrome.Pure White.Ruby Red.Satin stainless steel.Silver.Steel Blue.Stone Grey.Ultra Marine BlueYellow. |
Cover profile | Full softline. |
Accessories | None. Hold-open arm. Guidance for specification option: Not suitable for fire doors. Enables door to be held open at precisely the correct angle (up to approximately 150°). Mounting backplate. Guidance for specification option: For fixing closer to door where there is no means of direct mounting. Parallel-arm bracket. Upstand hinge plate. Guidance for specification option: For fixing arm to narrow door frames. |
Mounting | Pull-side, door leaf fixing. Push-side, transom fixing. Push-side, parallel arm fixing (requires parallel arm bracket). |
Force | EN 2 for doors up to 850 mm wide. EN 3 for doors up to 950 mm wide. EN 4 for doors up to 1100 mm wide. |
Closing | Closing speed adjustable in the ranges 180°–15° and 15°–0°. |
