TT1-400 Tactile / corduroy anti-slip tile - Anti-Slip Corduroy Tactile Tile
Verified by manufacturer 20 days ago
TT1-400 - Aluminium
TT1-400 - Aluminium
London Underground
Certificate type
Tactile / corduroy tiles. Cast metal.
Application
- Rail and light rail.
- Tactile and anti-slip.
- Stair nosing (lower footfall).
- Tactile or hazard warning.
Description
AATi Type TT1/400 is a cast metal anti-slip tactile / corduroy tile with silicon carbide granules cast into the metal matrix of the wearing surface. These plates are purpose-made in 400 x 400 mm sections to suit the required stair width and in sets of two strips to give the required 800 mm of cover as per BS 8300:2009.
Features and benefits:
- Anti-slip silicon carbide.
- High anti-slip performance.
- Cost-effective, long-term installation.
General information
Color | Beige Guidance for specification option: Nickel Bronze. Black Guidance for specification option: Cast Iron Zinc Plated. Copper Guidance for specification option: Gunmetal. Silver Guidance for specification option: Aluminium. |
Finish | Natural |
Material | Aluminium Cast iron Guidance for specification option: Zinc plated black. Gunmetal Nickel bronze |
Shape | Square |
Length | 400 mm |
Width | 400 mm |
Height | 8 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/585 Applied slip-resistant |
Specification data - Slip-resistant rebate inserts
Material | Aluminium. |
Format | Tile. |
Thickness (minimum) | 5 mm. |
Slip resistance – water wet (minimum) | Guidance for specification option: All AATi products achieve minimum PTV/SRV to BS 7976-2. |
Colour | Silver. |
Predrilled holes | Manufacturer guidanceAll products are supplied cut to length, pre-drilled and countersunk with production drawings submitted for client approval. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom Guidance for specification option: England, UK. |
Recyclability | 100% Guidance for specification option: 100% Recyclable Materials. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
London Underground
AATi certificate for AATi Anti-slip Corduroy Tacile Tiles ref TT1 400
Literature
TT1-400 Closed End Data Sheet
TT1-400 rawlnut into concrete installation guidelines Rev. 4
TT1-400 woodscrew into concrete installation guidelines Rev. 4
TT1-400 woodscrew into wood installation guidelines Rev. 4
Case studies

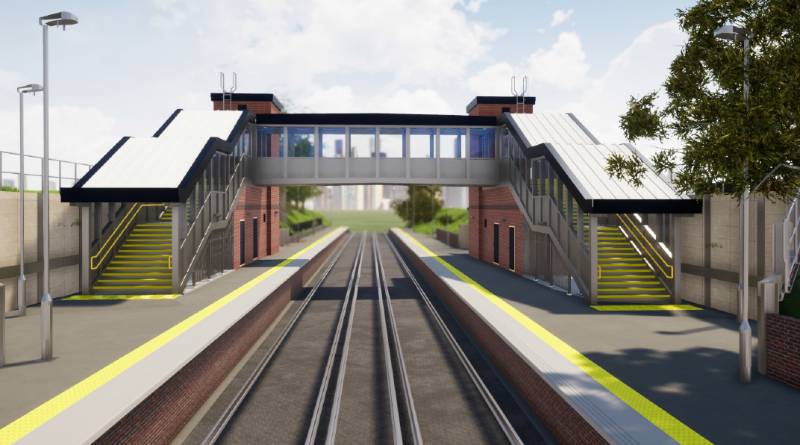

Liphook Station
