Tube and Link Shutters

Verified by manufacturer 5 months ago

dp Doors & Shutters Ltd

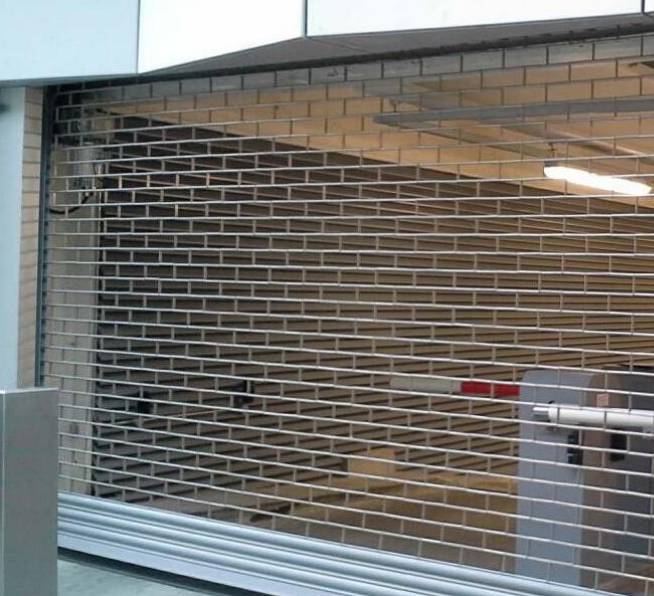

Aluminium tube and link security grille, providing security for large openings and giving maximum vision and ventilation.

Jump to:
+44 (0)114 288 9464 Website

Application

  • Suitable for medium security commercial sites where vision is a priority, either behind glass or as a standalone security barrier.
  • For internal or external face or reveal fit applications.
  • Suitable for shopping malls and high street stores.

Description

Medium security grille comprising of steel rod-filled tubes and vertical links.


Features and benefits:

  • Provides high visibility, light ingress and ventilation.
  • Commonly installed behind glass, but can also be used as a standalone security barrier.
  • Manufactured from aluminium and steel
  • Electric, 240 volt, tubular motor operation.
  • Can be face fixed or reveal fixed.
  • CE compliant to all applicable directives and regulations.

General information

Color

White

Brown

Other

Finish

Anodized

Mill

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

6000 mm

Bespoke

Height

1850 mm

2700 mm

4150 mm

Bespoke

Warranty description

One year

Guidance for specification option:

12 months materials and labour.

Uniclass

Pr_30_59_84_72 Roller grillesPrimary

CAWS

L20/612 Roller grilles

L20/60 Doors

Specification data - Roller grilles

Opening sizes

-

Manufacturer guidance

Insert structural or frame opening size, or refer to a drawing or schedule.

Arrangement

Vertical, fitted into reveal.

Vertical, face-fitted across opening.

Grille curtain

-

Material

Aluminium.

Finish and colour

Anodized.

Mill.

Powder-coated.

Guidance for specification option:

Insert colour requirements.

Frame and guides

-

Material

Aluminium.

Colour

White.

Guidance for specification option:

Standard.

Brown.

Guidance for specification option:

Standard.

Powder-coated.

Guidance for specification option:

To match powder-coated grille.

Operation

-

Mode

Electric, tubular motor.

Guidance for specification option:

With manual override facility and crank handle as required (surcharge applies).

Control

Internal rocker switch.

Guidance for specification option:

Standard.

External key switch.

Guidance for specification option:

Standard.

Safety brake.

Guidance for specification option:

As appropriate, to comply with legislation.

Manual override and crank handle.

Guide channels

70 mm.

90 mm.

Manufacturer guidance

Guide channel width.

Bottom rail design

Steel 'L' shaped.

Steel 'T' shaped.

Enclosure

1850 x 250 mm.

2700 x 300 mm.

4140 x 360 mm.

Manufacturer guidance

Guide height x plate size.

(Plate sizes are a guide only and may vary).

Enclosure material

Roll-formed aluminium with aluminium alloy end plates.

Colour

White.

Guidance for specification option:

Standard.

Brown.

Guidance for specification option:

Standard.

Powder-coated.

Guidance for specification option:

To match powder-coated grille.

Manufacturer guidance

Enclosure colour.

Grille

Brick-bond formation, 13 mm diameter tubes enclosing 8 mm steel rods. Opening height: 56 mm.

Guidance for specification option:

Standard.

Weight

9 kg/m².

Manufacturer guidance

Grille weight.

Width (maximum)

6000 mm.

Manufacturer guidance

Grille maximum width.

Area

20 m² (maximum).

Manufacturer guidance

Grille maximum area.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Guidance for specification option:

All components are recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %
