Application

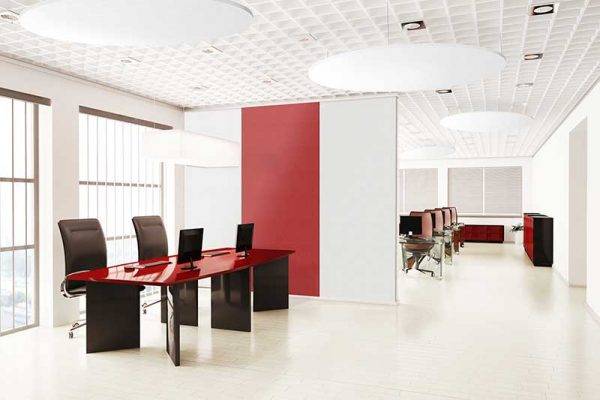

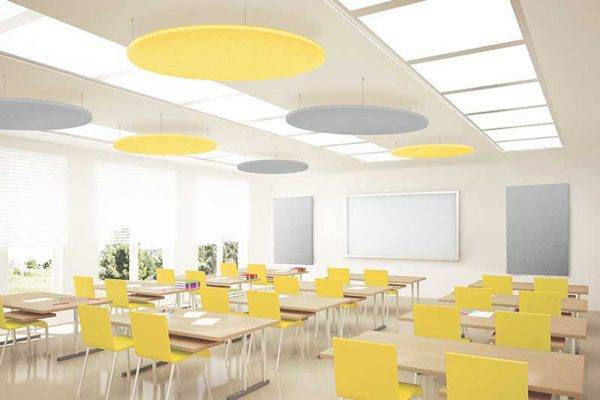

Suitable for soffit mounting, the rafts can be used in many types of environments such as offices, schools, hospitals, restaurants, retail and leisure.

Description

TVS ABSorb Rafts are innovative, frameless acoustic rafts which offer new opportunities for improving acoustics while bringing a whole new aesthetic to a room. Designed with practicality in mind, this art deco-inspired rafts gives peace of mind while adding colour, texture and a design feature to any environment. The rafts are designed to absorb sound and achieve the optimum level of acoustic comfort, prevent echo and reverberation and ensure enhanced speech intelligibility.


Features and benefits:

  • Available in a wide variety of shapes and sizes, including custom shapes.
  • 40 mm and 50 mm thick panels.
  • Range of colour and fabric options.
  • Provide acoustic treatment to areas using thermal mass construction by enabling the air to flow freely in the room.
  • Class A sound absorption.

General information

Color

Other

Finish

Other

Material

Fabric

Shape

Circle

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

40 mm

50 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Rigid.

Application

Soffit mounting.

Material density

3 kg/m².

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A.

Fire performance

-

Fire resistance

Guidance for specification option:

  • Raft core board: Tested to BS476: Part 6, Class 0.
  • Fabric facing: Complies with Class 1 to BS476: Part 7.
  • Class 0 fabrics can be supplied on request; consult manufacturer for details.

Dimensions

-

Size (length x width)

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Thickness (overall)

40 mm.

50 mm.

Surface pattern

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Finish

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Colour

-

Manufacturer guidance

Choice of 80 colours available (Cara and Lucia ranges) - Consult manufacturer for details and insert requirements.

Accessories

Not required.

Hanging kit.

Guidance for specification option:

  • Includes spiral hook, 1 m cable and eyelet hook.
  • Number of kits needed depends on raft size.
  • Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
