Twinfix Curved Canopy Glazed With Polycarbonate Non-Fragile (ACR(M)001:2019, Class B)
Verified by manufacturer 7 months ago
Twinfix Aluminium Canopy Curved 6NF
Twinfix Aluminium Canopy Curved 6NF

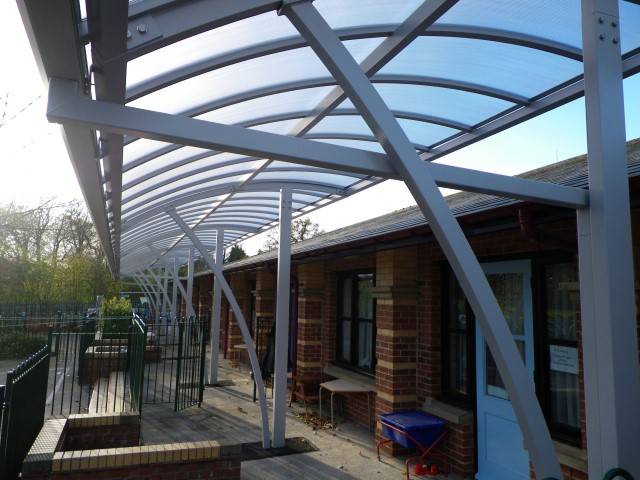

Twinfix aluminium canopy glazed with curved non-fragile safe roof light system.
Application
Suitable for all educational, industrial, health and commercial institutions.
Description
Features and benefits:
- The canopy compromises of a light weight, rust resistant aluminium frame that can be powder coated to any standard RAL colour and is glazed with the Twinfix curved non fragile roof system.
- Approvals: UKCA marked to BSI-EN 1090-1 - Execution of Steel and Aluminium Structures: Canopy structures.
- Total energy transmission: Clear 75%; opal 69%.
General information
Finish | Powder-coated |
Material | Aluminium Polycarbonate |
Uniclass | |
CAWS | B91/330 Canopy H10/10 Patent glazing H10/115 Patent glazing |
Specification data - Open-sided shelters
Frame | |
Finish | Polyester powder coating to BS 6496. |
Accessories | None.Aluminium side trims.Head flashing.Mechanical end plates.Post protectors.Ridge flashings.Roller shutters.Signage.Vertical glazing. |
UV protective layer | Both sides of sheet. |
Sound reduction index | 29 dB. |
Light transmission | 85%. Guidance for specification option: Curved6NF (6 mm) Solid: Clear. |
Reaction to fire | To BS EN 13501-1, B-s1, d0. |
Width | 600 mm. 700 mm. |
Fixings | Stainless steel self-tapping screws and bolts. |
FragilityRating | Panels tested in accordance with ACR[M]001:2019 and Classified as 'Class B non-fragile assembly'. |
Colour | Guidance for specification option: Any RAL or BS colour available, insert requirements. |
Infill (polycarbonate) | Clear. Opal. Guidance for specification option: Curved10NF (10 mm) only. |
Sustainability data
Country of material origin | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
