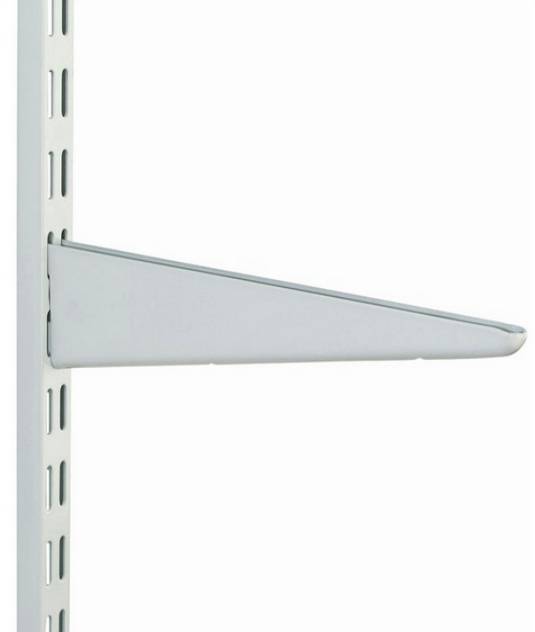

Twinslot shelving is a modular shelving system.
Application
Suitable for commercial, office, educational and personal applications.
Description
Twinslot Shelving system is E-32 compatible, allowing the user to extend their existing storage or giving them the flexibility to expand in the future. The strong steel construction and high load capacity make the twinslot range hard-wearing.
Features and benefits:
- Element (E32) compatible.
- Anti-microbial finish.
- 202 grade steel.
- Cut to size shelves with matching edging.
General information
Color | White |
Finish | Anti-microbial |
Material | Stainless steel |
Length | Bespoke |
Width | Bespoke |
Height | 170 mm 430 mm 710 mm 1000 mm 1220 mm |
Uniclass | |
CAWS | N13/449 Shelves P20/66 Bracket supports P20/65 Bracket supports P20/420 Bracket supports P20/425 Bracket supports |
Specification data - Shelves
Material | 18 mm MFC shelf.Guidance for specification option: As standard,
18 mm MDF shelf.Guidance for specification option: Optional, consult manufacturer. 18 mm HPL shelf.Guidance for specification option: Optional, consult manufacturer. 13 mm SGL shelf.Guidance for specification option: Optional, consult manufacturer. 16 mm SGL shelf. |
Dimensions | |
Length | 500 mm.Manufacturer guidanceMaximum size between uprights. |
Width | 170 mm.Manufacturer guidanceHeight of bracket support. |
Thickness | 18 mm. |
Integral accessories | 120 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-120. 170 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-170. 220 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-220. 270 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-270. 320 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-320. 370 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-370. 420 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-420. 470 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-470. HD - 470 mm Stainless steel bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-470-HD. HD - 610 mm bracket.Guidance for specification option: Backet depth, 202 grade steel. Bracket code: SPUR-BRA-610-HD. |
Compatibility | E-32 compatible. |
Factory finish | Anti-microbial. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
Recyclability | Made from materials that are widely accepted by recycling facilities. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
