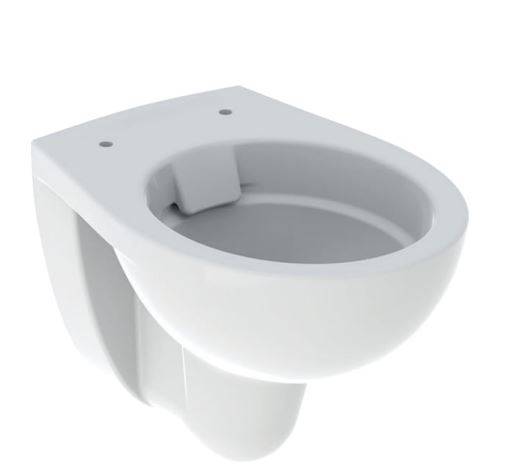

Twyford Alcona Wall-Hung WC, Washdown, Small Projection, Rimfree
Verified by manufacturer 4 days ago
Wall-hung WC.
Application
- For concealed cisterns.
- For pressure flushing valves.
Description
Twyford Alcona wall-hung WC, washdown, small projection, Rimfree.
Features and benefits:
- Wall-hung
- Washdown WC
- Rimless WC ceramic appliance featuring Rimfree flush technology
- Type 2 in accordance with EN 997
- Small projection.
General information
Color | White |
Material | Vitreous china |
Shape | Other |
Length | 480 mm |
Width | 355 mm |
Height | 345 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Standard | To BS EN 997, Class 2. |
Form | Wall-mounted, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 345 mm. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal back outlet. |
Seat holes | Standard pattern. |
Integral accessories | None. |
Sustainability data
Material | Vitreous china |
