Application

  • CeraPro: Bathrooms, kitchens, living areas and conservatories. Particularly useful for irregularly shaped floor areas.
  • T2Blue: Bathrooms, stairs, living areas and conservatories.
  • T2Red and T2Red with T2Reflecta: Living rooms, kitchens, bathrooms, dining rooms, bedroom rooms and conservatories.
  • RAYCHEM Custom Mats: Custom built to fit the exact dimensions of the floor areas.
  • Top floor and subfloor: Varies depending on system used, consult literature for details.

Description

A range of electrical underfloor heating system options, including thermostats and accessories.


Underfoor heating range:

  • T2Red: The innovative and unique self-regulating floor heating cable.
  • T2Red with T2Reflecta: The energy-saving underfloor heating system. This system combines the self-regulating heating cable T2Red with T2Reflecta, the grooved, thermally insulated, aluminium-covered plate.
  • T2QuickNet: The ultra-thin heating mat (two power options available).
  • T2Blue: The robust, flexible, pre-terminated (dual wire, and screened) cable system.
  • T2Green: The low output heating cable designed especially for very well insulated and near zero energy houses.
  • RAYCHEM Custom Mats: The pre-fabricated underfloor heating mats are custom built to fit the exact dimensions of the floor area, with dual conductor braided heating wire laminated between two layers of polyester fabric.
  • CeraPro: The 3 mm ultra-thin, robust, under tile heating cable solution with 'tape and mesh' fixing accessories included. Suitable for tiles or natural stone covering.
  • 'Smart' thermostats which offer zoned, programmable heating control, a requirement of the Building Regulations Approved Document L.
  • A complete range of installation accessories and components including: Floor primers, adhesives and fixing accessories.


Consult technical literature for design (power output, cable length etc.) requirements depending on whether installation on new construction or renovation. Packs as well as individual components are available, consult manufacturer for details and insert requirements under 'Product reference'.


Self-regulating heating:

The cable automatically adjusts its power output long its entire length to compensate for temperature changes. This is achieved within the conductive core which is extruded over the two parallel conductors, as the temperature drops, the core contracts microscopically and the number of electrical paths through the core increases resulting in more heat being produced. Conversely the opposite occurs when the core expands and less heat is produced when the ambient temperature rises.


Features and benefits:

  • Avoids overheating. The cable can be closely spaced.
  • Maintenance free.
  • The cable can be cut to length and installed directly on to the existing floor.
  • Certified for use on wooden floors.
  • Energy efficient by adjusting the room temperature it can optimize energy consumption.
  • The manufacturer shall be able to provide heat loss calculations and corresponding selection of components.
  • Supply voltage: 230 V a.c./ 50 Hz.
  • Connections between the electrical supply, control panel and underfloor heating circuits shall be installed by an approved electrical contractor
  • Circuit breaker protection required by MCB (BS EN 60898 type C or D). Residual current device required, RCD (30 mA sensitivity, tripping within 100 ms).
  • Comfortable and safe.
  • Hassle free installation and maintenance free.
  • Energy-efficient and cost saving.
  • Can be installed under all floor coverings.
  • CE marked.
  • Total care warranty.

General information

Uniclass

Ss_60_40_92_27 Electric underfloor heating systemsPrimary

CAWS

T90/479 Underfloor electric heating mat

T90/478 Underfloor electric heating cables

Specification data - Electric underfloor heating systems

Controls

-

Controllers

RAYCHEM GREEN LEAF.

Guidance for specification option:

Digital floor and ambient temperature sensing thermostat with two operation modes.


  • Suitable for use with the following floor heating systems: T2QuickNet, T2Red, T2Blue and CeraPro.
  • Large and clear display.
  • Easy navigation.
  • Built-in four event programmable function.
  • Three operation modes: Standard comfort, editable and holiday modes.
  • Supply voltage: 230V/ 50 Hz.
  • Relay output: 13 A (maximum).
  • Ingress protection: IP 20.
  • Floor sensor (external sensor): With 3 m cable, type NTC 10K at 25°C. Compatible with existing Raychem NRG-Temp floor sensor.

RAYCHEM NRG-DM.

Guidance for specification option:

Programmable digital floor and ambient temperature sensing thermostat with three operating modes.


  • Large dot matrix display (1.8") with blue backlight.
  • Two sensors, four sensing modes: Floor sensing, room sensing, room sensing with floor limiter or no sensor mode.
  • Three working modes: Constant, event or boost mode.
  • Various setting options: Event, user or engineer settings.
  • Ingress protection: IP21.
  • Floor sensor: Compatible with floor sensors from 2–30 kΩ.
  • Supply capacity/ Voltage: 13A/ 230 VAC.
  • Temperature range: 5–40°C.
  • Ambient temperature-operation: 0–25°C.

RAYCHEM SENZ.

Guidance for specification option:

Programmable digital floor and ambient temperature sensing thermostat with seven operation modes.


Includes all the features of RAYCHEM SENZ WIFI, but without the Wi-Fi connectivity.

RAYCHEM SENZ WIFI.

Guidance for specification option:

Programmable digital floor and ambient temperature sensing thermostat with WIFI.


  • Seven operating modes (three economy programs plus constant/ flexible boost/ holiday and OFF).
  • Adaptive to the environment and floor construction, calculating when to start heating.
  • Includes window open function.
  • Optimum heat management with both ambient and floor sensors.
  • Operating in floor sensing mode, room sensing mode, room sensing mode with floor temperature limiter or in regulator mode without using any sensor.
  • With dual navigation, swipe and touch, large icons in central menu.
  • Scroll for list selection and wheels for temperature selection.
  • WIFI connectivity to control, program and monitor efficiency through the SENZ-WIFI app (iOS and Android).
  • Change of program and temperature via smart phone or tablet.
  • Controls up to 32 zones (rooms and/ or houses).

Self-regulating, underfloor heating cables

T2Red.

Guidance for specification option:

  • Power output: 50–100 W/m² [5 -15 W/m] (approximately).
  • Voltage: 230 V AC.
  • Maximum heating cable circuit length: 100 m at 10 A.
  • Cold lead: Not required, direct connection possible in junction box or to thermostat.
  • Electrical protection: 10 A circuit breaker (Type C).
  • Earth leakage current (RCD): 30 mA, 100 ms.
  • Minimum bending radius: 35 mm.
  • Maximum self-generating temperature: 45°C.
  • Maximum exposure temperature: 65°C.
  • Size (w x h): 6.0 mm x 8.7 mm (maximum).

T2Red with T2Reflecta (grooved, thermally insulated, aluminium-covered plate).

Guidance for specification option:

  • As T2 Red, with Reflecta plate.
  • Material: Aluminium (0.5 mm thickness with 12.5 mm EPS).
  • Plate size: 720 x 400 x 13 mm.
  • End plate: 100 x 400 x 12.5 mm.
  • Fire classification: DIN 4102-B1.
  • U-value: 2.33 W/m²K.
  • Thermal conductivity: 0.033 W/(mK).
  • Thermal expansion coefficient: 2.4 x 105 1/K.
  • Long term pressure capability: 140 kPa (14 000 kg/m²).

Constant wattage custom underfloor heating mats

Not required.

RAYCHEM Custom Mat.

Guidance for specification option:

Custom designed, please provide an accurate drawing of the room, including full onsite dimensions, desired thermostat location and all obstructions identified. Consult manufacturer for further information.

Constant wattage standard underfloor heating mats

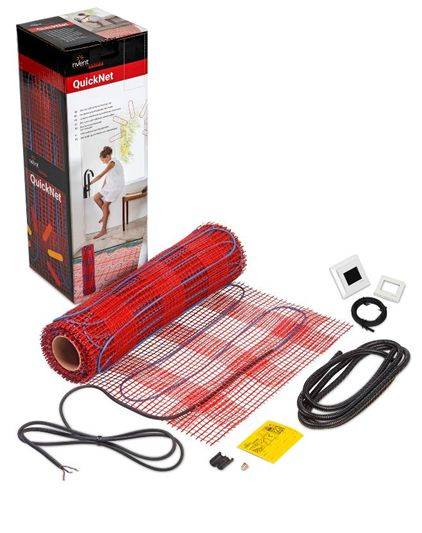

T2QuickNet 90.

Guidance for specification option:

Delivering 90 W/m², available in a range of sizes 1-12 m² (each with 2.5 m cold lead) and capable of 33 m² maximum heating cable area (for 3000 W load) per 13 A electrical circuit.


  • Voltage: 230 V AC.
  • Mat material: 50 mm wide fibre glass (self-adhesive).
  • Heating cable diameter: 3.4 mm.
  • Minimum bending radius: 30 mm.
  • Constant wattage cable: 8.1 W/m.
  • Cable spacing: 90 mm.
  • Insulation outer jacket: Fluoropolymer.
  • Maximum load without contactor to thermostat: 3000 W.
  • Maximum heated area for 3000 W load: 33 m².
  • Cold lead length: 2.5 m.
  • Electrical protection circuit breaker: 13 A (maximum).
  • Earth leakage current (RCD): 30 mA, 100 ms.
  • Thermostat: NRG-DM.


T2QuickNet 160.

Guidance for specification option:

Delivering 160 W/m², available in a range of sizes 1-12 m² (each with 5 m cold lead) and capable of 18 m² maximum heating cable area (for 3000 W load) per 13 A electrical circuit.


  • Voltage: 230 V AC.
  • Mat material: 50 mm wide fibre glass (self-adhesive).
  • Heating cable diameter: 3.4 mm.
  • Minimum bending radius: 30 mm.
  • Constant wattage cable: 11.2 W/m.
  • Cable spacing: T2QuickNet 90: 70 mm.
  • Insulation outer jacket: Fluoropolymer.
  • Maximum load without contactor to thermostat: 3000 W.
  • Maximum heated area for 3000 W load: 18 m².
  • Cold lead length: 5 m.
  • Electrical protection circuit breaker: 13 A (maximum).
  • Earth leakage current (RCD): 30 mA, 100 ms.
  • Thermostat: NRG-DM.

Manufacturer guidance

Complete with two wire constant wattage cables (to ensure negligible electro-magnetic field generation), Teflon inner and LSZH outer jacket, electrical braid (to provide electrical protection) and a flat cold lead cable (to enable a lower profile installation). Pre-terminated heating cable, fixed within the mat and held in place by the matting itself and not by fixing tape (to avoid air gaps and associated potential hot spots). The overall thickness shall be no more than 3 mm (including the mat base). The heating cable shall be easily detachable from the mat (to lay loose cable around obstacles). The underfloor heating mat shall be self-adhesive and PVC free.


Constant wattage underfloor heating cables

CeraPro.

Guidance for specification option:

  • Heating cable: 11 W/m.
  • Power output: Dependent on cable spacing, 100–150 W/m² recommended.
  • Voltage: 230 V AC.
  • Minimum heater spacing: 50 mm.
  • Outer jacket material: Robust, durable fluorpolymer.
  • Connecting cable length: 2.5 m.
  • Heating cable external diameter 3.4 mm.
  • Minimum bending radius: 30 mm.
  • Approvals: CE marked, tested to IEC60800 heating cable standard, UkrSEPRO and EAC.
  • Thermostat: NRG-DM, NRG-Temp or GREEN LEAF.

T2Blue 10 W.

Guidance for specification option:

  • Voltage: 230 V AC.
  • Circuit breaker: 13 A (maximum).
  • Fault current switch: 30 mA, 100 ms.
  • Maximum load without power contactor: 3000 W.
  • Minimum bending radius: 30 mm.
  • Minimum heater spacing: 50 mm.
  • Maximum heating cable length: 200 m.
  • Cold lead: 2.5 m.
  • Rated maximum temperature: 65°C.
  • Heating cable external diameter: 5.5 mm.
  • Outer jacket material: LSOH.
  • Heating conductor insulation: Fluorpolymer.
  • Length of connecting cable: 2.5 m.
  • Approvals VDE, SEMKO, CE, UkrSEPRO and EAC.

T2Blue 20 W.

Guidance for specification option:

  • Voltage: 230 V AC.
  • Circuit breaker: 13 A (maximum).
  • Fault current switch: 30 mA, 100 ms.
  • Maximum load without power contactor: 3000 W.
  • Minimum bending radius: 30 mm.
  • Minimum heater spacing: 50 mm.
  • Maximum heating cable length: 115 m.
  • Cold lead: 2.5 m.
  • Rated maximum temperature: 65°C.
  • Heating cable external diameter: 5.5 mm.
  • Outer jacket material: LSOH.
  • Heating conductor insulation: Fluorpolymer.
  • Length of connecting cable: 2.5 m.
  • Approvals VDE, SEMKO, CE, UkrSEPRO and EAC.


T2Green.

Guidance for specification option:

Consult manufacturer for details.
