Application

  • Suitable for heavy duty applications and for high frequency use
  • Lift off design allows easy installation and removal of doors
  • Supplied handed where one leaf has a fixed pin and the opposite leaf can be lifted on and off the fixed pin
  • Available in half leaf and full leaf
  • Half leaf design reduces material removed from door on installation

Description

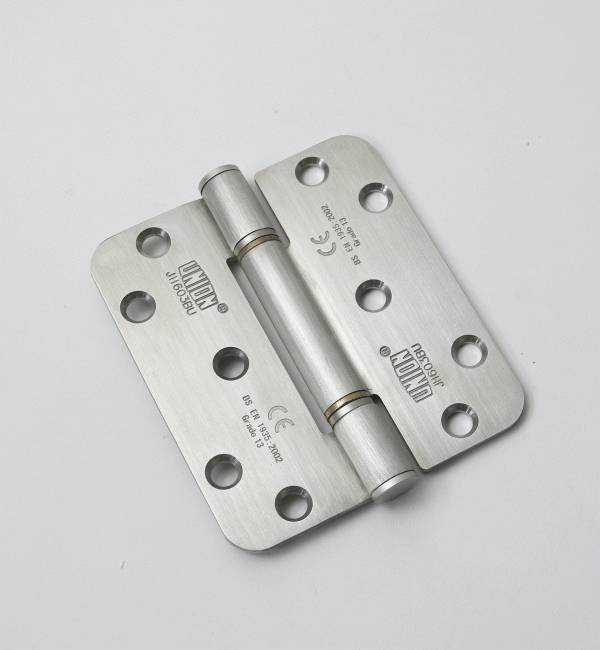

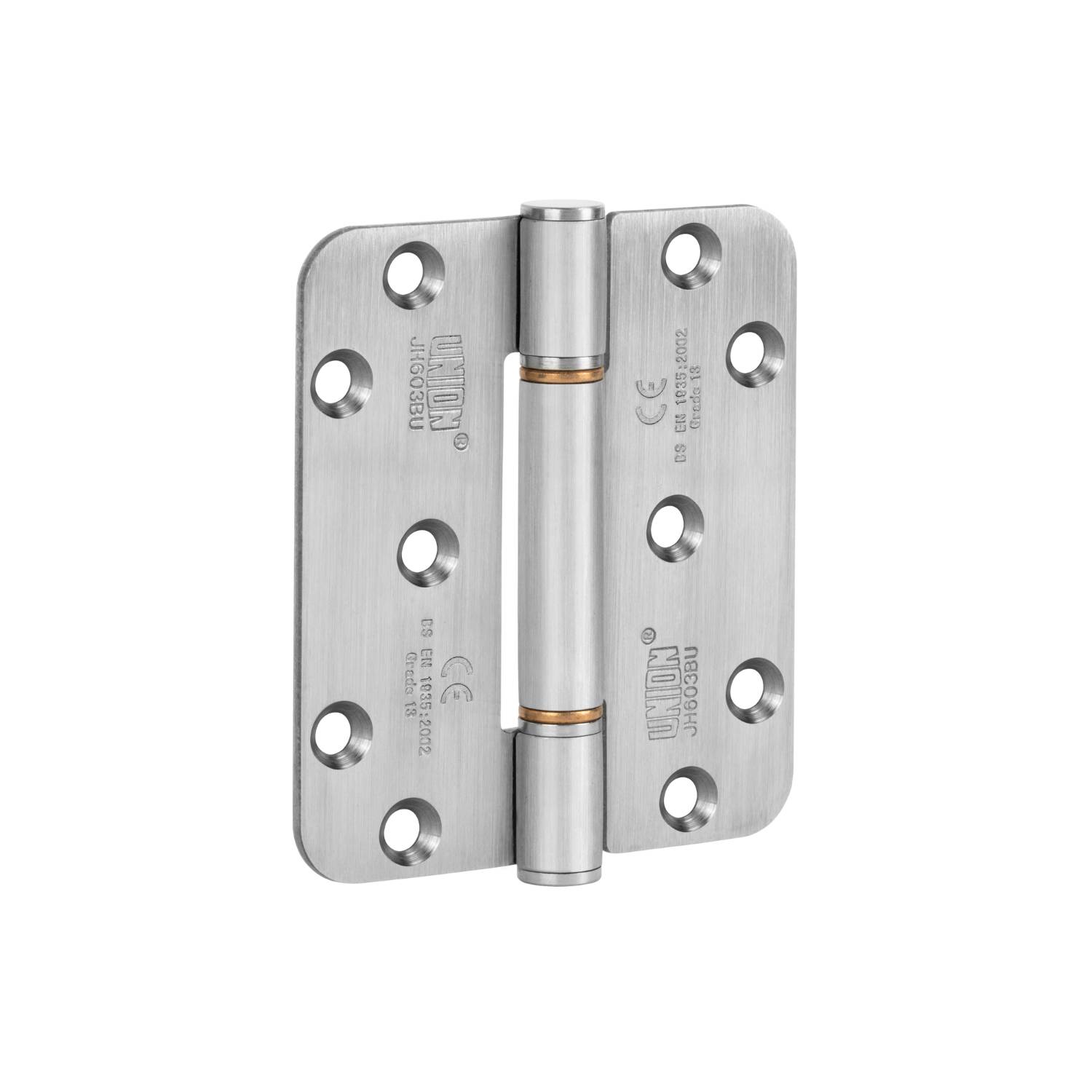

The UNION PowerLOAD™ 601, 602 and 603 models are fixed pin butt hinges for increased strength and outstanding performance whilst the 604 and 605 models both have a lift-off feature to enable easy removal of the door for maintenance. All offer a 180° angle of opening.

Aesthetically designed, the PowerLOAD™ range is built for exceptionally long life (with a 25 year guarantee), durability and low maintenance.

General information

Color

Silver

Finish

Zinc plated

Material

Stainless steel

Shape

Rectangle

Warranty description

25 year

Uniclass

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/310 Single-axis door hinges

Product range

UNION Hinges

Specification data - Single axis door hinges

Product Reference

601 Butt Hinge

Guidance for specification option:

Tested to BS EN 1935: 2002, grade 13. 160 kg door weight (maximum).

602 Butt Hinge

Guidance for specification option:

Tested to BS EN 1935: 2002, with 20 mm projection. 160 kg door weight (maximum).

603 Butt Hinge

Guidance for specification option:

Tested to BS EN 1935: 2002, grade 13. 120 kg door weight (maximum).

604 Lift-off Hinge

Guidance for specification option:

Tested to BS EN 1935: 2002, grade 11. 80 kg door weight (maximum).

605 Lift-off Hinge, Left Handed

Guidance for specification option:

Tested to BS EN 1935: 2002, grade 11.

605 Lift-off Hinge, Right Handed

Guidance for specification option:

Tested to BS EN 1935: 2002, grade 11.

Type

Radius corner

Square corner

Guidance for specification option:

Not 604 Lift-off hinge.

Finish

Zinc plated

Standard product features

Material:

1.4301 (304) stainless steel provides improved corrosion resistance. Bright zinc plate finish in carbon steel variant.

Sustainability data

Material

Stainless steel
