Suitable for tying masonry to steel columns.

Description

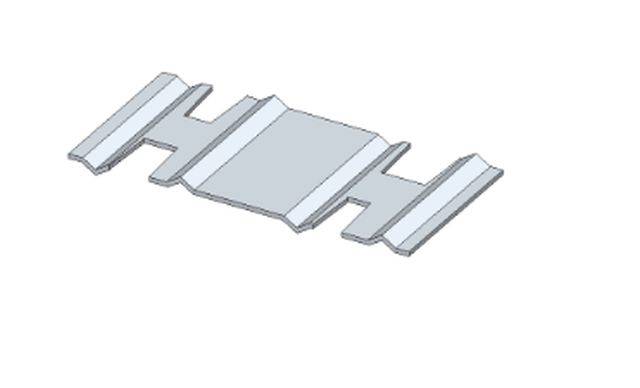

Universal column tie which provides a simple, time-saving solution for tying masonry to steelwork.


Features and benefits:

  • Easy to handle.
  • Good pull-out strength.
  • Four different fitting options available.
  • Exceeds the requirement of BS 5628 for a Type 2 tie.
  • Ease of installation with no fitting tools or equipment required.
  • Manufactured from high quality grade 1.4301 (304) stainless steel.
  • Simpler to use than traditional drilling or shot firing ties or frame cramps.
  • Provide effective restraint between the inner and outer leaves of masonry cavity walls.
  • Variations in notch sizes allow the tie to be easily slotted around the flange of a column.
  • Flange to be painted in bitumen coating if tie is used with untreated carbon steel structural steelwork.

General information

Color

Silver

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304).

Shape

Other

Length

152 mm

205 mm

Width

73 mm

Uniclass

Pr_20_85_84_46 Lateral restraint tiesPrimary

CAWS

F30/220 Wall ties

F30/24 Cavity wall ties

Specification data - Lateral restraint ties

Material

Stainless steel, grade 1.4301 (304).

Tie type

Column tie.

Form of ties

Rectangular.

Dimensions

-

Length

152 mm.

205 mm.

Other.

Guidance for specification option:

For special order, consult manufacturer for details.

End types

Four different slots to suit differing flange thicknesses.

Thickness

2 mm.

Width

73 mm.
