Urban Bollard
Verified by manufacturer 5 months ago

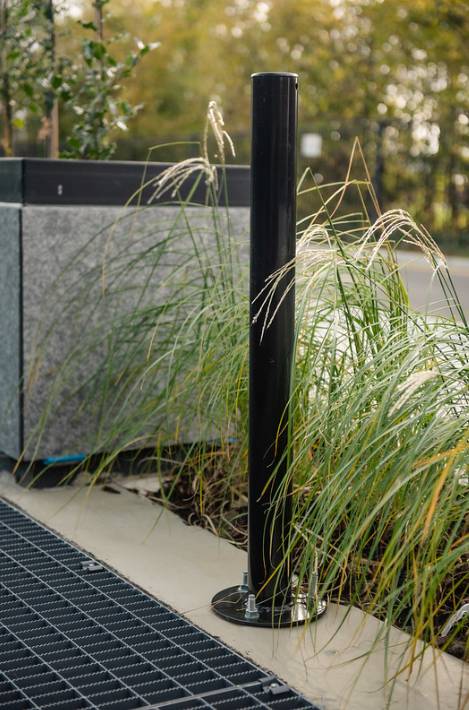

Urban bollard Ø76, anchoring with base plate - 585-900A
Urban bollard Ø76, anchoring with base plate - 585-900A
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
FSC
Certificate type
Steel bollard available in two diameters and various anchoring options.
Application
Suitable for outdoor use.
Description
Urban bollard comes in two sizes and can be supplied with or without a chain or rope attachment.
Features and benefits:
- Part of the Urban range.
- Two diameters - Ø76 mm and Ø127 mm.
- Base plate, concreted or demountable options.
- Award for design excellence.
- Lifetime warranty against rust.
- 15 year warranty on powder-coating.
- Spare parts are available if required.
- Corrosion class C5-M.
- Nordic Swan Ecolabel, Intertek and Climate Compensated Organisation certifications.
General information
Color | Grey Other Guidance for specification option: Powder-coating available in over 200 RAL colours. Consult manufacturer and insert requirements. |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Other |
Width | 76 mm 127 mm |
Height | 900 mm |
Uniclass | |
CAWS | Q50/196 Removable bollards Q50/31 Bollards Q50/190 Bollards |
Specification data - Carbon steel bollards
Dimensions | |
Size and profile | Ø76 mm. |
Height | 900 mm. |
Post top | Flat. |
Post base | Base plate.Guidance for specification option: Type A - Base plate. |
Finishes | |
Applied finish | Hot-dip galvanized.Hot-dip galvanized and powder-coated. |
Colour | Grey.Guidance for specification option: Galvanized finish. RAL colour.Guidance for specification option: Powder coated finish, consult manufacturer and insert requirements. |
Accessories | Chain attachment.Guidance for specification option: Consult manufacturer and insert requirements. Rope attachment.Guidance for specification option: Consult manufacturer and insert requirements. Not required. |
Weight | 8 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 26.66 kg CO₂ eq/unit Self declared Guidance for specification option: 585-900A - 26.66 kg CO2. 585-900C - 26.66 kg CO2. 588-900A - 59.68 kg CO2. 588-900C - 53.62 kg CO2. Manufacturer guidanceDepending on model. |
Recyclability | Partly recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 2.69 % |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 9001 Quality Management
ISO 9001
FSC
FSC Chain of Custody Certificate
