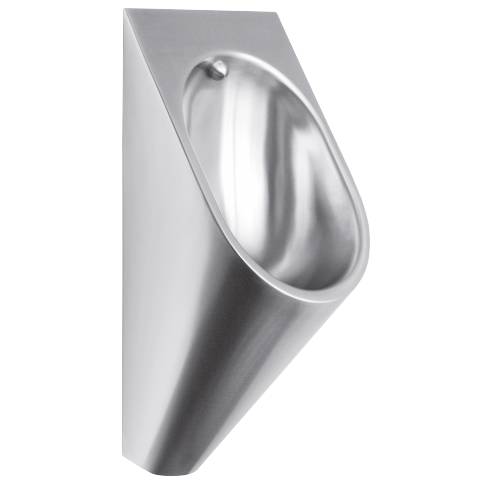

Urinal - CMPX538P

Verified by manufacturer over a year ago

KWC DVS Limited

Single urinal for wall mounting.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Single urinal for wall mounting.

Description

Single urinal for wall mounting with an oval bowl.


Features and Benefits:

  • Hidden horizontal outlet towards wall, mounting and fixing conform to EN 80 and hidden screws.
  • Includes trap DN 50, mounting bracket and domed waste.
  • Has a urinal pod with stainless steel spreader 1/2" for duct mounted flush valve.
  • CE Certified.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Guidance for specification option:

grade 1.4301 (304)

Shape

Oval

Length

700 mm

Width

313 mm

Height

312 mm

Warranty description

Five year

Uniclass

Pr_40_20_93_82 Wall-hung urinalsPrimary

Specification data - Wall-hung urinals

Urinal type

I.

Flushing device

Guidance for specification option:

Urinal pod with stainless steel spreader 1/2" for duct mounted flush valve.

Form

Bowl.

Guidance for specification option:

Wall mounted.

Materials

-

Body

Stainless steel.

Guidance for specification option:

grade 1.4301 (304)

Finish and colour

Satin.

Water supply, overflow and waste holes

-

Waste

Domed waste.

Product Reference

(CMPX538P) 205.0000.047

Sustainability data

Contains Red List materials

No

Country of product manufacture

South Africa

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
