URSA FRAMETEC 35 - Timber Frame Insulation

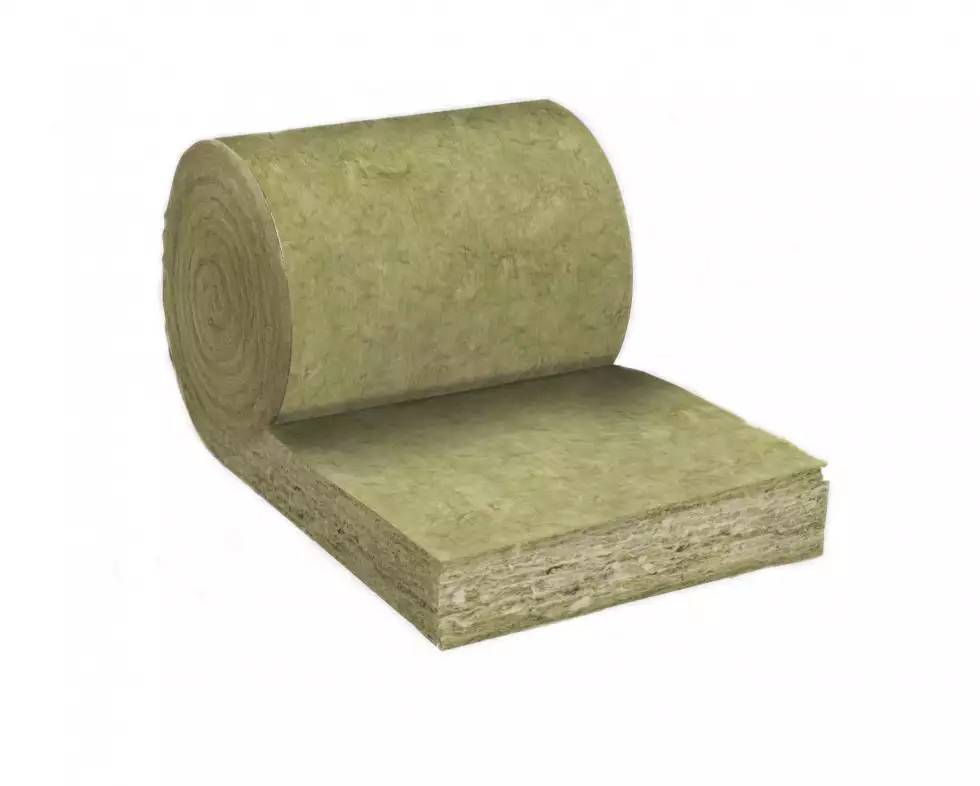

URSA FRAMETEC 35 is a non-combustible glass mineral wool insulation roll. The flexible roll is cut at 2 x 580 mm widths to allow friction fitting between common stud/rafter spacings, minimising gaps at joints and reducing on-site cutting and waste.

Thermal Conductivity:

Declared thermal conductivity (lambda (λ) value) of 0.035 W/m·K.

Fire Classification:

Deemed non-combustible with a fire classification of Euroclass A1 (the highest possible rating) when tested to EN 13501-1:2018 Reaction to Fire.

Density

Manufactured at a nominal density of 22 kg/m³.

Vapour Resistivity

The product has a nominal vapour resistivity of 5 MN·s/g·m.

Environmental Credentials

• Generic BRE Green Guide Rating of A+.
• Manufactured from up to 73% recycled glass.
• Contains no ozone-depleting substances or greenhouse gases.

Standards and Approvals

Manufactured in accordance with:

• EN 13162:2012+A1:2015 Thermal insulation products for buildings - Factory made mineral wool (MW) products.
• ISO 9001:2015 - Quality Management Systems (QMS). Certificate number: 01 100 1300949.
• ISO 14001:2015 - Environmental Management Systems (EMS). Certificate number: BQA_EMS_C_2016673.
• CE Marked to EN 13162:2012+A1:2015. Certificate number: 1163-CPR-0051.

EUCEB (European Certification Board of Mineral Wool Products)

All URSA glass mineral wool products are made of non-classified fibres and are certified by EUCEB. EUCEB is a voluntary initiative by the mineral wool industry. It is an independent certification authority that guarantees that products are made of fibres which comply with the exoneration criteria for carcinogenicity (Note Q) of the Regulation (EC) 1272/2008. Certificate number: BEUC-511-46-376-46.
