V131 HCP Cantilevered Wall Mounted WC - Stainless Steel With Concealed Cistern
Verified by manufacturer today

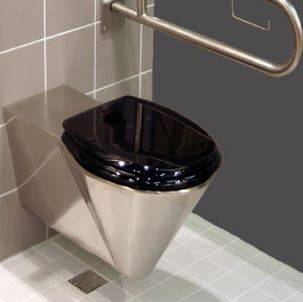

Wall hung stainless steel wheelchair accessible WC for use with concealed cistern.
Application
Designed for applications including public, commercial, industrial, domestic and anti-vandal environments.
Suitable for:
Commercial Projects
Bathroom
Washroom
Toilet
Description
Stainless steel wheelchair accessible wall hung WC.
Features and benefits:
- Security flushing rim.
- Fully enclosed pan and trap.
- 38 mm diameter push-fit inlet.
- 100 mm diameter trap – Designed for 6 litre flush.
- Complies with DIN 1385.
- Low maintenance, hygienic and very durable.
- WC traps can be specified separately.
- Available without wall fixing plate for through wall fixing from behind.
General information
Color | Silver |
Finish | Satin Brushed |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 700 mm |
Width | 360 mm |
Height | 345 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Product range |
Specification data - WC suites
Form | Wall mounted WC pan and cistern. |
Materials | |
Body | Stainless steel to DIN 1.4301/ AISI 304. |
Finish and colour | Brushed stain, silver. |
Sizes | |
Cistern capacity | 6 L. |
Pan height | 345 mm.Guidance for specification option: 700 mm projection for use in facilities for disabled. |
Execution | Security flushing rim. |
WC Seat | Drilled. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel
Stainless Steel Sanitaryware - A Comprehensive and Economic Range of Safe, Highly Durable, Hygienic Sanitary Appliances, Including WCs, Basins, Urinals, Mirrors, Baths and Bins

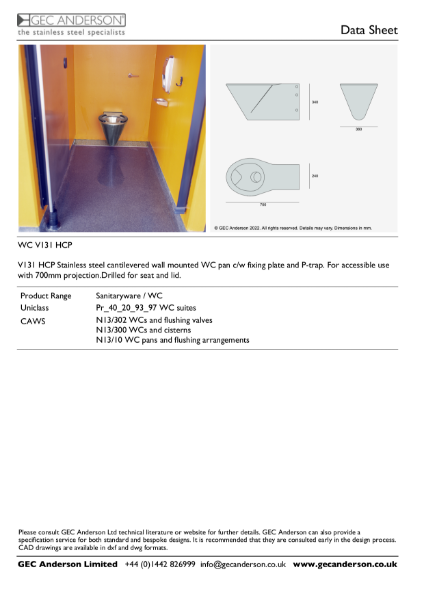

GEC Anderson Data Sheet - WC V131 HCP
