V240 Wall Mounted Washing Trough - Stainless Steel

Verified by manufacturer 6 months ago

Anderson, GEC Ltd

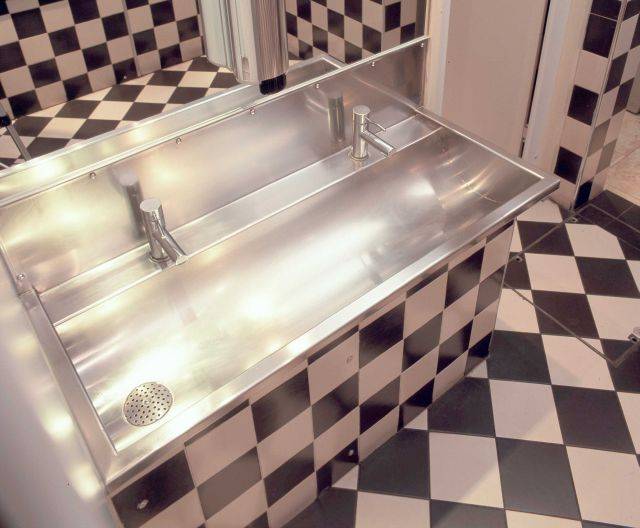

Wall mounted stainless steel washing trough.

Jump to:
+44 (0)1442 826999 Website

Application

Designed for applications including public, commercial, industrial, domestic and anti-vandal environments.


Suitable for:

Commercial Projects

Toilet

Washroom

Description

Stainless steel wall hung washing trough.


Features and benefits:

  • Low maintenance, hygienic and very durable.
  • Made to measure in any size (600–3000 mm) with standard sizes available from stock.
  • Triangulated wall brackets, splashback and continuous rear shelf.
  • Tapholes, as required. (Size and position to be specified).
  • Complete with 38 mm diameter left or right outlet (125 mm from end, to be specified).
  • Brushed satin EN 1.4301 stainless steel.
  • Supplied ready for plumbing.
  • Boxing for corners available (eg. for L-shape sections).
  • 600 mm space per user is recommended.

General information

Color

Silver

Finish

Satin

Brushed

Material

Stainless steel

Steel

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

600–3000 mm.

Width

485 mm

Height

403 mm

Warranty description

Five year

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

E20/400 Trough units

N13/346 Washing troughs

Product range

Sanitaryware / Troughs

Specification data - Wash troughs

Form

Wall mounted.

Stations

-

Manufacturer guidance

Insert requirement.

Materials

-

Body

Stainless steel type 1.4301 (304).

Finish and colour

Brushed satin stainless steel to EN 1.4301.

Size

600 x 485 x 403 mm (minimum).

Guidance for specification option:

  • L x D x H.
  • Length: 600–3000 mm (insert requirement).
  • Height: 173 mm (excluding splashback).

Water supply, overflow and waste holes

-

Water supply

No tap holes.

One tap hole in backplate at each user position.

Overflow

None.

Waste

38 mm diameter outlet, at 125 mm from LHS.

38 mm diameter outlet, at 125 mm from RHS.

Integral accessories

Splashback.

Continuous rear shelf.

Accessories

Not required.

Boxing for corners.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
