Vantage® PPS - Rainscreen Cladding System

Verified by manufacturer 4 months ago

BTS Fabrications Limited Third party certifications:
  • BR 135

    BR 135

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

All-in-one through wall solution.

Jump to:
+44 (0)1388 816883 Website

Application

Wide range of applications such as quick build commercial offices, retail, data centres, warehouses and multi-story residential projects.

Description

The Vantage® PPS system is a solution for a wide number of applications, with Paroc Panel System and BTS Facades and Fabrications having partnered to provide a system-based suite of products.

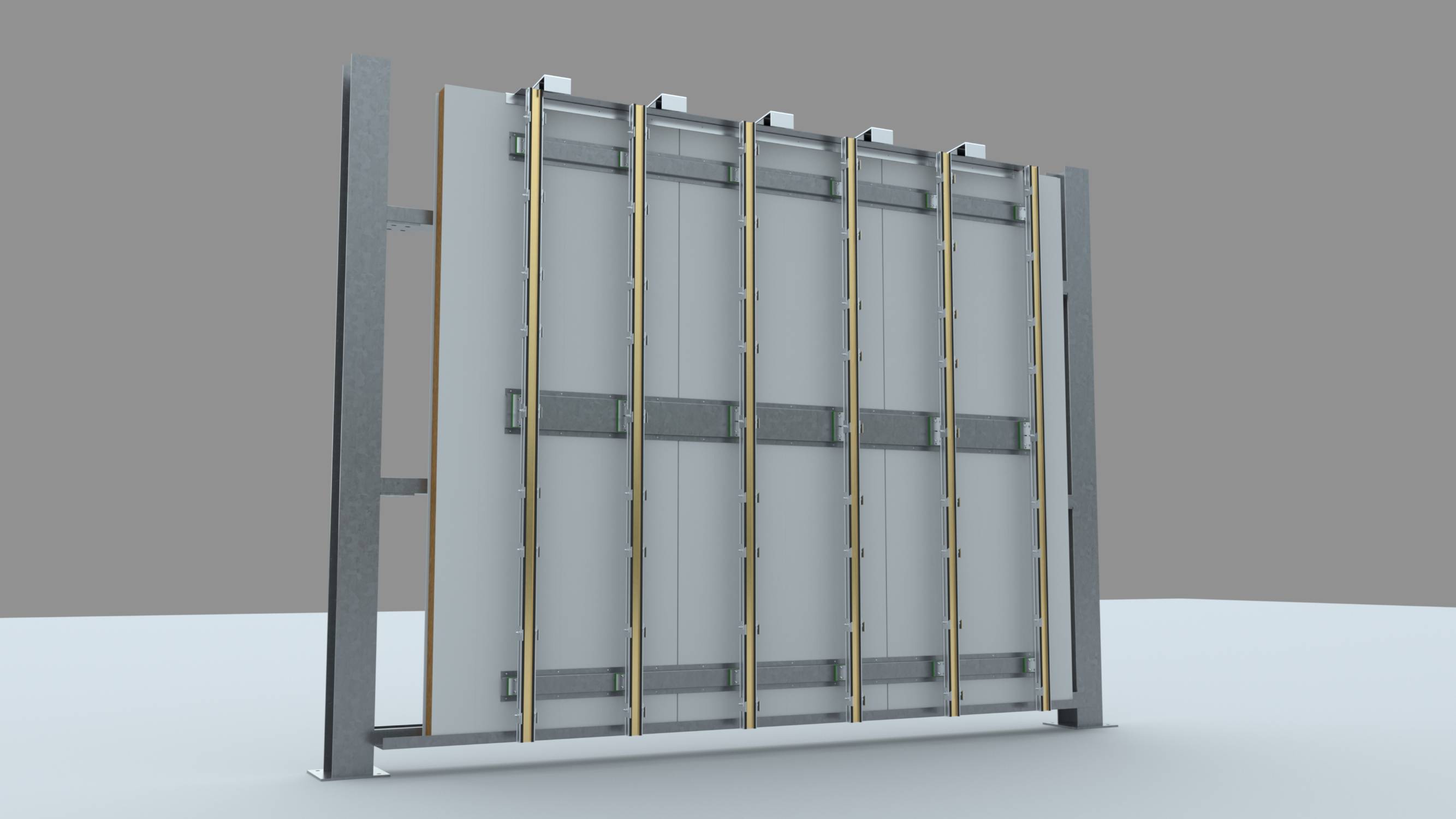

With long-spanning capabilities – able to bridge between primary steelwork – the Vantage® PPS system reduces the need for secondary galvanized steel purlins for significantly faster construction times, reduced material use and potential cost savings. In addition, Vantage® PPS offers reduced cold bridging, good acoustics and, with panels from 80 to 300 mm, a wide choice of thermal insulation options with the respective U-values the choice offers.


Paroc Panel System panels, which provide the air and water-tight structural base to support the BTS rainscreen, are manufactured using AST® Technology that ensures their high tensile strength, reliable longevity, and fire resistance. The BTS Vantage® SF Rainscreen range offers the ultimate flexibility with almost limitless design options.


Features and benefits:

  •  High aesthetics and design flexibility.
  • Complete cradle to cradle sustainability.
  • Built in passive fire protection, non-combustible and limited combustibility rated products A2,s1,D0 rated
  • Ease and speed of installation that Paroc Panel System composite option offers.
  • Weather-tight building envelope early on in the build programme to simplify and accelerate the construction process.
  • Good acoustics, airtightness and weathering.

General information

Material

Mineral wool

Shape

Rectangle

Length

Bespoke

Manufacturer guidance

80—300 mm.

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

Product range

Through Wall System Solutions

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

-

Manufacturer guidance

Mineral wool (supplied by others); insert requirements.

Breather membrane

-

Material

-

Manufacturer guidance

Fire-rated breather membrane (supplied by others); insert requirements.

Fasteners

-

Manufacturer guidance

Supplied by others; insert requirements.

Secondary support structure

Vantage SF support rail/ substructure.

Manufacturer guidance

Insert requirements or omit.

Cavity fire barriers

-

Horizontal

-

Manufacturer guidance

Seek specialist information from specialist manufacturers and insert requirements.

Vertical

-

Manufacturer guidance

Seek specialist information from specialist manufacturers and insert requirements.

Cladding panels

-

Material

Vantage® SF cassette panels, colour.

Guidance for specification option:

3 mm-thick 1050 h14 aluminium.

Polyester powder-coated; consult manufacturer for options and insert requirements.

Panel joints

Manufacturer's standard.

Reveals

-

Manufacturer guidance

Insert requirements or omit.

System accessories

-

Manufacturer guidance

All necessary accessories are available including, flashings, copings, bullnose and drainage channel. Insert requirements.

Standards

To BS 8414-2:2020.

Fire classification

Euroclass A2-s1,d0.

Panel length

80—300 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Finland

Country of product manufacture

Finland

Recyclability

100%

Third party certifications

Third party certifications

BR 135

BR 135

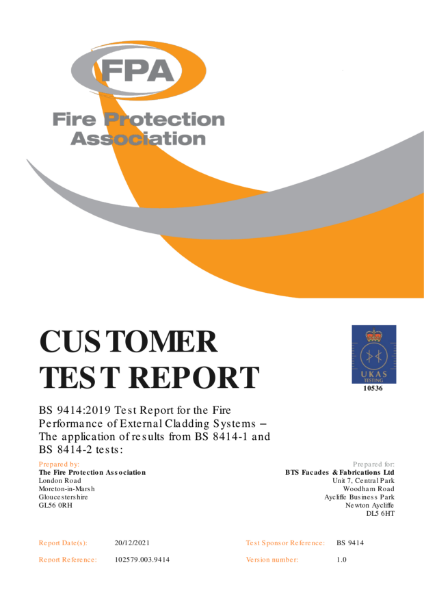

FPA 102579.003.9414

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

BTS ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

BTS ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

BTS ISO 9001:2015
