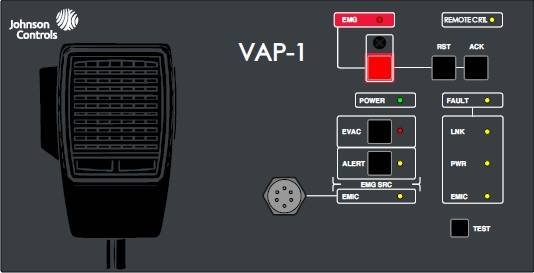

VAP1 Voice Alarm Panel

The Voice Alarm Panel VAP 1 is designed to provide JCI NEO with evacuation system controls for different areas.

It allows to know the condition of the system and broadcast both live and pre-recorded alarm and evacuation warnings through up to 56 selection memories of evacuation zones.

This is possible because it can equip up to seven expansion keyboards with eight zone memories each one. Moreover, expansion keyboards available allow it to adjust to the special features of each system.

The equipment also offers the chance to choose the source of the power supply between local or supplied through the ACSI bus. The ACSI bus allows a maximum total wiring of 1000 m (914.4 yrd) and offers priority levels for the devices connected in bus mode.

It has functions such as volume control, dynamic sound adjustment and programmable buttons that allow other system functions such as pre-recorded messages broadcasting. It has a metallic chassis that provides stability and protection against damage. All the buttons are designed for intensive use.

Features and benefits:

• Up to 56 group memories of up to eight zones per memory (448 zones of the system).
• Prior notice tone.
• Volume adjustment.
• Power supply indicator.
• Emergency condition general indicator.
• Fault condition general indicator.
• Link with system fault indicator.
• Power supply fault indicator.
• Emergency microphone fault indicator.
• Broadcasting of voice evacuation message indicator.
• Broadcasting of voice evacuation recorded message indicator.
• Broadcasting of voice alarm message indicator.
• Remote control indicator.
• Emergency controls, Reset, Acknowledge, Test, Alarm message, Evacuation message.
• Side port to connect up to seven expansion keyboards.
• Priority configuration and operating parameters.
• Local or peripheral power supply.
• Wall or 19” rack installation.
• Dynamic transducer with moving coil.
