VariusMed Multi-Purpose

Verified by manufacturer over a year ago

(ANMW0033) 203.0590.634

KWC DVS Limited Variant:

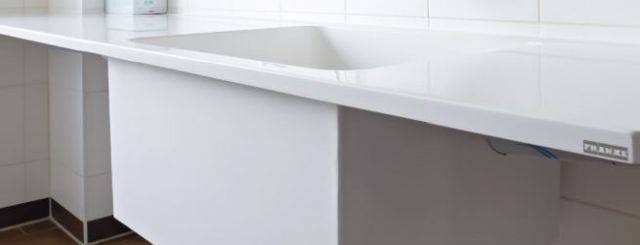

Multi-purpose medical wash basin.

Jump to:
+44 (0)1246 458900 Website

Application

Suitable for sanitary rooms in healthcare environments.

Description

Multi-purpose medical wash basin manufactured from MIRANIT granite composite with an alpine white gelcoat finish, to provide a stylish, clean and hygienic solution.


Features and benefits:

  • The pore-free, smooth gelcoat surface is dirt repellent and easy to clean.
  • The material features a high resistance to impact and abrasion, high stability towards changes in water temperature (temperature resistant up to 80°C) and resistance to chemical stresses such as those caused by the use of disinfectants.
  • A front splashguard edge across the entire width of the basin prevents water from dripping and therefore keeps hygiene to a maximum.
  • Can be manufactured to suit project requirements. Specify the number of moulded bowls (three maximum), basin length, bowl distance, shape and splash guard edge in order to suit any installation.
  • Includes an integral back panel with integrated brackets and fixing materials.
  • Overflow not included.

General information

Length

500 mm

Width

600 mm

Height

350 mm

Uniclass

Pr_40_20_96_18 Countertop washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Product range

Washbasins

Specification data - Countertop washbasins

Form

Counter top.

Materials

-

Body

Miranit granite composite.

Guidance for specification option:

Thickness: 25 mm.

Size

375 x 600 mm.

Guidance for specification option:

Overall (h x d).

Product Reference

(ANMW0033) 203.0590.634

Guidance for specification option:

Single bowl. Width: 1000 mm.

(ANMW0034) 203.0590.635

Guidance for specification option:

Double bowl. Width: 2000 mm.

(ANMW0035) 203.0590.636

Guidance for specification option:

Triple bowl. Width: 3000 mm.

Bowl

Single.

Guidance for specification option:

Width: 1000 mm.

Length

700–3600 mm.

Accessories/ Other requirements

(F2132) 230.0000.039.

Guidance for specification option:

Standpipe strainer waste.

(ZANMW0018) 203.0590.141.

Guidance for specification option:

Standpipe waste.

(ZANMW0038) 203.0590.153.

Guidance for specification option:

Reinforced stainless steel bracket.

(ZANMW0039) 203.0590.154.

Guidance for specification option:

Reinforced white coated steel bracket.

Spacing

800 mm minimum centre-to-centre.
