VEBOX Double - Storage Cabinet
Verified by manufacturer over a year ago

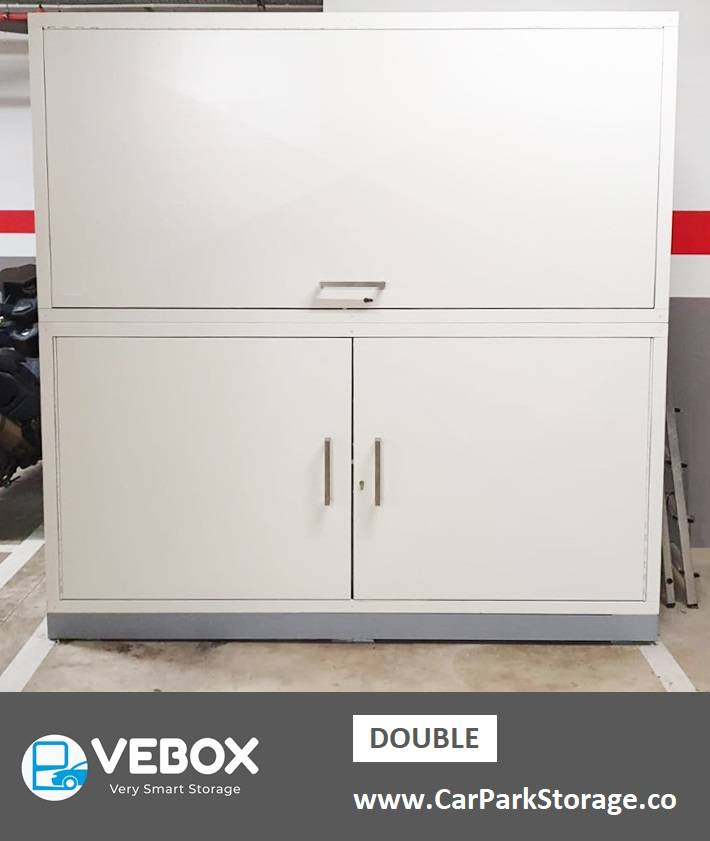

VEBOX-01-COMPACT-DOUBLE Storage Cabinet
VEBOX-01-COMPACT-DOUBLE Storage Cabinet
Car park storage cabinet.
Application
Storage for standard household and commercial goods, such as:
- Bikes
- Suitcases
- Golf bags
- Toys
- Clothing
- Archive boxes
- Furniture
Description

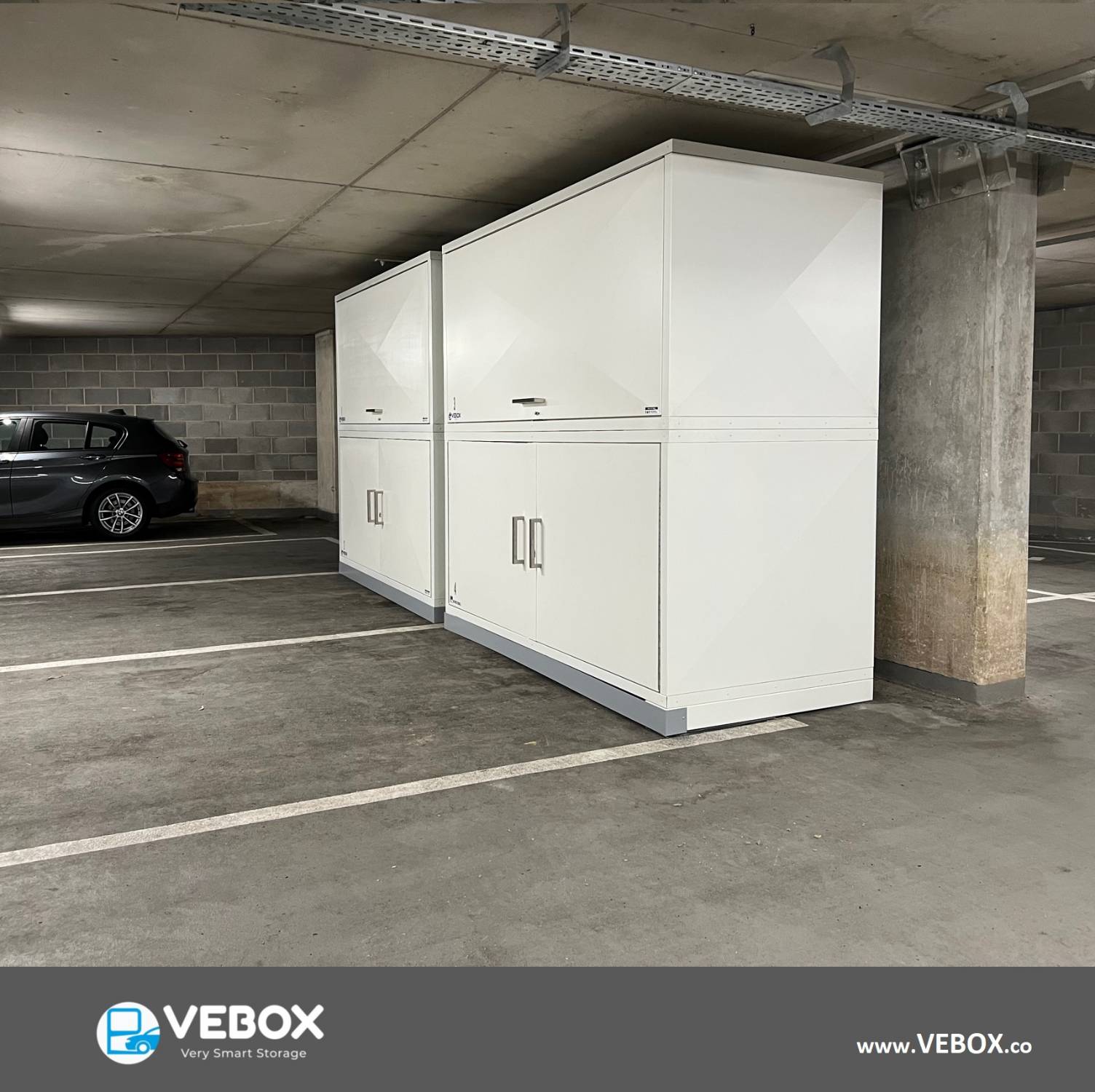

Free standing or fixed storage cabinet for use in car park spaces or other areas in car parks or buildings.
Features and benefits:
- Sideways stacked design.
- Contents maximum weight 300 kg per storage box.
Fire Performance:
- Manufactured from A1/A2 materials.
- Whole unit (box and legs) fire tested by the Fire Protection Association (UK) as delivering over 60 minutes internal fire protection.
General information
Color | White Other |
Finish | Coated |
Material | Steel |
Shape | Rectangle Guidance for specification option: Rectangular cube. |
Length | 2300 mm |
Width | 1100 mm |
Height | Bespoke |
Warranty description | Six year Guidance for specification option: Full unit warranty. Either defective part or full unit replacement. |
Uniclass | |
CAWS | Q50/212 Cycle lockers N10/220 Lockers |
Specification data - Lockers
Locker type | Storage. |
Dimensions | 2300 x 1100 x 1800 mm. |
Material | Galvanized steel.Guidance for specification option: Box: 1.5 mm thick. |
Finish | Wet paint coating.Intumescent coating.Guidance for specification option: For maximum fire and corrosion protection. |
Colour | White.Guidance for specification option: RAL 9010. Standard RAL.Guidance for specification option: Any standard RAL available. |
Integral accessories | Key lock. Guidance for specification option: Stainless steel hook bolt Europrofile deadlock. Smart lock. Guidance for specification option: Type specified subject to intended building security access system installed at site. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1770 Self declared Guidance for specification option: Net Zero via 1 tree planted per 3 units made. |
Recyclability | Steel |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
