Veeva Curved Seating
Verified by manufacturer 3 months ago
VEE RSV 24 E
VEE RSV 24 E

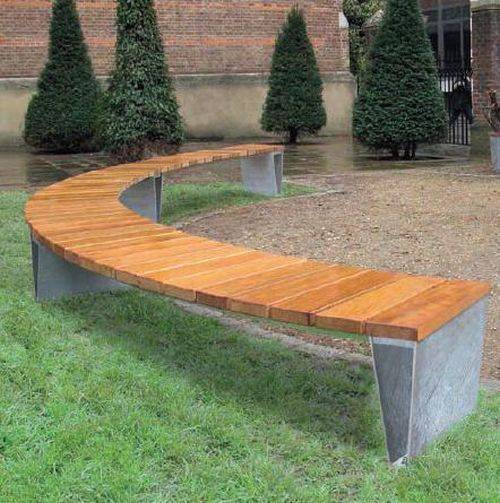

Curved seating with wooden slats.
Application
Suitable for outdoor seating.
Description
The Veeva range is characterized by the wedge-shape seat supports, heavy duty timbers and its array of standard configuration options. It offers independent units and modules that can be joined side-by-side to form longer seating runs in four standard curved sizes. Curved modules can be arranged in full or broken circles and wave-forms.
Features and benefits:
- Backrests are straight, providing a cost-effective add-on feature that is available on all but the smallest radius version.
- Iroko hardwood slats are arranged in a front-to-back orientation.
- Slats are tapered, maintaining parallel gaps between them.
- Also available as curved benches and in straight configurations (specified separately).
General information
Color | Brown Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Powder-coated Smooth Guidance for specification option: Planed iroko hardwood finish. |
Material | Timber Steel |
Shape | Circle Other Guidance for specification option: Straight, Wavy. |
Size | Manufacturer guidanceVarious lengths and radius options available, consult manufacturer literature. |
Warranty description | One year |
Uniclass | |
CAWS | Q50/225 Seats Q50/30 Street furniture |
Product range |
Specification data - Street and site seats
Length | 1.890 m. |
Base | Bolt-down.Guidance for specification option: Steel supports are pre-drilled for bolt-down installation with 2 x M10 fixings (not supplied). |
Material | Standard: Steel frame and iroko timber slats. |
Finish as delivered | Standard: Triple process finish frame and smooth planed slats. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Accessories | Not required.Armrests. |
Material/ Finish | Iroko timber, smooth planed finish. Guidance for specification option: Standard. Iroko timber, UV protective finish. Manufacturer guidanceSlats. |
Frame | Steel, triple process finish. Guidance for specification option: Standard. Steel, polyester powder coated finish, RAL. Guidance for specification option: Finished to any RAL colour; insert requirements. |
Armrests | Not required. Required. |
Form | Curved seat, external back rest, end module. |
Radius | 2.4 m. |
Angle | 45º. |
Sustainability data
Country of product manufacture | United Kingdom |
