VELFAC In Juliette Doors
Verified by manufacturer 3 months ago
QA Certificate
Certificate type
ISO 9001 Quality Management
Certificate type

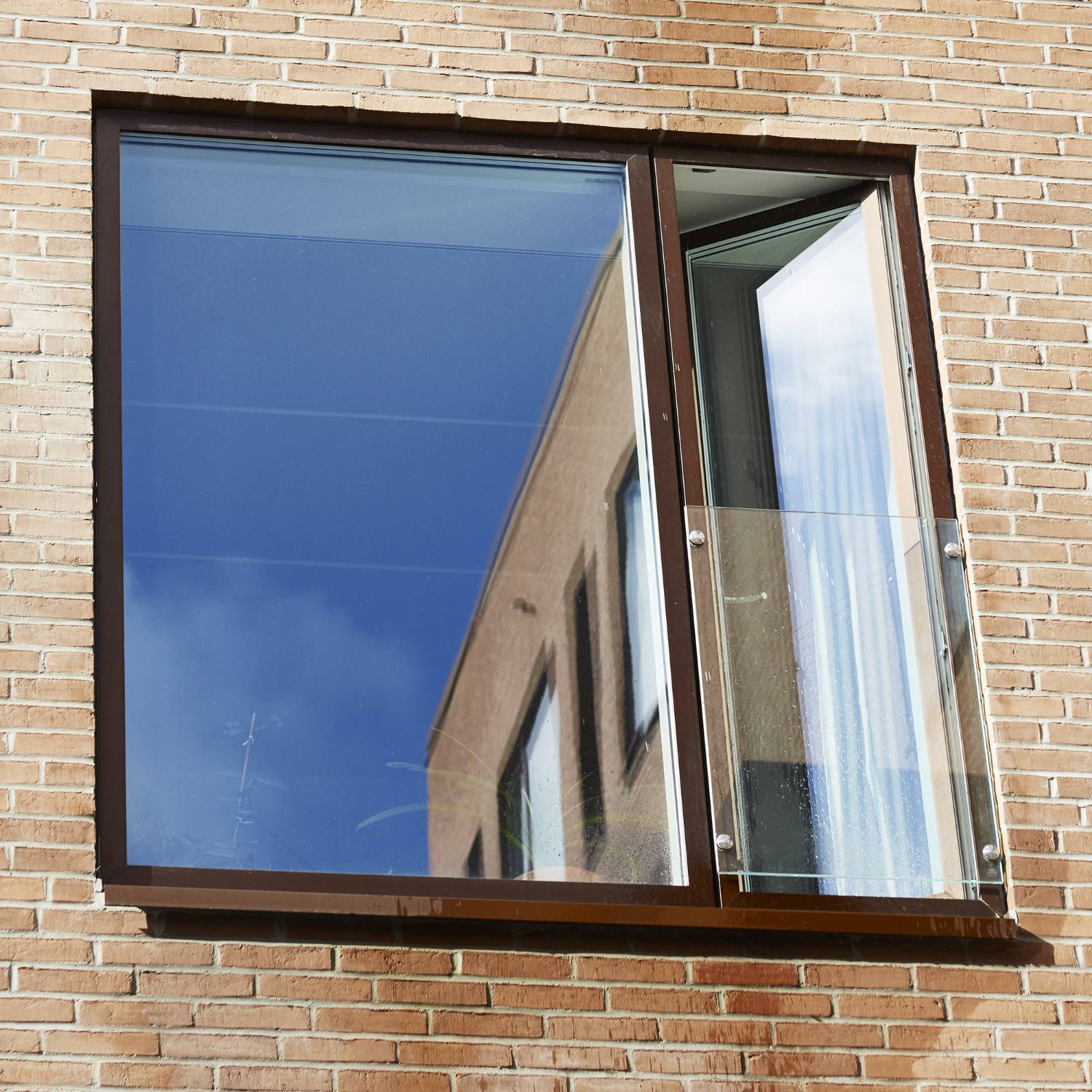

Composite inward opening doors, suitable as Juliette doors for French balconies in multi-storey buildings. Designed to allow safe cleaning of the door from the inside.
Application
Suitable as Juliette doors for French balconies in multi-storey buildings. Designed to allow safe cleaning of the door from the inside.
Composite inward opening doors, which are only sold with an order for VELFAC 200 windows.
Description
Composite timber/ aluminium tilt and turn casement door with 48 mm triple glazing, suitable as Juliette doors for French balconies in multi-storey buildings.
Only sold with an order for the VELFAC 200 system.
Features and benefits:
- Tilt function provides a ventilation gap of 30 mm (approximately).
- Designed to allow safe cleaning of the door from the inside.
- Inward opening of up to 90º.
- Available with safety barrier preparation.
- Composite finish, with aluminium externally and natural wood internally.
- The threshold is supplied in mahogany for extra durability.
- The aluminium sash is durable and should not require repainting.
- The sash provides a ventilation gap at the head.
- Manufactured in accordance with EN 14351-1.
- Tested in accordance with BS 6375-2.
General information
Color | Clear Beige Black Blue Brown |
Finish | Anodized Powder-coated |
Material | Aluminium Guidance for specification option: Extrusion alloy EN AW-6060 or EN AW-6063. Wood Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Product range |
Specification data - Composite doorsets
Standard | External non-fire rated composite doorset UKCA marked in accordance with BS EN 14351-1:2006 and A2:2016. |
Configuration | Guidance for specification option: All units are bespoke please contact manufacturer to discuss, and insert requirements. |
Doorset size | Guidance for specification option: Contact manufacturer to discuss, and insert requirements. |
Performance | |
Acoustic performance | To BS EN ISO 717-3, sound reduction index Rw 33–46. |
Thermal | 0.79 W/m²K. |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Frame | |
Materials | Wood core with aluminium sleeve.Guidance for specification option: 93 mm aluminium external profile coupled with timber mainframe. |
Threshold | 49 mm. |
Door leaf | |
Thickness | 93 mm.Guidance for specification option: Aluminium profile - contact manufacturer for further information. |
Panel details | Glazed panels.Guidance for specification option: Consult manufacturer for details. Sandwich panels.Guidance for specification option: Consult manufacturer for details. |
Glazing | |
Type | In accordance with BS 6262-4, clear triple safety glazing.Guidance for specification option: For systems comprising triple glazing only. |
Beading | |
Type | External. |
Finish | Powder coated to BS 6496.Guidance for specification option: Also in compliance with BS EN 6496, BS EN 6497, & DIN 50939 with applicators to be registered under the European Qualicoat and/or GSB quality assurance schemes. Anodized. |
Colour | |
External | RAL.Guidance for specification option: Polyester powder coated - RAL colours from the Classic K7 range, Granite, NBS range, consult manufacturer for options and insert requirements. Bronze.Guidance for specification option: Anodized. Silver.Guidance for specification option: Anodized. |
Internal | Water-based diffusion open timber surface treatment system.Guidance for specification option: Two layer coating system (impregnation/priming and top coat). The surface treatment system meets EN113, EN152 and EN927. The surface treatment system contains antifungal and anti-rot fungicides. The topcoat meets EN927-6 in terms of UV-protection. The total thickness on visible surfaces is 100μ +/-20. For covering colours gloss is 20 +/-5.
|
Hardware | Espagnolette locking system.Handle with lock.Key operated turn function. |
Accessories | None.Preparation for barrier solution (barrier not supplied). |
Execution | Installing hardware. |
Bead Colour | Guidance for specification option: Consult manufacturer and insert requirements. |
Watertightness | To BS EN 1027, 900 Pa. Guidance for specification option: Class E900 to BS EN 12208. |
Resistance to wind load | To BS EN 12211, 1200 Pa. Guidance for specification option: To BS EN 12210, class 3C. |
Security | Compliant with Part Q of the Building Regulations. |
Glazing bar | 31 mm energy glazing bar. 54 mm energy glazing bar. 60 mm glazing bar. |
Third-party certification | PAS24 certified, Danish window verification and indoor climate label. |
Sustainability data
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceConsult manufacturer. |
Recyclability | Guidance for specification option: Consult manufacturer. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Consult manufacturer. |
Third party certifications
Literature

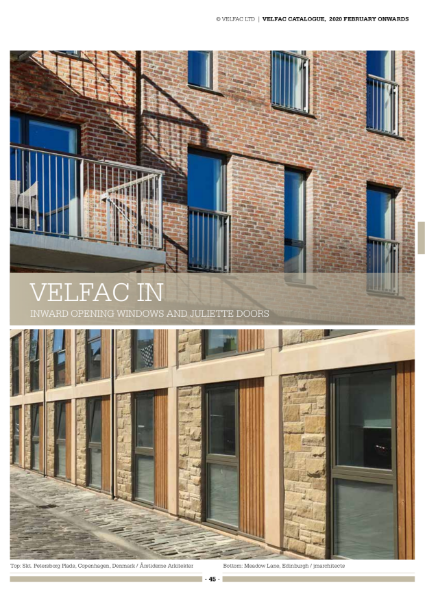

VELFAC In windows and doors
