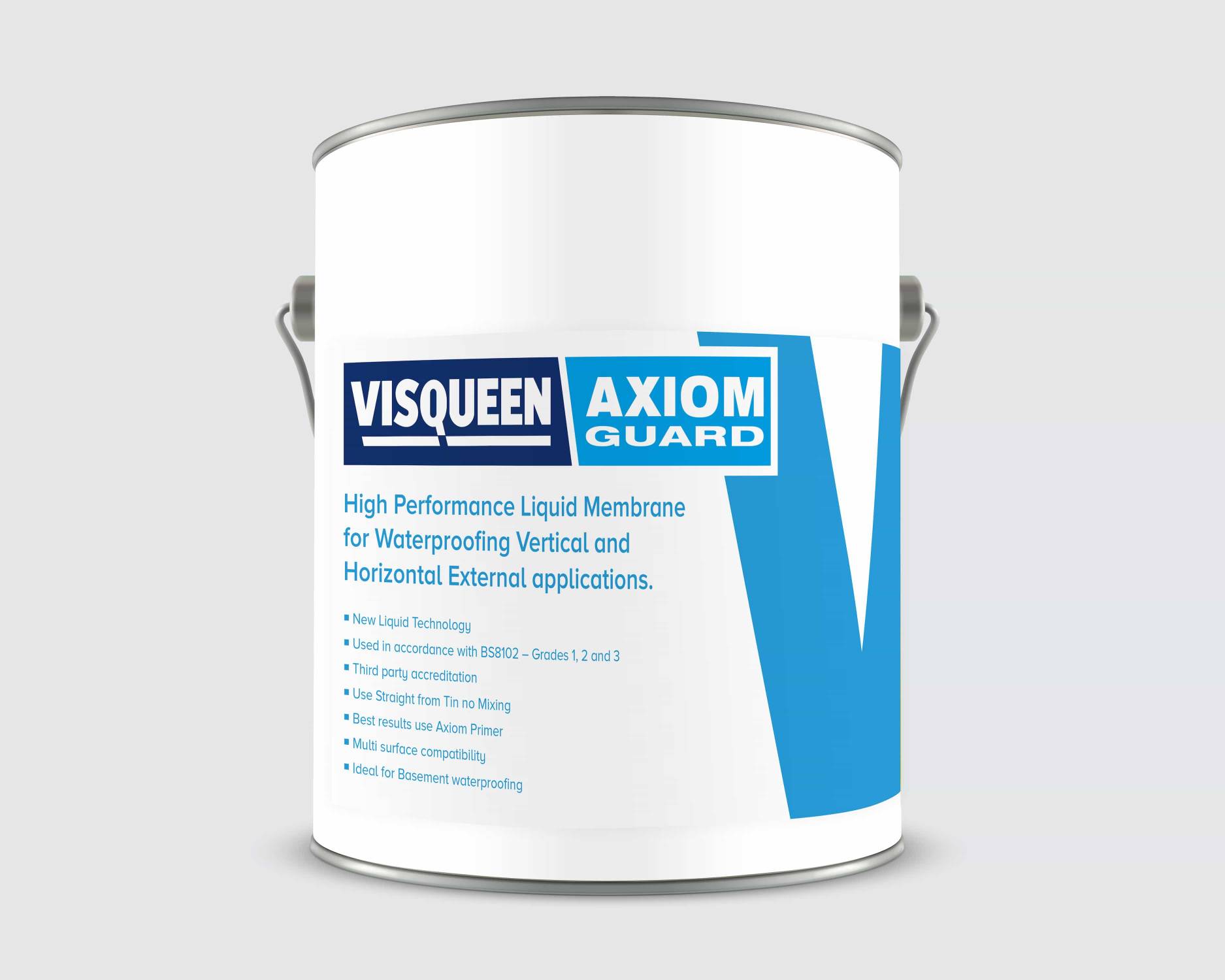

Visqueen Axiom Guard

Verified by manufacturer 7 days ago

Visqueen Third party certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

A single-component polyurethane liquid, waterproofing membrane.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

  • Suitable for use on concrete, brickwork, steel and timber.
  • Can be used in external tanking, basements, substructures, retaining walls and superstructures.

Description

A single component polyurethane liquid membrane that upon contact with humidity cures rapidly to give a continuous fully bonded waterproofing coating.


Features and benefits:

  • New liquid technology giving superior performance.
  • No complicated pre-mixing.
  • Formulated grade for below ground applications.
  • Fast curing, elastic and flexible at extreme temperatures.
  • Packaged in 20 kg tins.

General information

Color

Grey

Black

Finish

Smooth

Material

Polyurethane

Shape

Other

Warranty description

Guidance for specification option:

Details oulined in Visqueen Pl insurance. Consult manufacturer for further enquiries.

Uniclass

Pr_35_31_68_16 Cold-applied bitumen solutionsPrimary

CAWS

J30/110 Cold-applied tanking

Specification data - Cold-applied bitumen solutions

Third party certification

BDA certificate - BAB-18-028-P-A-UK.

Material

Polyurethane liquid membrane.

Application temperature

Cold.

Guidance for specification option:

Recommended not to be used below 5°C.

Product Reference

Visqueen Axiom Guard

Service temperature

-40 to +80°C.

Hardness

Shore A, ASTM D2240/ DIN 53505/ ISO R868, 70.

Elongation to break

400%.

Water vapour transmission

ASTM D412 water method, 0.8 g/m²/h.

Tensile strength (to EN ISO 527)

6.5 N/mm².

Reaction to fire

Class E.

Shelf life

12 months.

Sustainability data

Country of material origin

Greece

Material

Polyurethane

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

1

Revit

Revit 2016

1

Third party certifications

KIWA BDA

KIWA BDA

Visqueem Axiom Guard BDA Certificate

Literature

Visqueen Product Guide 2022

Visqueen Product Guide 2022
