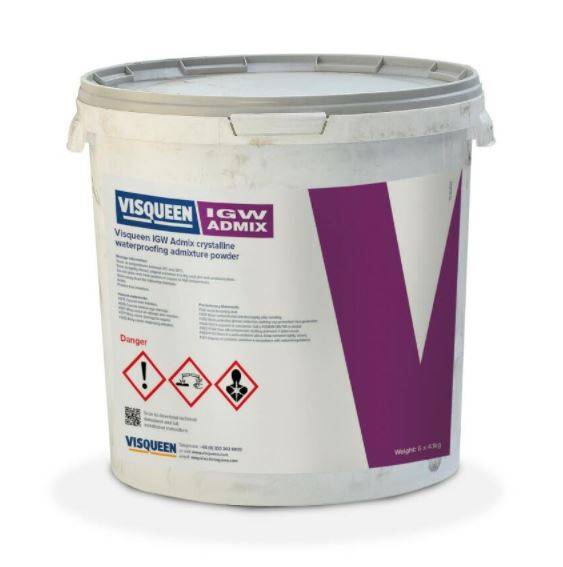

Visqueen IGW Admix

Verified by manufacturer 3 months ago

Visqueen Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Waterproofing admixture used in concrete protection.

Jump to:
BOS
+44 (0) 333 202 6800 Website

Application

Typically used in reinforced concrete substructure walls and floors.

Description

A waterproofing admixture used to provide Type B watertight concrete protection in accordance with BS 8102:2022.


Features and benefits:

  • Crystalline growth provides continuous protection for the lifetime of the concrete structure.
  • Reduces water penetration with less permeability when compared to an equivalent plain concrete.
  • Enhanced resistance to reinforcement corrosion when compared with an equivalent plain concrete.
  • More durable than an equivalent plain concrete.
  • Available in a tub consisting of six 4.1 kg soluble bags and used in the ratio of 1:1 i.e. one 4.1kg bag for each 1m³ of concrete.

General information

Material

Polymer-modified cement

Warranty description

Guidance for specification option:

See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass

Pr_20_31_03_96 Waterproofing mortar admixturesPrimary

CAWS

M10/307 Admixtures

M20/449 Admixtures for cement gauged mortars

M41/248 Admixtures

M20/62 Admixtures for cement gauged mortars

J10/120 Cement: sand mortar with proprietary waterproof admixture

Specification data - Waterproofing mortar admixtures

Third party product certification

BBA certifcate 20/5783.

Standard

Suitable for use as a Type B structurally integral protection to BS 8102:2009.

Weight

4.1 kg.

Guidance for specification option:

Weight of bag.

Quantity

6.

Shelf life

12 months.

Guidance for specification option:

Minimum.

Application temperature

Guidance for specification option:

Recommended should not be used below 5°C.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polymer-modified cement

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate Visqueen IGW Admix

Literature

Visqueen Product Guide 2022

Visqueen Product Guide 2022
