Visqueen IGW Waterstops - Waterstop for concrete joints
Verified by manufacturer 5 months ago

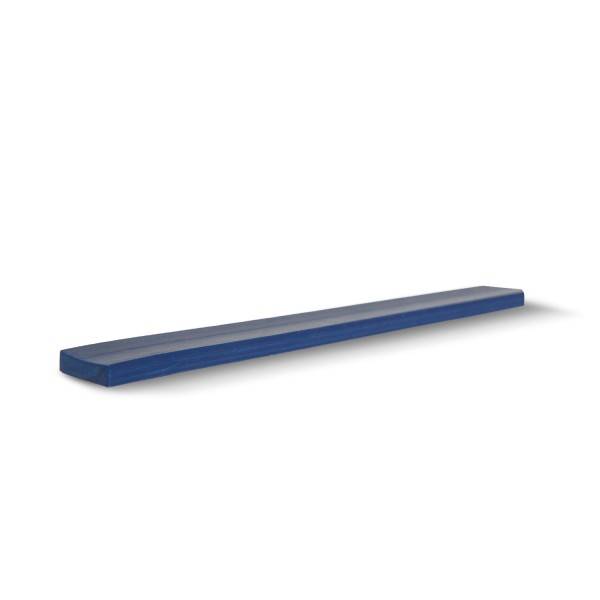

Visqueen IGW5 Waterstop
Visqueen IGW5 Waterstop
BBA Agrément Certificate
Certificate type
A waterstop suitable to assist the blockage of ground water.
Application
- Suitable for blocking the passage of ground water at construction joints and day-joints in poured in-situ below ground concrete structures which are 175mm wide or wider (e.g. retaining walls).
- Can be used with both horizontal and vertical construction joints.
- Suitable for use in wet weather conditions.
Description
A waterstop suitable to assist the blockage of ground water at concrete construction joints.
For concrete thicknesses between 175mm and 300mm, use Visqueen IGW5 Waterstop. For concrete thicknesses wider than 300mm, use Visqueen IGW10 Waterstop.
Features and benefits:
- High performance to 6 bar.
- 10m strips - rapid installation.
- IGW5 Waterstops sold in 5 strips per box while IGW10 Waterstops are sold with 7 strips per box.
General information
Color | Blue |
Finish | Smooth |
Material | Rubber |
Shape | Rectangle |
Length | 10000 mm |
Width | 20 mm |
Height | 5 mm 10 mm |
Warranty description | Guidance for specification option: See manufacturer's insurance document for warranty details. Consult manufacturer for further information. |
Uniclass | |
CAWS | E40/320 Hydrophilic waterstops |
Specification data - Synthetic elastomer hydrophilic waterstops
Classification data | |
Dimensions | 5 x 20 x 10000 mm. |
Standard | Designed for use as part of a Type B structurally integral system to BS 8102: 2009. |
Colour | Blue. |
Third-party certification | BBA pending. |
Quantity | 5 strips. Guidance for specification option: 50 linear metres. |
Application temperature | Guidance for specification option: Recommended should not be installed below 5°C. |
Water pressure | 6 bar. |
Sustainability data
Country of product manufacture | Belgium |
Material | Rubber |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Product certifications
BBA Agrément Certificate
BBA Certificate Visqueen IGW5 and 10 Waterstops
Literature
Visqueen Product Guide 2022
