Vitrocsa Pivoting Window System
Verified by manufacturer 12 days ago
V56 RANGE
V56 RANGE
Pivoting window system with double or triple glazing, frames available in a wide range of different colours and finishes.
Application
The system can be used for a range of different applications, including as main entrances for villas and access door to a patio. Suitable for coastal projects, very windy locations and installation at high altitudes.
Description
The pivoting window system has been developed specifically to conceal highly precise mechanisms, using similar methods to those employed in watchmaking. The surface area of the pivoting panel can be up to 12 m2 and 600 kg.
Features and benefits:
- Rails embedded and concealed in floor, wall and ceiling.
- Double or triple glazing options.
- Range of different powder coated and anodized finished available for the frames.
- Rails & frames: saline treatment specially adapted for coastal projects.
General information
Color | Clear Other Guidance for specification option: Wide range of colours available; consult manufacturer for details. |
Finish | Anodized Guidance for specification option: The structure is anodised 25 micron aluminium alloy, in a natural colour finish. Optional anodized finish in variety of colours available. Powder-coated |
Material | Glass Aluminium Guidance for specification option: Frame. |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows L10/560 Glazed screen system L20/480 Doorsets L20/55 Doorsets |
Specification data - Partition panels
Unit size | |
Thickness | 56 mm. |
Partition height (nominal) | Manufacturer guidanceBespoke. |
Width (nominal) | Manufacturer guidanceBespoke. |
Panel partition type | Glazed. |
Framing, fixing points and joints | 50 mm aluminium frame. |
Glazed panels | |
Type | Double-glazed. Triple-glazed. |
Area | Up to 12 m². Guidance for specification option: Depends on wind resistance. Manufacturer guidanceMaximum glass pane size. |
Closing mechanism | 2-point closure button. Alarms. Rack. Cylinder. RCI electric closure. |
Panel weight | 600 kg. Manufacturer guidanceMaximum weight of each glazed panel. |
Pivot point | Central. Offset. Guidance for specification option: Minimum of 270 mm. Manufacturer guidancePivot axis location. |
Arrangement | Manufacturer guidanceConsult manufacturer's literature for details and insert requirements.
|
Mullion | 25 mm wide, aluminium. |
Operation | Manual. Manufacturer guidanceOf pivoting glazing panels. |
Finish/ colour | Powder coated, colour. Guidance for specification option: Available in an wide range of colours; consult manufacturer for details. Anodized, natural colour. Guidance for specification option: 25 micron aluminium alloy. Standard option. Anodized, colour. Guidance for specification option: Available in an wide range of colours; consult manufacturer for details. |
Sustainability data
Material | Glass Aluminium Guidance for specification option: Frame. |
Literature

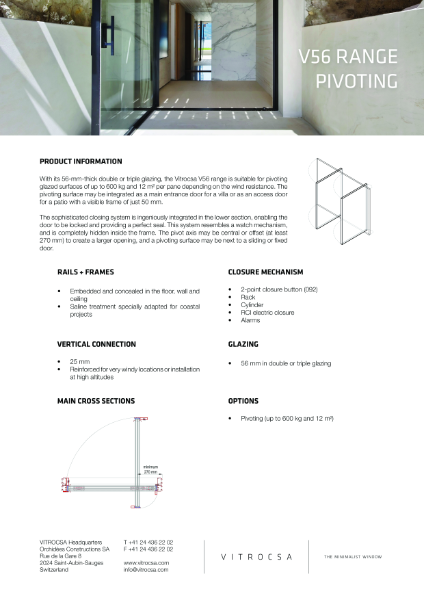

Vitrocsa V56 RANGE Pivoting Window System Data Sheet

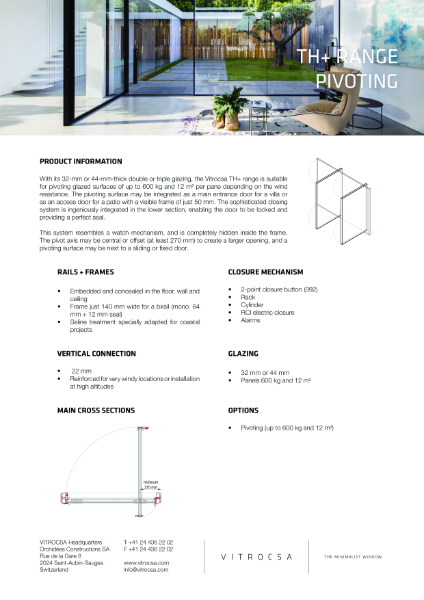

Vitrocsa TH+ RANGE Pivoting Window System Data Sheet

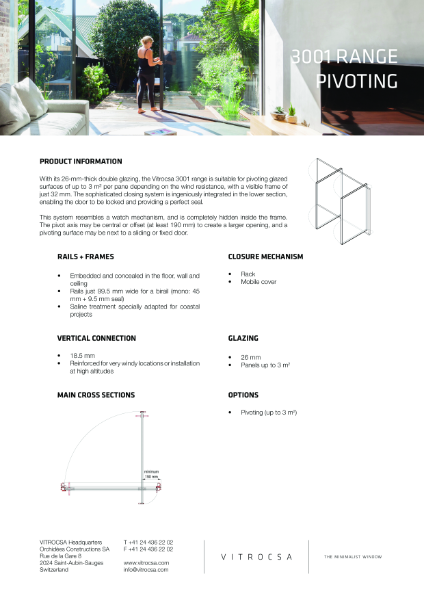

Vitrocsa 3001 RANGE Pivoting Window System Data Sheet
