VLo Econna-12 - Underfloor Heating

Verified by manufacturer 3 months ago

Warmup plc

Hydronic underfloor heating system.

Jump to:
+44 345 345 2288 Website

Application

Suitable for installation over battens or joists for refurbishments or existing floors.

Description

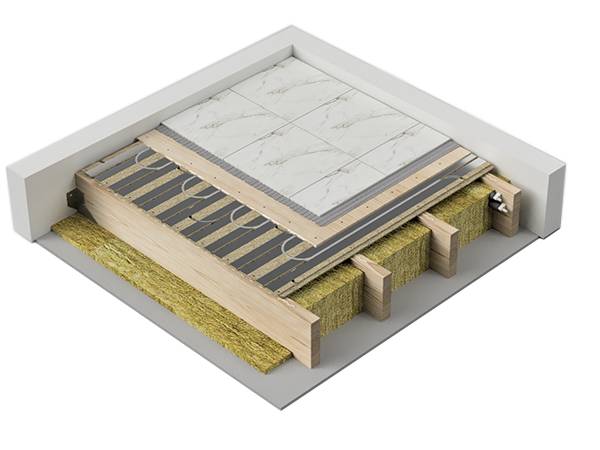

VLo Econna-12 is designed for use over both battened and joisted floors leaving the void between them free for other services. The profiled 22 mm thick chipboard panels can be installed over battens or joists with spacings of up to 600 mm centres.


The Econna-12 system is particularly for new and old floors, but when planning to refurbish an existing floor it can be difficult to know what will be found without lifting the floor up first. The Econna-12 system is simply installed over the unknown in place of a standard floor deck rather than competing for space with the other services within the void beneath.


Features and benefits:

  • Even heat distribution - boards with built in diffusers.
  • Lower floor heights.
  • For timber suspended and battened floors.
  • Fluted grooves on all panel edges.
  • Quick and simple installation.
  • Energy saving.
  • Used with traditional boilers and heat pumps.


System components:

  • PE-RT Pipe - Warmup PE-RT (Polyethylene of Raised Temperature Resistance) pipe. The pipe guarantees leak free performance with a smooth internal structure for improved flow, reduced pressure loss and deposit formation.
  • Pipe bend supports (WHS-P-BEND12) - Used for supporting pipes to make a smooth 90-degree turn where needed & provides a rigid bend which changes the pipes direction without causing excessive bending.
  • Pipe clips (UK-WUK-HY-ACC-PIPECLIPS12) - The robust pipe clips feature a press in to secure and press in to release design making mounting of the pipe easy. They link together to form a single rail and secure pipes at 25 mm centres, neatly aligning them to the manifold ports.

General information

Color

Other

Material

Chipboard

Polyethylene

Aluminium

Length

2400 mm

Width

600 mm

Height

22 mm

Warranty description

Lifetime

Guidance for specification option:

Consult manufacturer for details.

Uniclass

Ss_60_40_92_94 Underfloor low-temperature hot water heating systemsPrimary

CAWS

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Specification data - Underfloor low-temperature hot water heating systems

Heat source

Traditional boiler.

Heat pump.

Pumps

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Pipes

-

Distribution

PE-RT (Polyethylene of Raised Temperature Resistance) pipe.

Underfloor

Multilayer pipes for water.

Pipeline accessories

Pipe bend supports.

Pipeline supports

Pipe clips.

Controls

-

Controllers

Warmup 6iE - Onyx black housing, dark chrome band (6iE-01-OB-DC).

Warmup 6iE - Bright porcelain housing, light chrome band (6iE-01-BP-LC).

Warmup Element - Light housing, rose gold band (ELM-01-WH-RG).

Warmup Element - Dark housing, dark chrome band (ELM-01-OB-DC).

Sensors

Floor sensor.

Guidance for specification option:

Must be recessed into the Ultra-12 panel and taped in position.

Floor components

Econna panels.

Guidance for specification option:

  • Routed P5 grade chipboard with aluminium heat diffuser strip.
  • 22 mm thick.

Thickness

22 mm.

Dimensions

2400 x 600 mm.

Installation height

22 mm (+ 6 mm plywood layer).

Centres

150 mm.

Manufacturer guidance

Pipe centres.

Weight

≈14 kg/m².

Manufacturer guidance

Weight with water and 6 mm ply.

ThermalConductivity

0.12 W/mK.

Soft body

To EN 12871, Pass.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

N/A - Measured internally under greenhouse protocol guidance.

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

VLo Econna-12 Joisted System

VLo Econna-12 Joisted System
