VMZINC Fully Supported Facades - Standing Seam Cladding

Verified by manufacturer 2 days ago

VMZINC UK

A ventilated standing seam cladding system that can be used for both renovation and new build.

Jump to:
BOS
 +44 (0)1992 921 300 Website

Application

  • Both renovations and new buildings.
  • All shapes: Flat, curved, concave, convex, conical, domes.

Description

A ventilated cladding system that can be used for both renovation and new build. As the name implies, the system consists of seams that can be crimped in a single or double lock (for greater flatness single lock seams, sometimes referred to as angle seams, are recommended). The system has a traditional look with the seams being 25 mm high. The trays can be installed horizontally, vertically and at an angle.

The facade system offers the possibility to clad all types of walls: flat, curved or complex forms. Another advantage of this zinc facade system is that it can be used on both walls and roofs, thus allowing roof and wall to blend as one (standing seam roofs require double lock seams, and are specified separately).

The cladding panels can be various sizes - it is recommended that they be no more than 4000 mm in length and 430 mm in width; consult manufacturer for details. All aspects of VMZINC can be used, with 0.8 mm being the recommended thickness for facades.

Features and benefits:

  • Covered by Code of Practice 143-5: 1964.
  • Concealed fasteners.
  • Roof to wall continuity (roofing specified separately).
  • Versatile.
  • Horizontal, vertical and diagonal (angled) installation possible.
  • 25 mm high seam.

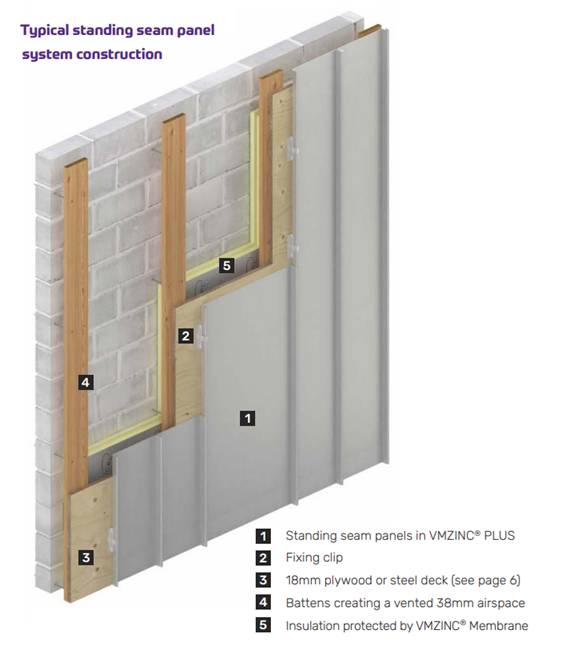

Typical system build-up:

  • VMZ standing seam panels in VMZINC® PLUS.
  • Fixing clip.
  • 18 mm plywood or steel deck.
  • Battens creating a vented 38 mm airspace.
  • Insulation protected by VMZINC® Membrane.

VMZINC® PLUS:

A product which allows zinc to be installed on ventilated plywood as well as specific warm (non-ventilated) substrates. The product consists of VMZINC (in all finishes) having a 60 µm coating applied to the underside thus allowing a more varied amount of substrates to be used and eliminating the risk of the formation of white rust on the underside of the zinc standing seam panels. VMZINC PLUS resists to an abrasion of 140 L when tested in accordance with ASTM D 968.

Life Cycle Analysis (LCA):

VMZINC undertakes Life Cycle Analysis (LCA) tests on its products and publishes Environmental Product Declarations (EPDs), such as BRE Environmental Profiles, available from the manufacturer's website www.vmzinc.co.uk and www.greenbooklive.com. These provide users with comprehensive, reliable and transparent information on relevant environmental characteristics. The information is also used by VMZINC as the basis for its eco-design approach.

General information

Color

Blue

Brown

Green

Grey

Red

Show more

Finish

Natural

Pre-treated

Material

Zinc

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Warranty description

50 year

Guidance for specification option:

Up to 50 year material warranty available on a project basis.

Uniclass

Ss_25_20_50_95 Zinc sheet fully supported wall-covering systemsPrimary

CAWS

H74/130 Zinc sheet fully supported wall covering

Product range

Facades

Specification data - Zinc sheet fully supported wall-covering systems

Classification data

System performance

Design of zinc sheet fully supported wall covering systems
Durability
Aesthetic performance

Manufacturer guidance

Insert details.

System manufacturer

VMZINC UK.

Wall sheathing

18 mm plywood.
0.7 mm galvanized steel deck.

Manufacturer guidance

Both vented with a 38 mm cavity.

Membrane

VMZINC® Membrane.

Insulation

Guidance for specification option:

Insert requirements. Supplied by others.

Carrier

Battens creating a vented 38 mm airspace.

Substrate

18 mm plywood or steel deck.

Zinc sheet

Zinc, 0.8 mm thick.

Vertical joints

-

Form

Angle standing seam.

Guidance for specification option:

For greater flatness.

Double lock standing seam.
Single lock standing seam.

Fixing standing seam joints

Standing seam fixed clips

Guidance for specification option:

For panels less than 2 m in length. When using single lock all clips can be fixed.

Standing seam sliding clips

Guidance for specification option:

For longer panels sliding clips must be used towards the bottom on vertical panels and to the left and right of the centre for horizontal panels.

Manufacturer guidance

 VMZINC clips are made from 1.4301 (304) grade stainless steel and each clip must resist a pull-out force of 50 daN.

Fasteners to substrate

It is recommended that screws be used to secure the clips with three being used per sliding clip. The use of nails offers significantly less resistance, but in the event of using nails, contractors are advised to use ring shank nails.

System accessories

VMZINC® PLUS continuous corner strip.

Guidance for specification option:

For corner details.

VMZINC® PLUS soldered clip.

Guidance for specification option:

For corner details.

VMZINC® Plus continuous folded strip.

Guidance for specification option:

For window details.

VMZINC® continuous folded strip, 0.7 mm thick.

Guidance for specification option:

For window details.

VMZINC® continuous folded strip.

Guidance for specification option:

For window details.

VMZINC® PLUS sheet clip (80 mm), 0.7 mm thick

Guidance for specification option:

For window details.

Manufacturer guidance

Consult manufacturer for details.

Colour

Natural VMZINC®, natural finish.

Guidance for specification option:

Natural VMZINC® has a shiny metallic appearance when new and develops a patina over time. In facade applications, it may take ten years for the matt grey patina to form.

Standard PIGMENTO® BLUE.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

Standard PIGMENTO® GREEN.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

Standard PIGMENTO® BROWN.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

Standard PIGMENTO® RED.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

Standard PIGMENTO® GREY.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

PIGMENTO® STORM GREY.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

PIGMENTO® CHARCOAL GREY.

Guidance for specification option:

  • Pre-weathered finish.
  • Colouration of the zinc is achieved with a special pigment layer that enhances the qualities of the zinc without presenting a block colour.
  • Tested to EN 13523.
  • Provides an increased resilience. However in a severe non-rinsed marine environment (1 km from the sea), staining is still possible and therefore the material should not be used in this application.

QUARTZ-ZINC®.

Guidance for specification option:

  • Pre-weathered finish.
  • Offers an appearance and texture that does not change over time.
  • When QUARTZ-ZINC® is scratched, it will self heal. The grey tones of QUARTZ-ZINC® blend well with existing construction materials. QUARTZ-ZINC® is produced through a phosphatation of mill finish Natural zinc.
  • The darkness of the pre-weathered zinc is measured electronically using a Y figure where 0 is black and 100 is white. Acceptable tolerance of QUARTZ-ZINC®, Y = 22 to 25.

ANTHRA-ZINC®.

Guidance for specification option:

  • Pre-weathered finish.
  • With its visible grain it matches the colour of slate and blends well in combination with photovoltaic panels.
  • Produced through a phosphatation of mill finish Natural zinc.
  • Acceptable tolerance of ANTHRA-ZINC®, Y = 5 to 7. Due to the dark colour of ANTHRA-ZINC® it should be carefully considered before using on non-rinsed surfaces such as protected facades and soffits.
  • For rinsed surfaces in coastal environments ANTHRA-ZINC® STRAT should be considered.

AZENGAR®.

Guidance for specification option:

Pre-weathered finish.

Engraved zinc giving a product with a matt, heterogeneous and light aspect.

Can be used in the same fashion as other VMZINC® products for both roofs and facades.

Size:

Guidance for specification option:

Insert requirements.

Maximum panel size: 4000 x 430 mm.

Standard

To BS EN 988, EN 15804, ASTM D 968, ISO 14001 and ISO 9001.

Weight

Panel: maximum 7 kg/m².

Reaction to fire

Fire classification according to EN 13501-1:2002:
A1 (Natural Zinc, QUARTZ ZINC, ANTHRA-ZINC and AZENGAR);
A2-s1,d0 (PIGMENTO and VMZINC PLUS).

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Material

Zinc

Recyclability

100%

Guidance for specification option:

Fully recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Guidance for specification option:

20% (approximately).

Expected Life

100 year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

1

Revit

Revit 2016

2

Literature

VMZINC Facades - Fully Supported Facades & Rainscreen Facades May 2024

VMZINC Facades - Fully Supported Facades & Rainscreen Facades May 2024

VMZINC Standing Seam Installation Guide - Information about the Use and Detailing of VMZINC May 2022

VMZINC Standing Seam Installation Guide - Information about the Use and Detailing of VMZINC May 2022

VMZINC General Technical Recommendations - Design Guidance for Architects & Contractors.

VMZINC General Technical Recommendations - Design Guidance for Architects & Contractors.

ISO 9001

ISO 9001

VMZINC EN15804 Natural Rolled Zinc

VMZINC EN15804 Natural Rolled Zinc

ISO 14001

ISO 14001

EN15804 Pre-Weathered QUARTZ PLUS & ANTHRA PLUS

EN15804 Pre-Weathered QUARTZ PLUS & ANTHRA PLUS

BRE Certification EN15804 Pre-Weathered Rolled QUARTZ & ANTHRA

BRE Certification EN15804 Pre-Weathered Rolled QUARTZ & ANTHRA

BRE Certification EN15804 Pre-Weathered PIGMENTO & STRAT

BRE Certification EN15804 Pre-Weathered PIGMENTO & STRAT
