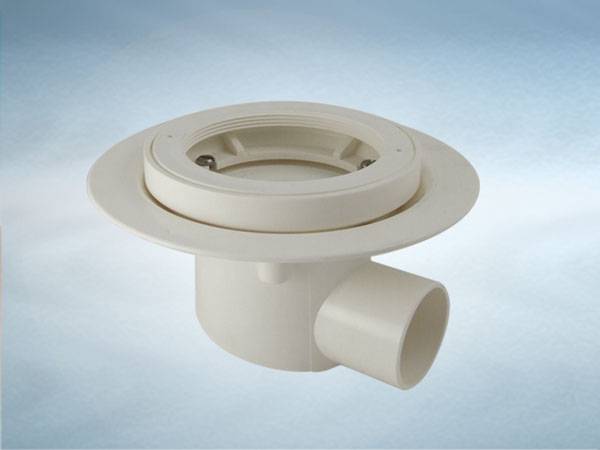

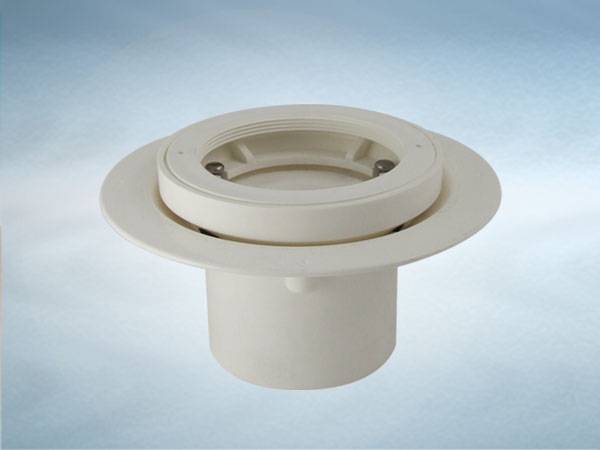

Wade Vari-Level (GP Series) ABS Gullies

Name: Wade Vari-Level (GP Series) ABS Gullies
Brand: Alumasc Water Management Solutions
SKU: 6wRpnLjB1g8uCCrTpGZghS

Verified by manufacturer 19 days ago

GP1104

Alumasc Water Management Solutions

Third party certifications:

UKAS
Certificate type

Range of ABS Gullies With 4" NPSM Grating Connection

Jump to:

+44 (0)1536 383810 Website

Application

The term Vari-Level refers to the fine adjustability of the height of a grating or access cover above a body; this feature enables installation exactly at finished floor level by rotating the grating or access cover.

Description

A Vari-Level gully comprises, as a minimum, a Vari-Level body and a Vari-Level grating; in some versions these items fit together directly, but, mostly, connection is by means of an inter-connecting, dual-purpose part – a membrane clamping collar. To address a myriad of applications, different versions of Vari-Level bodies are available for use with a wide range of Vari-Level gratings, Vari-Level access covers and Vari Level accessories.

General information

Material	Acrylonitrile butadiene styrene (ABS)
Shape	Circle
Length	50 mm 110 mm
Width	50 mm 110 mm

Uniclass	Pr_65_52_24_31 Floor gulliesPrimary
CAWS	R11/5 Floor drains R11/315 Floor drains

Product range	Wade Building Drainage / Vari-Level Outlets

Specification data - Floor gullies

Standard	To BS EN 1253-1.
Body	-
Configuration	Trapped.
Material	ABS Plastic.
Outlet	Non-Trapped.
Load class (minimum)	Dependent on Grating.
Integral accessories	Backwater Valve. Bottle Trap. Clamping Collar. Filter Bucket. Outlet Plug. Side Inlets. Weepholes.
