Verified by manufacturer 19 days ago
K2103 CI
UKAS
Certificate type

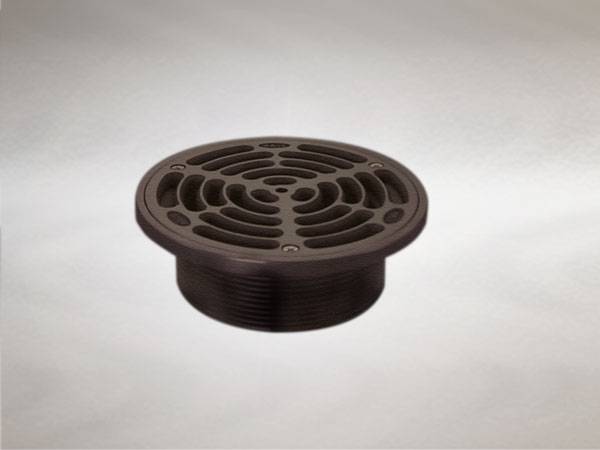

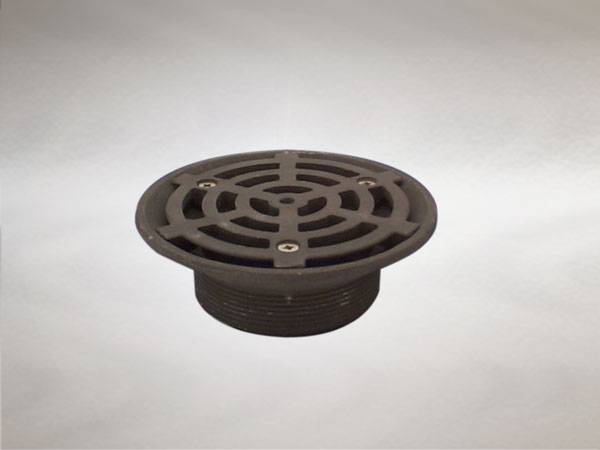

Range of Cast Iron Gratings With 4" NPSM Connection
The term Vari-Level refers to the fine adjustability of the height of a grating or access cover above a body; this feature enables installation exactly at finished floor level by rotating the grating or access cover.
A Vari-Level gully comprises, as a minimum, a Vari-Level body and a Vari-Level grating; in some versions these items fit together directly, but, mostly, connection is by means of an inter-connecting, dual-purpose part – a membrane clamping collar. The term Vari-Level refers to the fine adjustability of the height of a grating or access cover above a body; this feature enables installation exactly at finished floor level by rotating the grating or access cover.
Finish | Manufacturer guidanceSherardized |
Material | Cast iron |
Shape | Circle |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Product range |
Standard | To BS EN 1253-1. |
Cover or grating | |
Material | Cast Iron. |
Finish | Sherardized |
Load class (minimum) | K 3. |
Integral accessories | Pin Torx Screws.TappedBolt on Funnel.Portable Funnel. |
Connection | 4" NPSM. |
Width | 155 mm. |
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% Recyclable |
Expected Life | 60 year |
