Walk-In Fume Cupboard, Ducted
Verified by manufacturer 2 months ago
Bespoke – Pro Model, Variable Air Volume
Bespoke – Pro Model, Variable Air Volume
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type
Ducted ventilated enclosures for housing large equipment and processes.
Application
Suitable for a range of research, educational, pharmaceutical, oil and gas and military applications.
Description

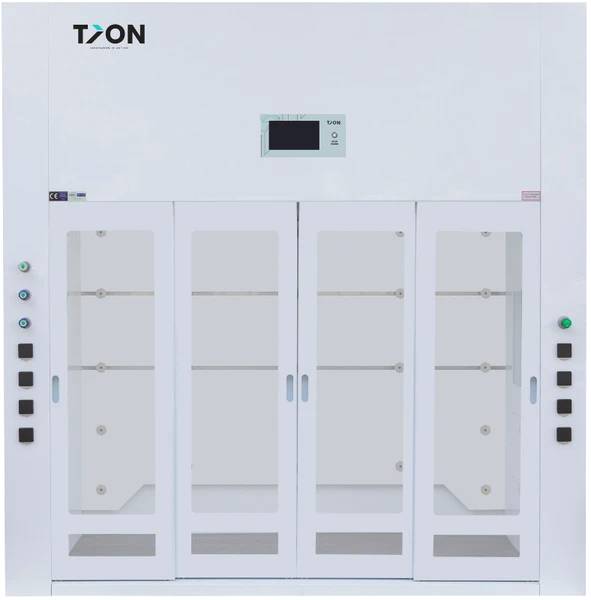

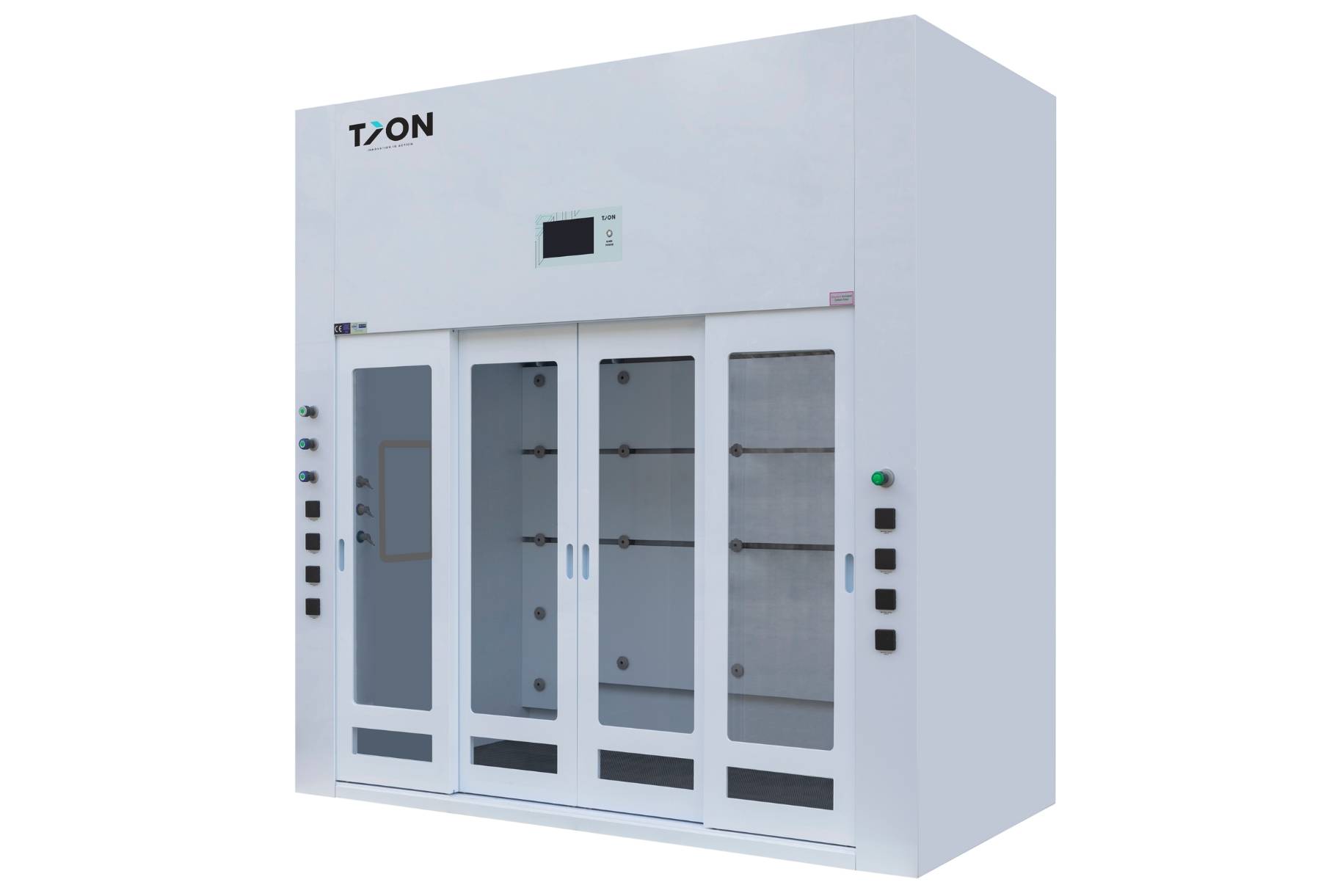

TIONS’s walk-in fume cupboards/enclosures safely house heavy or large equipment and materials that cannot be contained inside a regular fume cupboard. Walk-in fume cupboards or ventilated enclosures are designed to house heavy equipment like bioreactors and drum mixers. It supports access to the workspace at high and low levels, allowing staff to position and manoeuvre their apparatus or materials safely and efficiently. TION manufactures ducted and ductless walk-in fume cupboards using 100% medical-grade welded polypropylene.
Features and benefits:
- 100% Polypropylene carcass.
- EN 14175 and ASHRAE 110-1995 certified.
- Customisable dimensions.
- Energy-efficient LED lighting.
- Various lining materials include polypropylene, stainless steel, PPS, and Trespa.
- 7-inch (standard model) or 9-inch (pro model) touch-screen control panel.
- Variable air volume (VAV) and auto sash are available as options.
General information
Color | White |
Finish | Other |
Material | Polypropylene |
Shape | Rectangle |
Length | 1200 mm 1500 mm 1800 mm 2000 mm 2500 mm |
Width | 930 mm Bespoke |
Height | 2320 mm Bespoke |
Warranty description | One year |
Uniclass |
Specification data - General-purpose fume cupboards
Standard | To EN 14175. |
Arrangement | Walk-in. |
Special requirements | Manufacturer guidanceInsert requirements. |
Extract air | |
Face velocity | 0.5 ±0.1 m/s (100 ±20 FPM). |
Operation | Facility to vary extract volume flow rate.Guidance for specification option: Only available on the Pro 9” Touch Screen Panel. |
Materials | Polypropylene. |
Sash | |
Sash arrangement | Horizontal sliding doors.Vertical single sash (weighted).Vertical dual sash (weighted). |
Operation | Manual.Powered, automatic.Guidance for specification option: Only available on the Pro 9” Touch Screen Panel and vertical sash models. |
Dimensions | |
Overall depth | Bespoke.Guidance for specification option: Insert requirements or refer to a drawing. |
Overall width | Bespoke.Guidance for specification option: Insert requirements or refer to a drawing. |
Lighting | |
Lighting type | LED lighting. |
Illuminance at work surface (minimum) | 800 lx. |
Services | |
Water | |
Sink unit | Not required.Rubber sink.Polypropylene sink. |
Water supply | Not required.Cold water supply.Hot water supply.Reverse osmosis water supply.Demineralized water supply. |
Drainage | Not required.200 mm side well (drip cup).Other.Guidance for specification option: Insert drainage requirements for the sink if selected. Manufacturer guidanceInsert requirements or omit. |
Electricity | |
Power requirements | 110 V, 50/60 Hz, single-phase.220 V, 50/60 Hz, single-phase.Manufacturer guidanceA three-phase power supply can be specially ordered. Consult manufacturer for details. |
Electrical socket outlets | Four.Manufacturer guidanceSingle phase, 3A, 240 V, 50 Hz. |
Location | Sockets on front face of fume cupboard. |
Gas outlets | Not required.Nitrogen.Argon.Hydrogen.Vacuum.Compressed Air.Other.Guidance for specification option: Consult manufacturer and insert requirements. |
Airflow indicator with audible and visual alarms | Constant airflow monitoring and display with visual alarm on screen and integrated internal red light alarm system. |
Controls | |
Controller type | Touch screen control panel, 9-inch.Guidance for specification option: Full-colour touch screen with air flow velocity, low airflow alarms, lighting controls and calibration settings. Enables VAV control, electronic auto sash (when fitted) and upgradable software system. |
Control modes | Night setback mode, Eco mode. |
Accessories | Not required.Centrifugal fans.Fold out benchtops.Glove apertures.Multisash.Partitions.Shelves.Sumps.Vacuum tap. |
Lining | Polypropylene. Guidance for specification option: As standard. Stainless steel. PPS. Trespa. |
Safety devices | Not required. Co2/ powder fire suppression. External interlock emergency stop. |
Cover | 304 stainless steel bund cover, grated design. 304 stainless steel bund cover, sheet design. |
Flooring | Polypropylene. Stainless steel. Electro static dissipative (ESD). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Material | Polypropylene |
Expected Life | Ten year |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001:2015
ISO 9001 Quality Management
ISO 9001:2015
Alcumus SafeContractor
SafeContractor
