Wall and Ceiling Panel - Wood veneered panels

Verified by manufacturer 1 month ago

Shadbolt International

Wall and ceiling panels finished to match the project scheme. Used to create a feature across a plain wall, or to add class and elegance to any project.

Jump to:
+44 (0)1376 333376 Website

Application

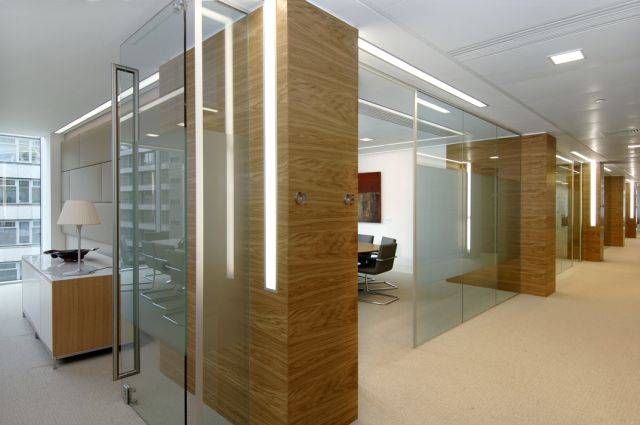

Suitable for internal use for wall and ceiling panelling. Wall panels can be used to create a feature area, or even to line an entire wall, giving a natural appearance to any scheme. Veneer can be matched across panels and designed to seamlessly hide a door set into the panelling.

Description

Wall and ceiling lining panel available in a range of wood veneers, as well as other specialised finishes.


Performance:

  • Class B performance using intumescent lacquer on class B MDF board. This is rated European Class B for reaction to fire according to BS EN 13501-1, based on independent testing.
  • Class C performance using non-intumescent lacquer on MDF board. This is rated European Class C for reaction to fire according to BS EN 13501-1, based on independent testing.


Materials:

  • Core board in a range of thickness' to suit site requirements and fire performance.
  • Veneer to face from any species to match clients required scheme. Veneer can be matched to suit and can be matched across multiple panels or across doors also set into panels.
  • Lipping: Concealed or exposed edge lippings of minimum 7 mm thickness in near matching hardwood, applied using radio-frequency glue without tongue to the two long edges or all four edges.


Certification:

  • Third party certification: BRE Certificate.
  • Lacquer manufacturers test evidence

General information

Finish

Brushed

Guidance for specification option:

Two coats of high-solid acid-catalysed semi-matt (20% gloss) lacquer/ polyurethane lacquer/ UV cured lacquer.

Matt

Gloss

Grained

Lacquered

Show more

Material

Wood

Guidance for specification option:

A wide range of wood veneer species available, please consult with manufacturer for exact details and product references.

Plywood

Guidance for specification option:

Core type.

Chipboard

Guidance for specification option:

Core type.

Particleboard

Guidance for specification option:

Core type - 0123450/ 0323450: High density particleboard.

Medium density fibreboard (MDF)

Guidance for specification option:

Core type.

Show more

Manufacturer guidance

Other materials:

  • Blockboard - core type - balsa blockboard.
  • Laminboard - core type.

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Maximum size.

Width

Bespoke

Guidance for specification option:

Maximum size.

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_25_45_70 Rigid sheet wall lining systemsPrimary

CAWS

K13/120 Wood-veneered panel lining

Product range

Wall Veneered Panels

Specification data - Rigid sheet wall lining systems

System performance

Fire performance of core materials to BS 476-7.

Guidance for specification option:

Fire resistant core material available to Class 1 or 0 flame spread performance defined by Building Regulations (E&W) Approved Document B and tested to BS 476-7.

Linings

0123450: High density particleboard.

Guidance for specification option:

Shadbolt Class 1.

0323450: High density particleboard.

Guidance for specification option:

Shadbolt Class 0.

Balsa blockboard.

Chipboard.

Guidance for specification option:

To BS 5669-2.

Laminboard.

MDF.

Guidance for specification option:

To BS 1142 and BS EN 120.

Plywood.

Guidance for specification option:

To BS 6566-1.

Shadmaster.

Manufacturer guidance

Core type.

Size (w x h)

As drawing.

As schedule.

Manufacturer guidance

Maximum 1500 x 3000 mm.

Facing

Wood veneer.

Guidance for specification option:

Consult manufacturer for ranges of wood veneer species.

Insert requirements.

Lipping

Lip two vertical edges concealed.

Lip two vertical edges exposed.

Lip four vertical edges concealed.

Lip four vertical edges exposed.

Core thickness

Guidance for specification option:

Insert requirements.

Finish as delivered:

Semi-matt lacquer.

Semi-matt polyurethane lacquer.

Semi-matt UV cured lacquer.

Manufacturer guidance

Two coats of high-solid acid-catalysed semi-matt (20% gloss).

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.72 kg CO₂ eq/m³

Self declared
