Wall Extension System
Verified by manufacturer 4 months ago
A stainless steel wall extension system.
Application
Suitable for use in existing walls up to 8 m in both internal and external applications.
Description

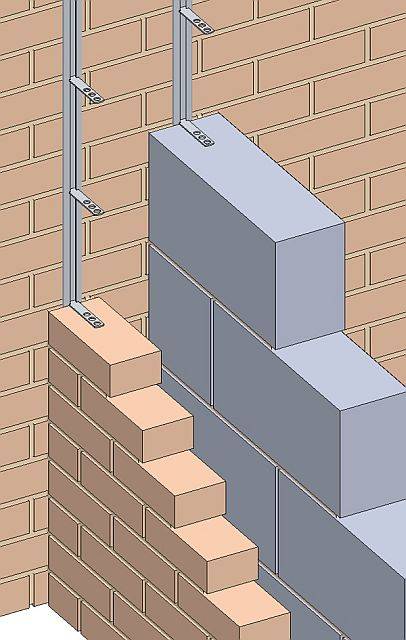

A stainless steel wall extension system, a shallow section (8 mm deep) channel which can be screwed to existing walls using plugs and coach screws and a stainless steel sliding wall tie that will accommodate any common size or type of masonry.
Features and benefits:
- Single lead or cavity wall construction.
- Internal and external applications.
- A quick, easy and economical way to tie-in new masonry.
- Manufactured from corrosion resistant stainless steel.
- Meets NHBC standards.
- Available in a kit comprising a 3 metre long channel section complete with plugs, screws and ten ties either WTS3C36 safe ended ties or WTP3C36 plain ended ties and WDS debonding sleeves for use in movement joints.
Components:
- Wincro WC36 – a shallow section channel, 3000 mm long with pre-punched holes.
- Wincro WTS3C36 – a safe ended channel tie for use with WC36 surface fixed channel. Available in 8 lengths from 75—250 mm.
- Wincro WTP3C36 – a plain ended channel tie for use WDS debonding sleeve to WC36 surface fixed channel. Available in 7 lengths from 100—250 mm.
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Shape | Other |
Uniclass | |
CAWS | F30/241 Wall starters/ connectors F30/39 Wall starters/ connectors |
Specification data - Wall starters and connectors
Material | Stainless steel, grade 1.4301 (304). |
Tie type | Channel, screws and ties. |
Sizes | |
Channel length | 3.0 m.Guidance for specification option: WC36 restraint channel: Shallow section channel, with pre-punched holes. |
Accessories | Not required.WBPS.Guidance for specification option: Plug and screw for fixing to concrete/brickwork. |
Pack includes | 2 x 1.2 m interlocking stainless steel channel lengths; 10 x twist, lock & slide stainless steel wall ties (WTP3C36 or WTS3C36); 5 x stainless steel coach screws, washers & plugs. |
Maximum wind loading | 4.5 kN over 2400 mm. |
Ties | WTP3C36 plain ended ties and WDS plastic debonding sleeves (movement joints). WTS3C36 ties (bonded joints). |
