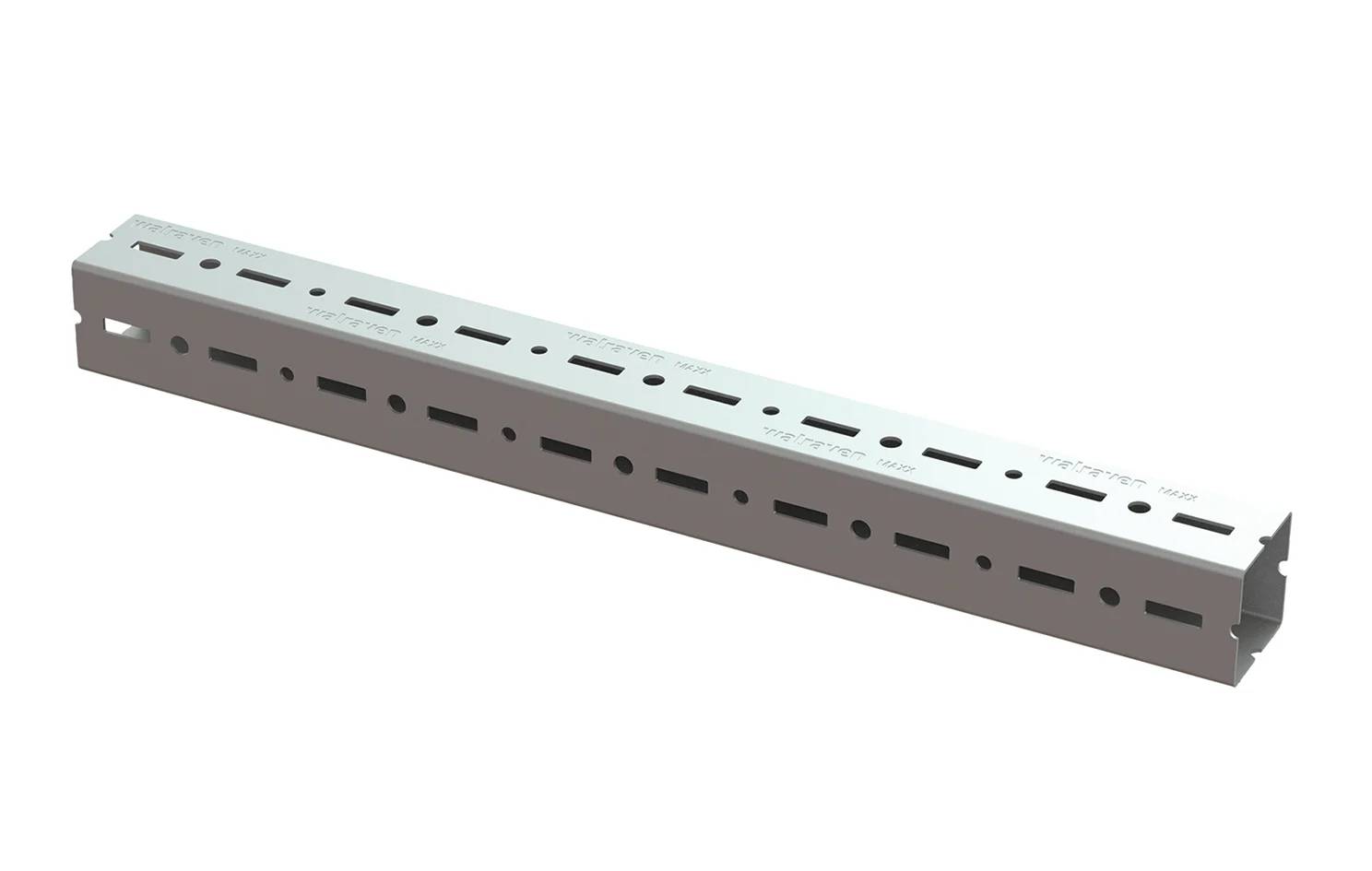

Walraven Maxx Heavy Rail Profile - Modular Support System
Verified by manufacturer 17 days ago
EPD
Certificate type
Modular support system, safe, versatile, and corrosion-resistant system designed for heavy-duty applications.
Application
For heavy duty pipework and industrial installation.
Description
Modular support system, safe, versatile, and corrosion-resistant system designed for heavy-duty applications.
Features and benefits:
- Closed square profile.
- For heavy loads.
- Torsion stiffness for high safety.
- Cut-to-length service on request (contact manufacturer's Technical Sales Service).
- With continuous perforation on all sides.
- Material: steel 1.0039 (S235JRH).
- Hot dip galvanized.
- Can be used with Walraven Maxx base plate (specified separately).
General information
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Square Rectangle |
Length | 6000 mm |
Width | 80 mm 100 mm 120 mm 150 mm |
Height | 80 mm 100 mm |
Uniclass | |
CAWS | S90/815 Supports for exposed thermoplastics pipework S90/810 Supports for copper and stainless steel pipework G10/150 Steel framing system |
Specification data - Carbon steel beams, columns, channels and tees
Standard | |
Grades and qualities | S235JRH. |
Corrosion protection | |
Galvanizing | |
Standard | Hot-dip galvanized. |
Coating thickness (minimum) | Manufacturer's standard. |
Dimensional tolerances | Manufacturer's standard. |
Size | 80 x 80 mm.Guidance for specification option: MX80. Wall thickness: 3 mm. 100 x 100 mm.Guidance for specification option: MX100. Wall thickness: 3 mm. 100 x 120 mm.Guidance for specification option: MX120. Wall thickness: 4 mm. 100 x 150 mm.Guidance for specification option: MX150. Wall thickness: 4 mm. Manufacturer guidanceProfile. |
Unit length | 6 m. Cut to length. Guidance for specification option: Consult manufacturer and insert requirements. |
Accessories | Guidance for specification option: A wide range of accessories are available including:
Consult manufacturer's literature and insert requirements. |
Sustainability data
Third party certifications
Third party certifications
EPD

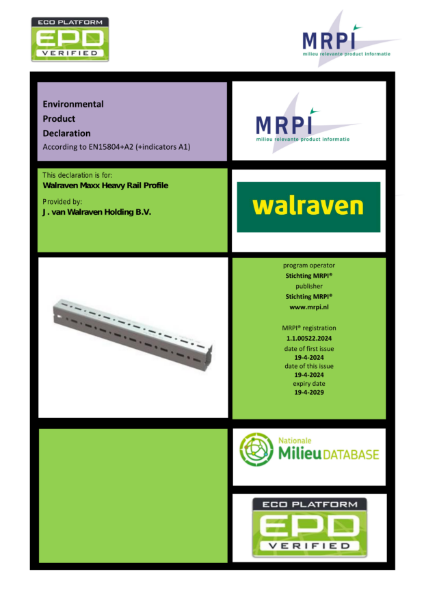

Walraven Maxx Heavy Rail EPD
