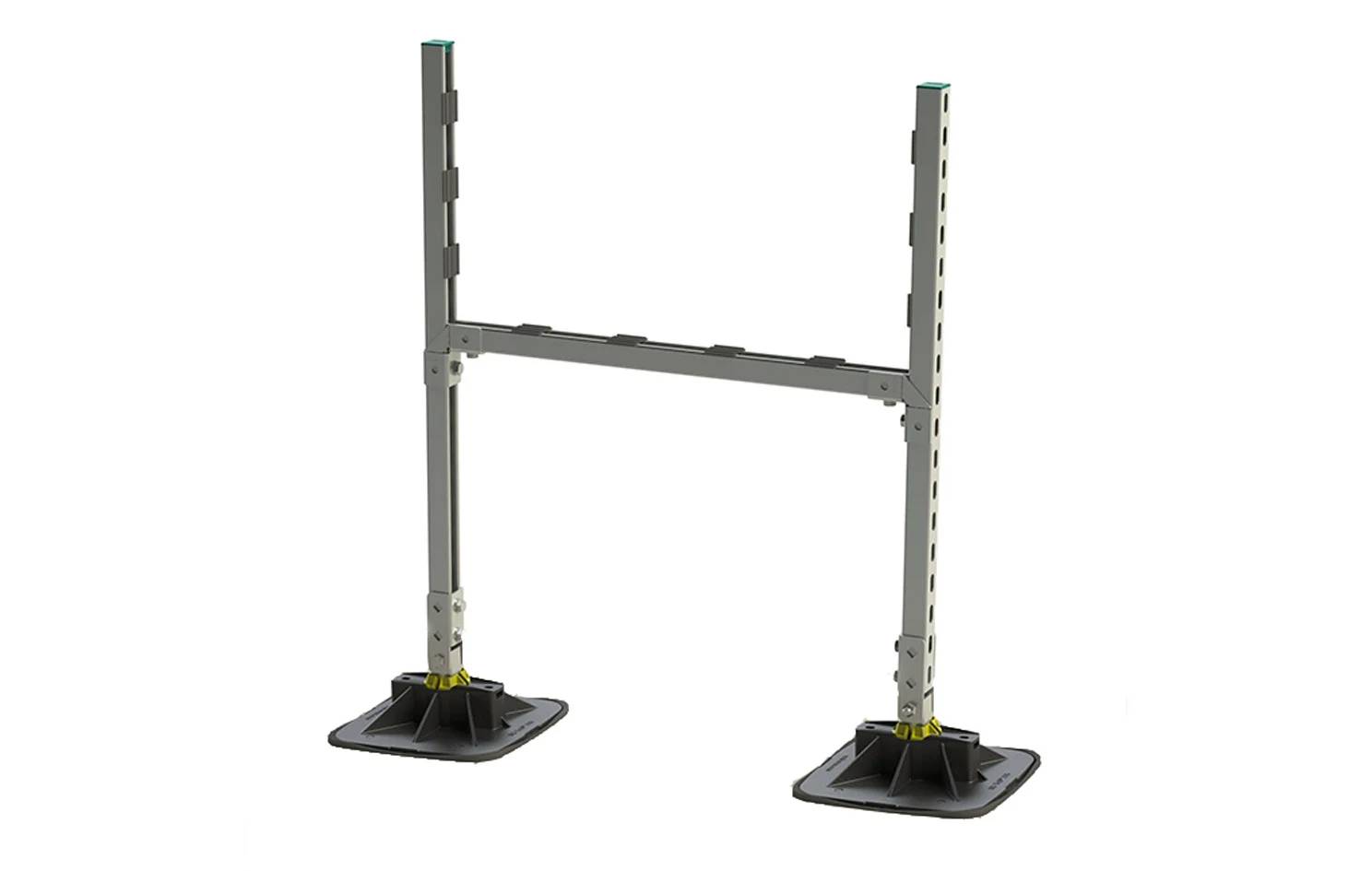

Walraven Yeti® 335 H-Set with Rail
Verified by manufacturer 1 day ago
A complete H frame set for supporting installation appliances on flat and low-pitched roofs.
Application
- For quick installation of air duct channels on the roof.
- Suitable for indoor and outdoor applications.
Description
Features and benefits:
- Adjustable to compensate roof pitch and 360° rotatable insert for flexibility in positioning.
- With non-slip anti-vibration mat.
- Predefined load capacity (see assembly instruction), calculation not necessary.
- Mouldings made of WPC, a composite of recycled plastic and wood fibre.
- Resistant to UV and chemical influences.
- Part of the Walraven BIS UltraProtect® 1000 system.
Components:
- 2 x BIS Yeti® 335 including non-slip anti-vibration mat (made of rubber).
- 3 x 1.0 m BIS RapidStrut® Fixing Rail 41|H (BUP1000).
- 2 x BIS Yeti 335 Hinge (BUP1000).
- 2 x BIS Strut Connector 90° / 2D (BUP1000).
- 10 x BIS Strut Rubber Strip 50mm for noise insulating according DIN 4109.
- All connecting elements, rail end caps and bolts are included and most are pre-assembled.
General information
Color | Silver |
Finish | Coated |
Material | Steel Composite Rubber |
Shape | Rectangle |
Length | 1000 mm |
Width | 335 mm |
Height | 1150 mm |
Uniclass |
Specification data - Roof equipment supports
Components | |
Support base | |
Type | BIS Yeti® 335. |
Size | 335 x 335 mm. |
Anti-vibration mats | Non-slip anti-vibration mat. |
Support frame | |
Type | BIS RapidStrut® system.Guidance for specification option:
|
Size | 1150 x 1000 mm.Guidance for specification option: H x W. |
Sound insulation | To DIN EN ISO 10140-1 and DIN EN ISO 10140-3, up to 31 dB(A). |
UV resistance | To EN ISO 16474-3:2014-02. Guidance for specification option: Certified by ITB. |
Sustainability data
Country of product manufacture | Netherlands |
Literature
Walraven Yeti® 335 H-Set with Rail Data Sheet
