WAVE S3 - Touch free flush actuator

Verified by manufacturer 3 months ago

Radius Edge

Thomas Dudley Variant:

A touch-free electronic push plate.

Jump to:
+44 (0)121 557 5411 Website

Application

For commercial and domestic installations.

Description

The Wave S3 Intelligent Flush Actuator is a touch-free flushing solution for commercial and domestic installations.


Features and benefits:

  • In conjunction with a Dudley Niagara Pneumatic, provides a full and water-saving reduced flush.
  • Illuminated flush status icons to provide visual feedback: Blue: User detected and ready to flush. Green: Flush activated. Red: Cistern filling.
  • Square or radiused corners.
  • Electronic dual flush feature.
  • 7 cm approximately flush sensor range.
  • Three sensor range set-up options: default, automatic or manual.
  • Compatible with Dudley Illusion A Frame.
  • Compatible with all Dudley Vantage and Miniflo cisterns.
  • Scratch and graffiti-resistant coating reduces the risk of damage to the front window.
  • Incorporates discrete, tamper-resistant, quick-release locks for easy service access.


When raised, the WC seat and lid must not obstruct the wave unit in any way.

General information

Color

Black

Finish

Gloss

Material

Acrylonitrile butadiene styrene (ABS)

Guidance for specification option:

Body.

Acrylic

Guidance for specification option:

Cast acrylic screen.

Shape

Rectangle

Width

242 mm

Guidance for specification option:

Depth: 12 mm.

Height

156 mm

Warranty description

One year

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary

CAWS

N13/300 WCs and cisterns

S90/690 Flush control devices

S90/690 Flush control devices

Specification data - Flush control devices

Materials

-

Finish and colour

Black.

Operation

Automatic.

Manual.

Ingress protection (IP) rating

IP 45.

Sensor

Detection range: 1800 mm; Flush range; 70 mm.

Edges

Radius cut.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Thomas Dudley Products and Parts Catalogue

Thomas Dudley Products and Parts Catalogue

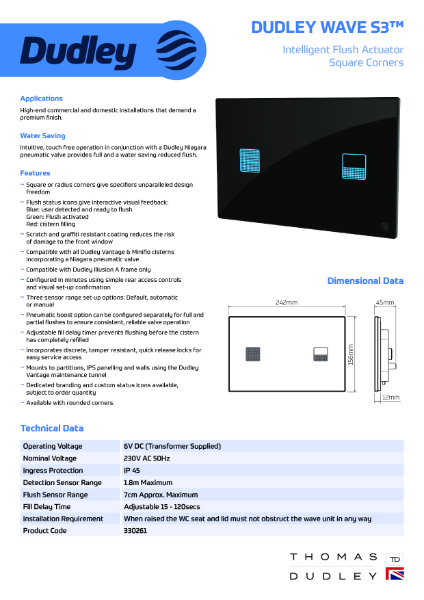

Wave S3 Dualflush Infra-Red Plate_Square Corners

Wave S3 Dualflush Infra-Red Plate_Square Corners

Thomas Dudley Specification Brochure

Thomas Dudley Specification Brochure
