weberfloor underfloor heating system (water)

Verified by manufacturer 4 months ago

Saint-Gobain Weber Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Fibre-reinforced flooring system applied over water based underfloor heating finished with floor coverings such as vinyl, laminate, carpet or tiles.

Jump to:
+44 (0)1525 718877 Website

Application

  • If substrate is in need of repair please see weberfloor substrate repair system
  • Cannot be used on external projects
  • Contact Weber for guidance regarding commissioning underfloor heating systems

Description

weberfloor underfloor heating system (water) is designed for application over water-based underfloor heating systems. Fibre reinforcement allows application at as little as 15mm thickness over the top of the pipes. This system can be walked in as little as 2 hours and is capable of rapid overlay with tiles or a moisture sensitive flooring finish.


Features and benefits:

  • Suitable for application over water-based underfloor heating
  • Provides an ultra smooth surface, perfect for final floor finishes
  • System can be applied at as little as 15mm over the top of water pipes
  • Foot traffic after 2 hours
  • Suitable for rapid overlay with final floor finishes
  • Pump or hand applied

General information

Color

Grey

Other

Finish

Other

Guidance for specification option:

Finished with floor coverings such as laminate, vinyl, carpet or tiles.

Material

Cementitious

Shape

Formless

Other

Uniclass

Ss_60_40_92_94 Underfloor low-temperature hot water heating systemsPrimary

CAWS

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Product range

Flooring solutions / Underfloor heating solutions

Specification data - Underfloor low-temperature hot water heating systems

Heat source

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Pumps

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Pipework

-

Distribution

Plastic pipes.

Underfloor

Underfloor heating pipes 15 mm.

Jointing materials

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Insulation

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Pipe accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Pipe supports

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Valves

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Water treatment

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Controls

-

Controllers

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Control valves

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Sensors

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

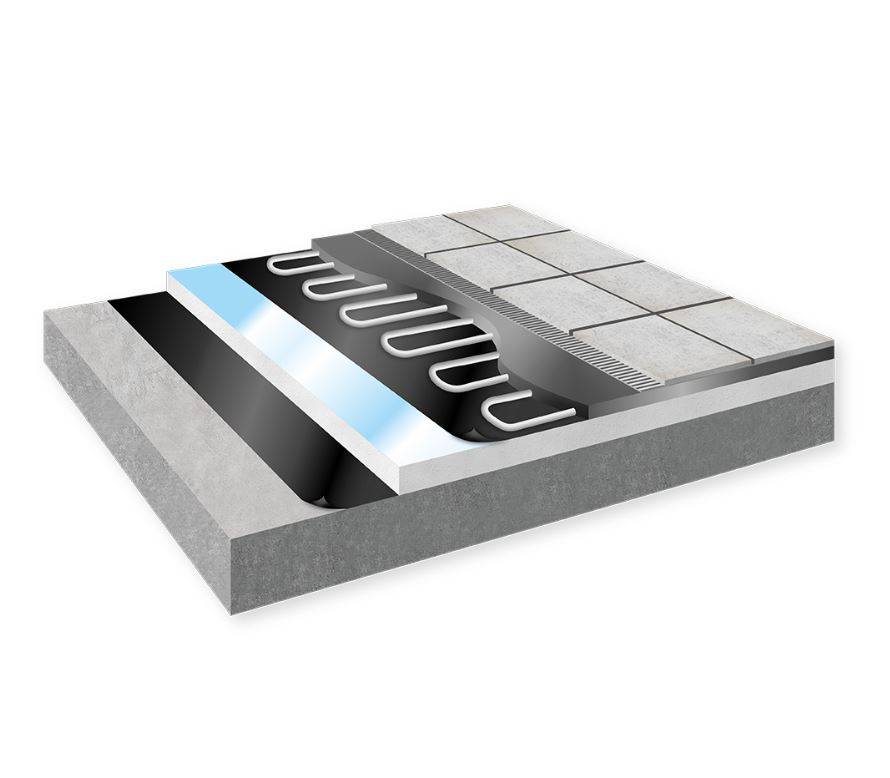

Floor components

Insulation board 60 mm.

Base screed

Fibre modified, self-smoothing base and renovation screed.

Guidance for specification option:

weberfloor fibre 4310.

  • Pump or hand applied, self-smoothing, fibre-reinforced base or renovation screed for floors, with Low Dust TechnologyTM, which gives a strong base layer for receiving tiles or a thin topping screed.
  • The product is formulated from special cements, aggregates and chemical admixtures.


Floor covering

Guidance for specification option:

Finished with floor coverings such as laminate, vinyl, carpet or tiles.


Consult manufacturer and insert requirements.

Accessories

Not required.

weberset tile adhesive.

Guidance for specification option:

  • Range of cement based tile adhesives.
  • Suitable for large format or heavier tiles.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cementitious

Third party certifications

Third party certifications

EPD

EPD

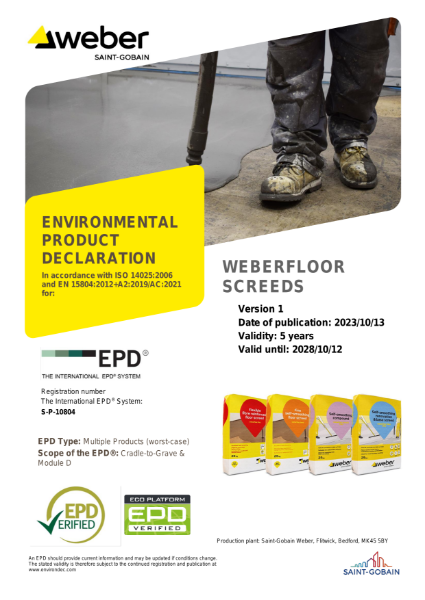

EPD Certificate (weberfloor rapid floor screeds)

EPD

EPD

EPD Certificate (weberfloor standard floor screeds)

ISO 14001 Environmental Management Systems

ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001:2018

ISO 9001 Quality Management

ISO 9001:2015

Literature

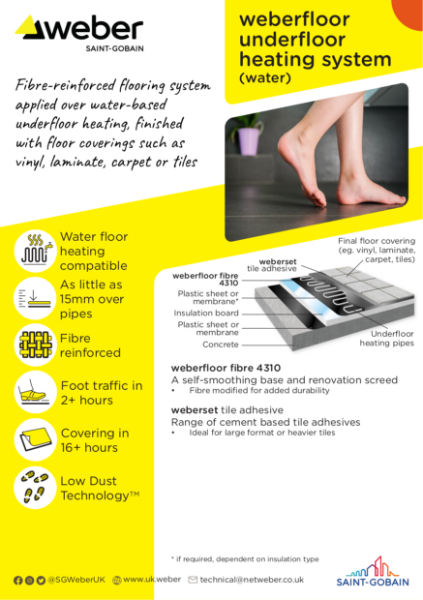

weberfloor underfloor heating system (water) - System spec card

weberfloor underfloor heating system (water) - System spec card

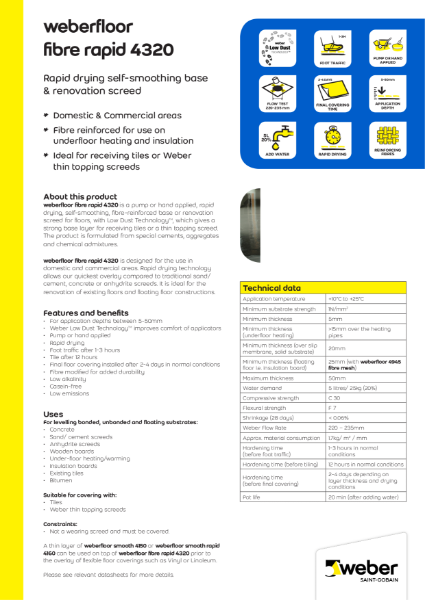

weberfloor fibre rapid 4320 - Technical datasheet
