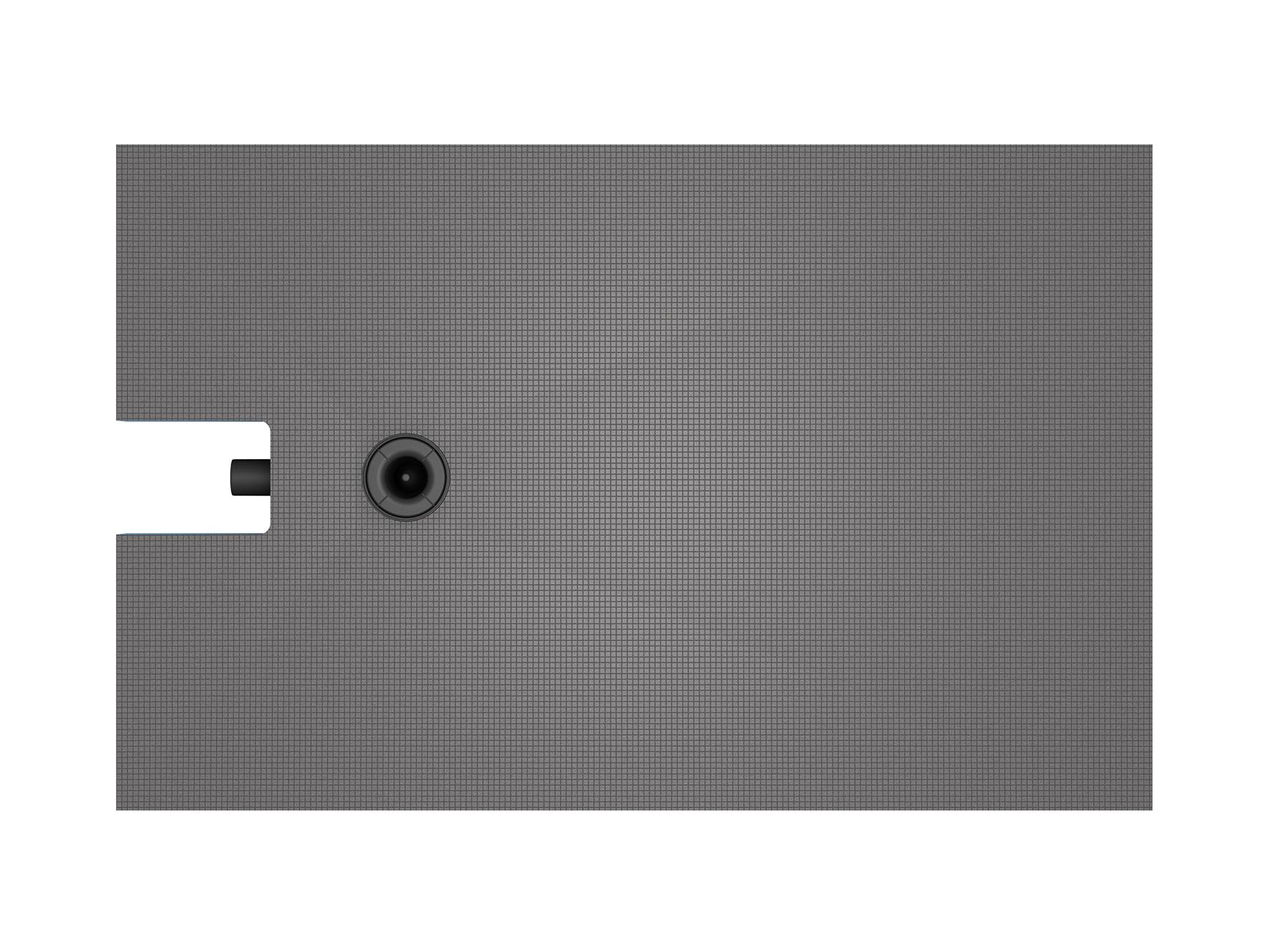

wedi Fundo Integro, Offset Drain

Name: wedi Fundo Integro, Offset Drain
Brand: Wedi Systems (UK) Ltd
SKU: 42CG5DtMHWmsc8iQqsPgw9

Verified by manufacturer 3 months ago

075900004

Wedi Systems (UK) Ltd

Standard-compliant, flat complete system for flush-to-floor showers, with a total installation height of 90 mm

Jump to:

BOS

+44 (0)161 864 2336 Website

Application

Suitable for use:

In publicly accessible buildings in accordance with DIN 18040–1 and DIN EN 1253.
In accessible dwellings complying with DIN 18040–2 (consult technical literature for details).
As structural sealing in combination with tile or slab coverings for load classes A0 and A.

The product can be installed on almost any surface as an individual tileable floor-level shower system. The system includes:

A waterproof rigid foam core with a special, resistant and glass fibre reinforced cement coating.
A defined and absolutely even surface slope.
A flat, fully integrated, standard-compliant, horizontal drain.

The product is also compatible with wedi Fundo Fino drain covers. In this case, the polyvinyl chloride (PVC) frame has to be used.

wedi Fundo Fino square grids are 115 x 115 x 5 mm. Round grids are 115 mm diameter x 5 mm.

Ten year guarantee.

Description

Flush to the floor shower element for direct tiling with integrated, horizontal, standard-compliant drain. The floor element is supplied sealed ready for installation.

The shower element fulfils all relevant standards and offers an overall installation height of 90 mm.

Features and benefits:

The drain has been tested by TÜV Rheinland and fulfils all of the requirements of DIN EN 1253.
Drain capacity of 0.8 L per second.
50 mm water trap height.
At least 1.5% even preformed gradient.
100% waterproof material.
Suitable for all tile sizes.
Alongside the stainless steel cover included, wedi Fundo Fino designer grates can also be used.
Assured reliability due to the drain technology integrated into the waterproof blue extruded polystyrene (XPS) core.
Complies with all common standards and guidelines (DIN EN 1253 and EN 12056).
A+ rating in relation to Emissions Dans L'air Interieur.

– Fundo Integro (can be shortened on-site, but the geometry of the elements must be maintained):

Wheelchair load-bearing from minimum tile size: 50 x 50 mm.
Glass mosaic (thickness: 3 mm) from minimum size: 20 x 20 mm.
Minimum installation height: 90 mm.

General information

Color	Grey
Finish	Unfinished
Material	Extruded polystyrene (XPS)
Shape	Rectangle
Length	900 mm 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm Show more
Width	900 mm 1000 mm 1200 mm
Height	90 mm
Warranty description	Ten year

Uniclass	Pr_40_20_06_84 Shower traysPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Shower Systems / Shower Tray Formers

Specification data - Shower trays

Materials	-
Body	Extruded polystyrene (XPS).
Finish and colour	Extruded polystyrene (XPS).
Size	900 × 900 mm.
Waste hole	Centre.
Integral accessories	None. Building board. Guidance for specification option: Various options available, consult literature and insert requirements. Moltoromo. Nonstep Pro new. Guidance for specification option: Various options available, consult literature and insert requirements. Point drainage. Guidance for specification option: Various options available, consult literature and insert requirements. wedi 320 tile adhesive. wedi 520 – Sealant. wedi 610 – adhesive sealant. wedi building board XL. Guidance for specification option: Various options available, consult literature and insert requirements. wedi building board XXL. Guidance for specification option: Various options available, consult literature and insert requirements. wedi Fundo sealing set. wedi Tools joint reinforcement tape. wedi tools sealing tape.

CompressiveStrength	To EN 1606, 0.08 N/mm². Guidance for specification option: Long-term compressive strength (50 years)
Compressive strength (minimum) at 10% compression	To EN 826, 0.25 N/mm².
ThermalConductivity	To EN 13164, 0.036 W/mK.
Density	To EN 1602, 32 kg/m³.
Temperature limiter	-50°C to +75°C.
Fire performance	To EN 13501-1, Class E.
Waterproofing	Tested to 1.5 bar.
